Steps

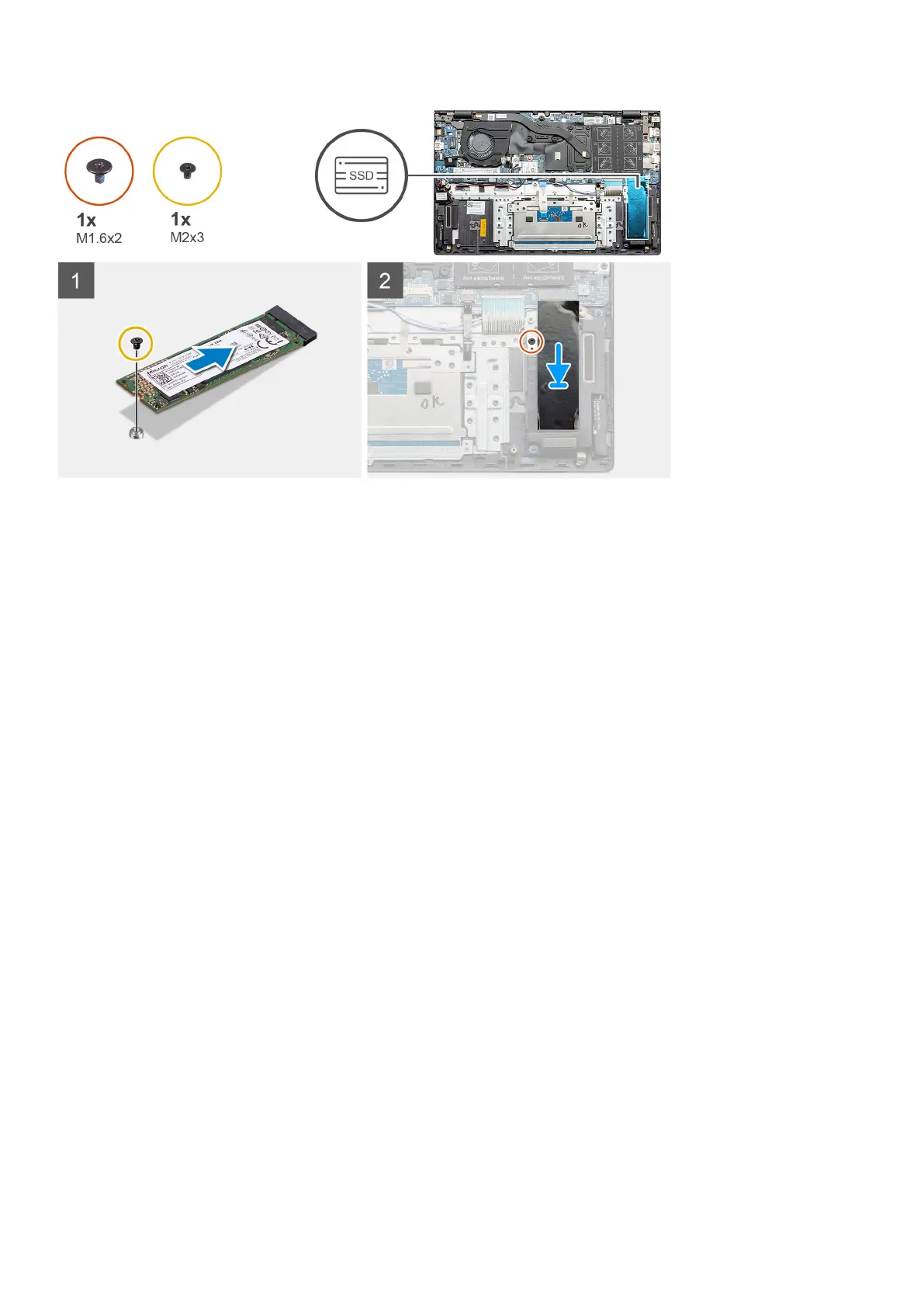

1. Align the solid-state drive bracket to accommodate the M.2 2280 solid-state drive.
2. Replace the single screw (M2x3) that secures the solid-state drive module to the palm-rest and keyboard assembly.
3. Place the solid-state drive module bracket.
4. Replace the single (M1.6x2) screw to secure the solid-state drive bracket to the palm-rest and keyboard assembly.
Next steps
1. Connect the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers (in 3-cell battery configuration)
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The figure indicates the location of the speakers in a system configuration with 3-cell battery and provides a visual
representation of the removal procedure.
