Steps
1. Remove the single screw (M2x3) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive - UMA
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

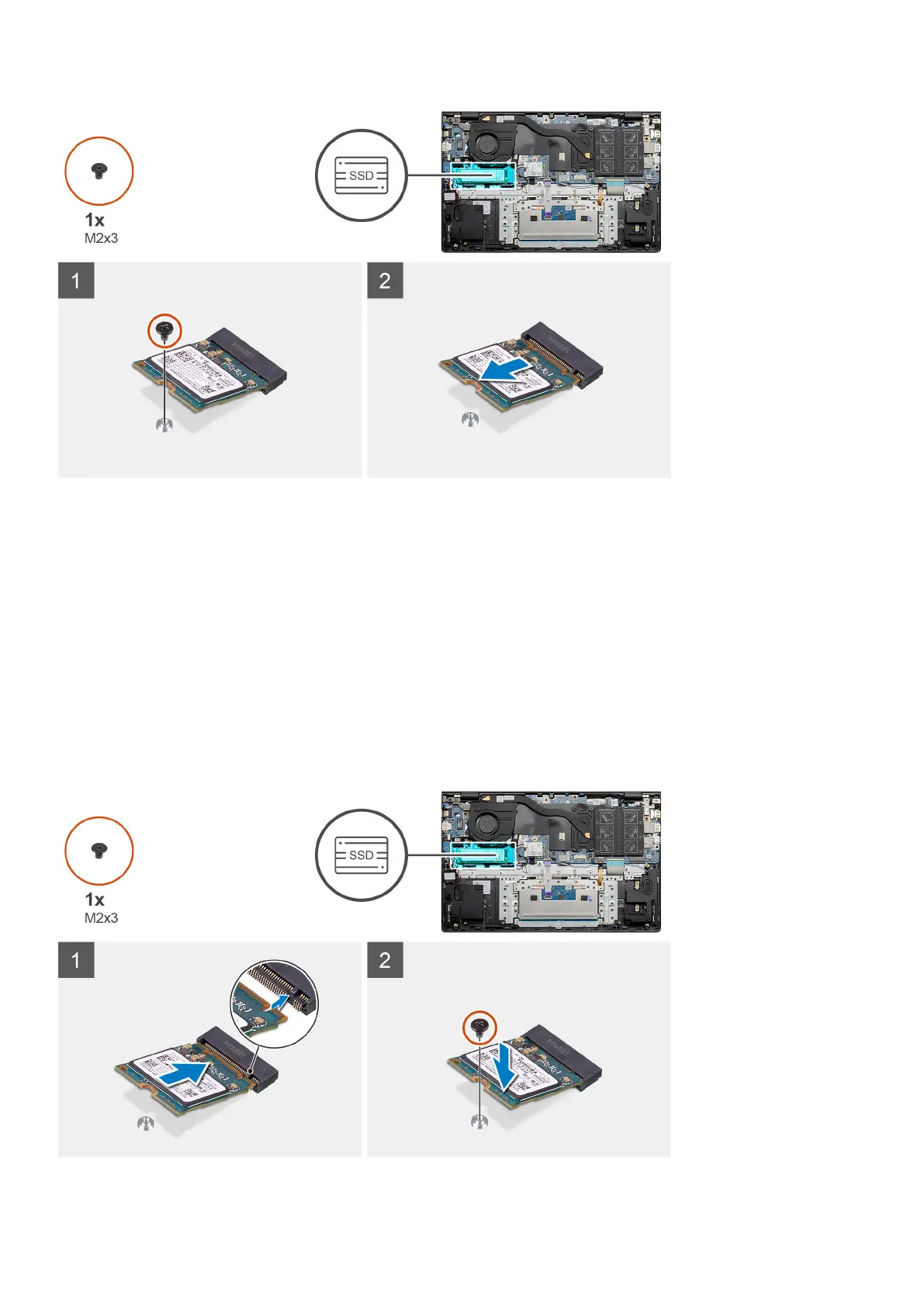

The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment
procedure to accommodate the M.2 2230 solid-state drive.
