Dell Vostro 5401 - Replacing the SSD-1 Support Bracket

Steps
1. Align the solid-state drive bracket to accommodate the M.2 2230 solid-state drive.
2. Replace the single (M2x3) screw to secure the solid-state drive module to the palm-rest and keyboard assembly.
Next steps
1. Connect the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Replacing the SSD-1 support bracket
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the battery - UMA or discrete.
4. Remove the UMA (M.2 2230 SSD or M.2 2280 SSD) or discrete (M.2 2230 SSD or M.2 2280 SSD).
About this task

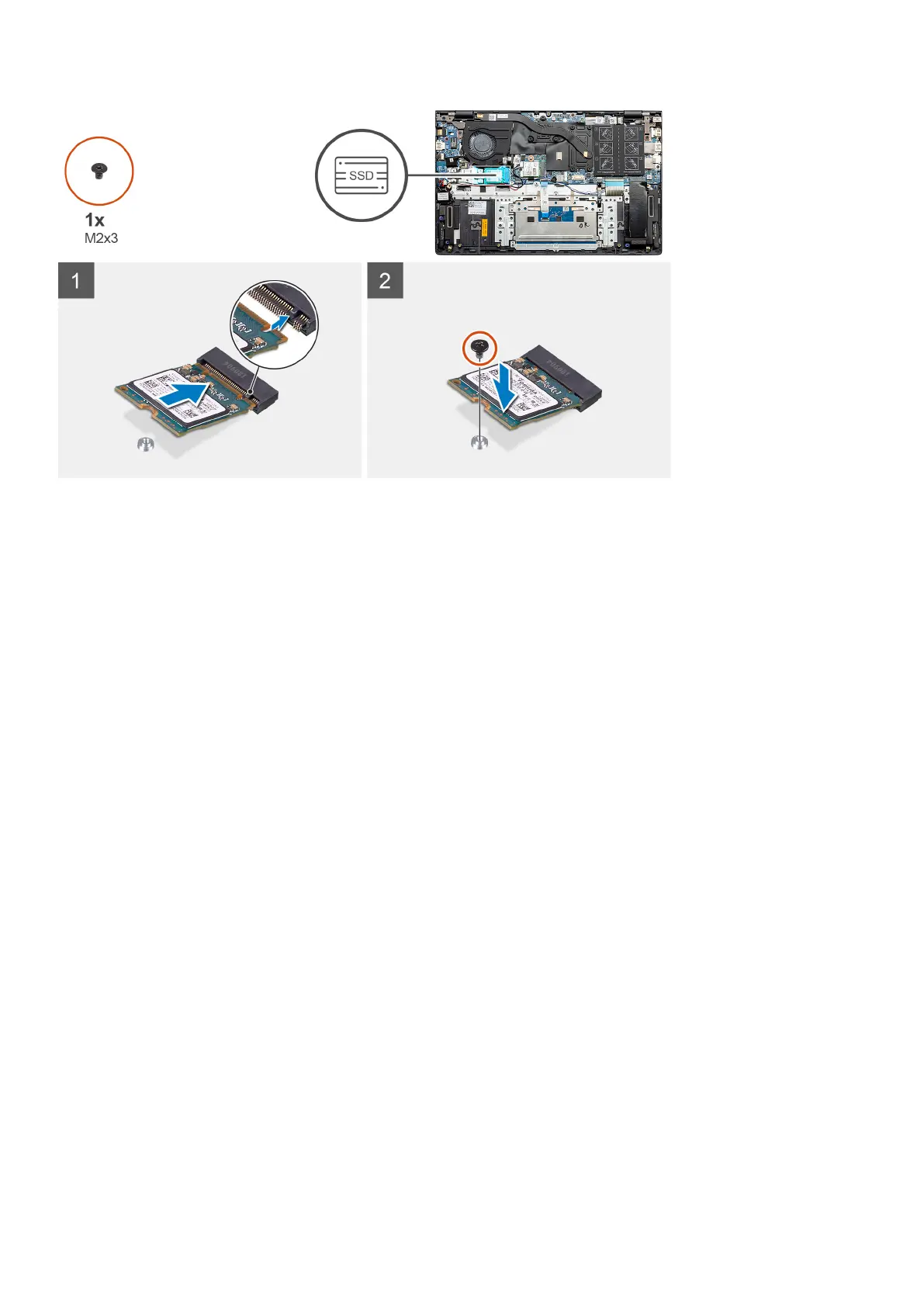

The figure provides a visual representation of the replace procedure.
Disassembly and reassembly
