About this task

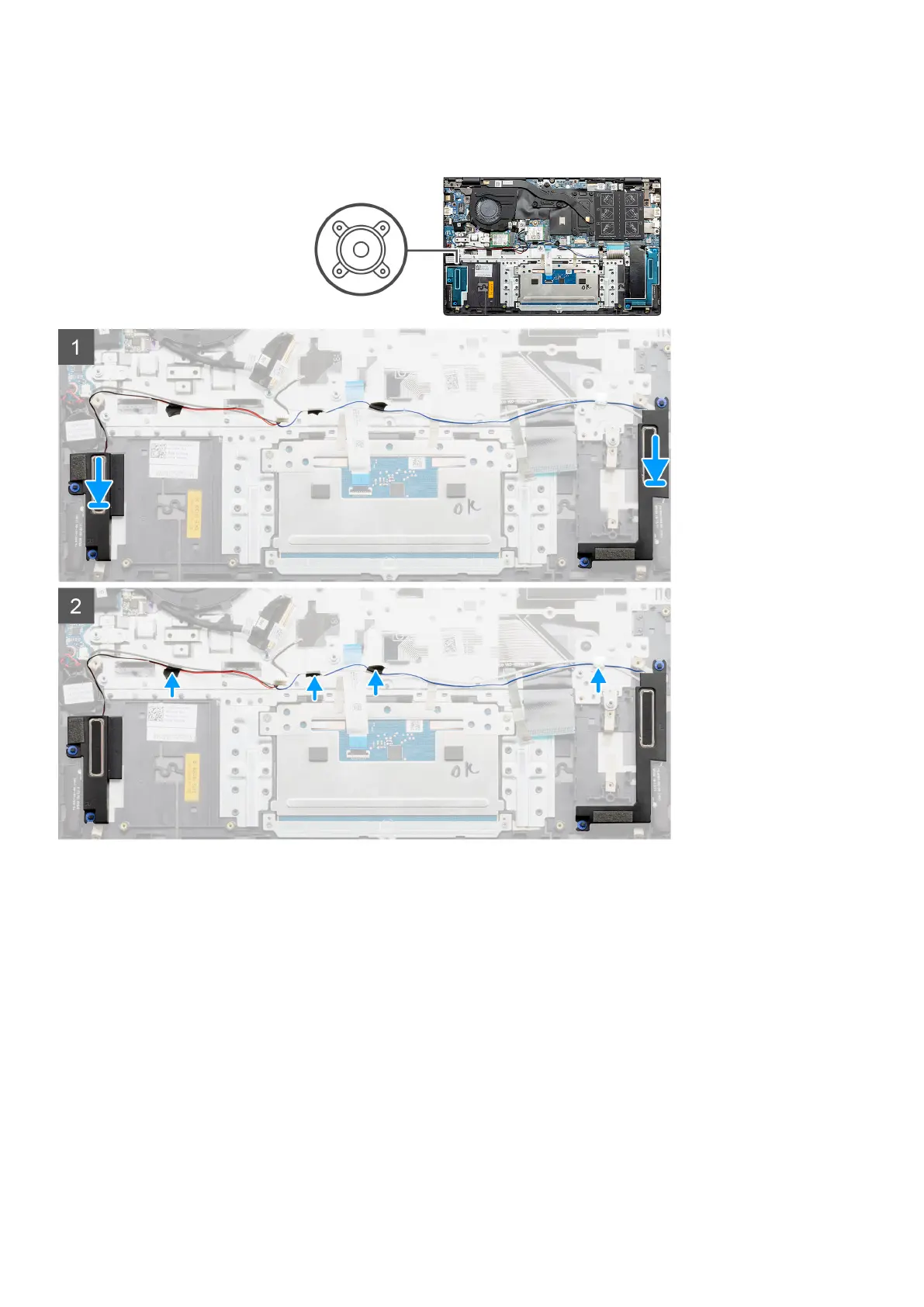

The figure indicates the location of the speakers in a system configuration with 4-cell battery and provides a visual
representation of the installation procedure.
Steps
1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the system board.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
44
Disassembly and reassembly
