5. Remove the M.2 2280 solid-state drive.
6. Remove the M.2 2230 solid-state drive.
7. Remove the WLAN card.
8. Remove the system fan.
9. Remove the heat sink.
10. Remove the memory module.
11. Remove the display assembly.
About this task

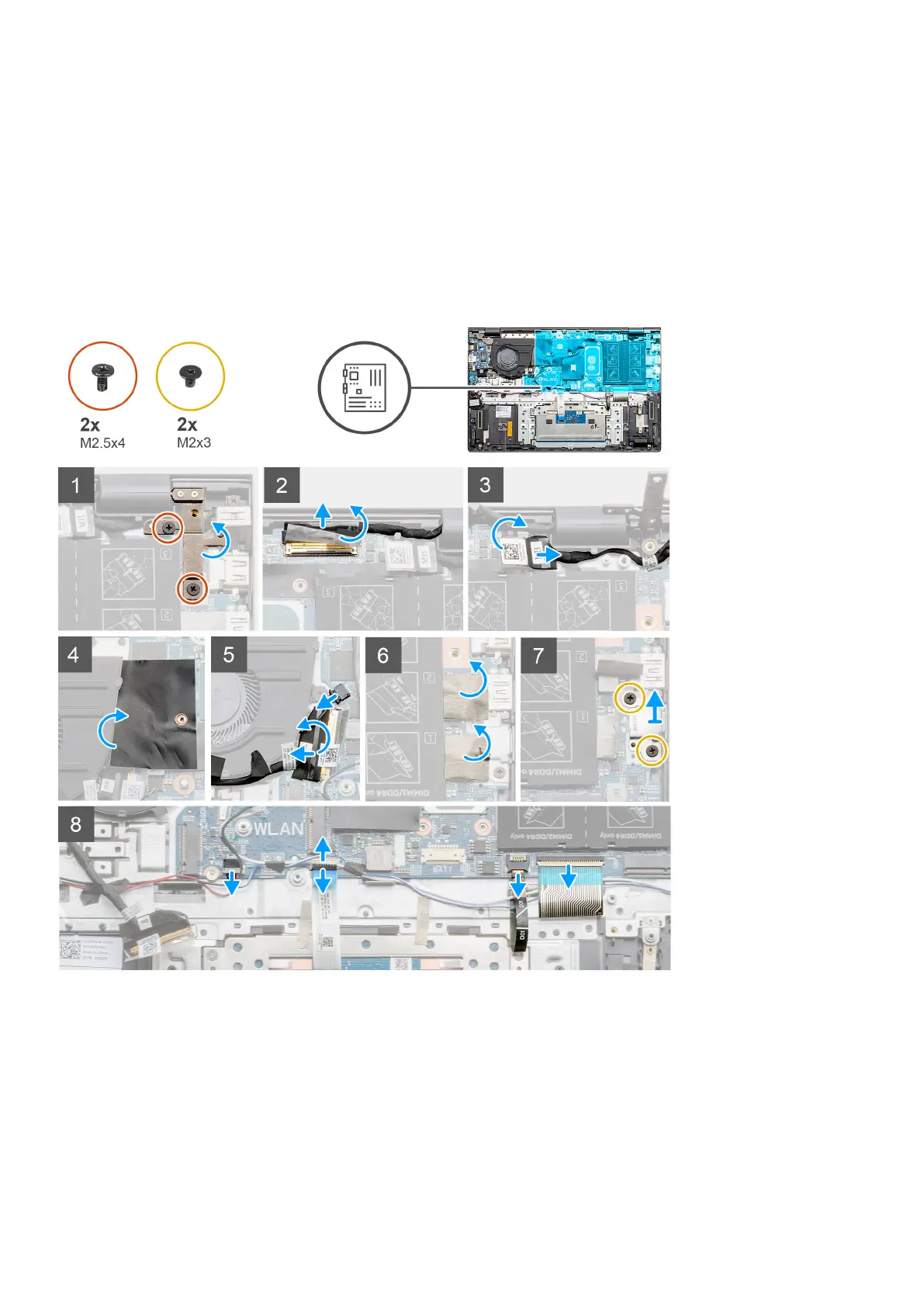

The figure indicates the location of the system board and provides a visual representation of the removal procedure.
