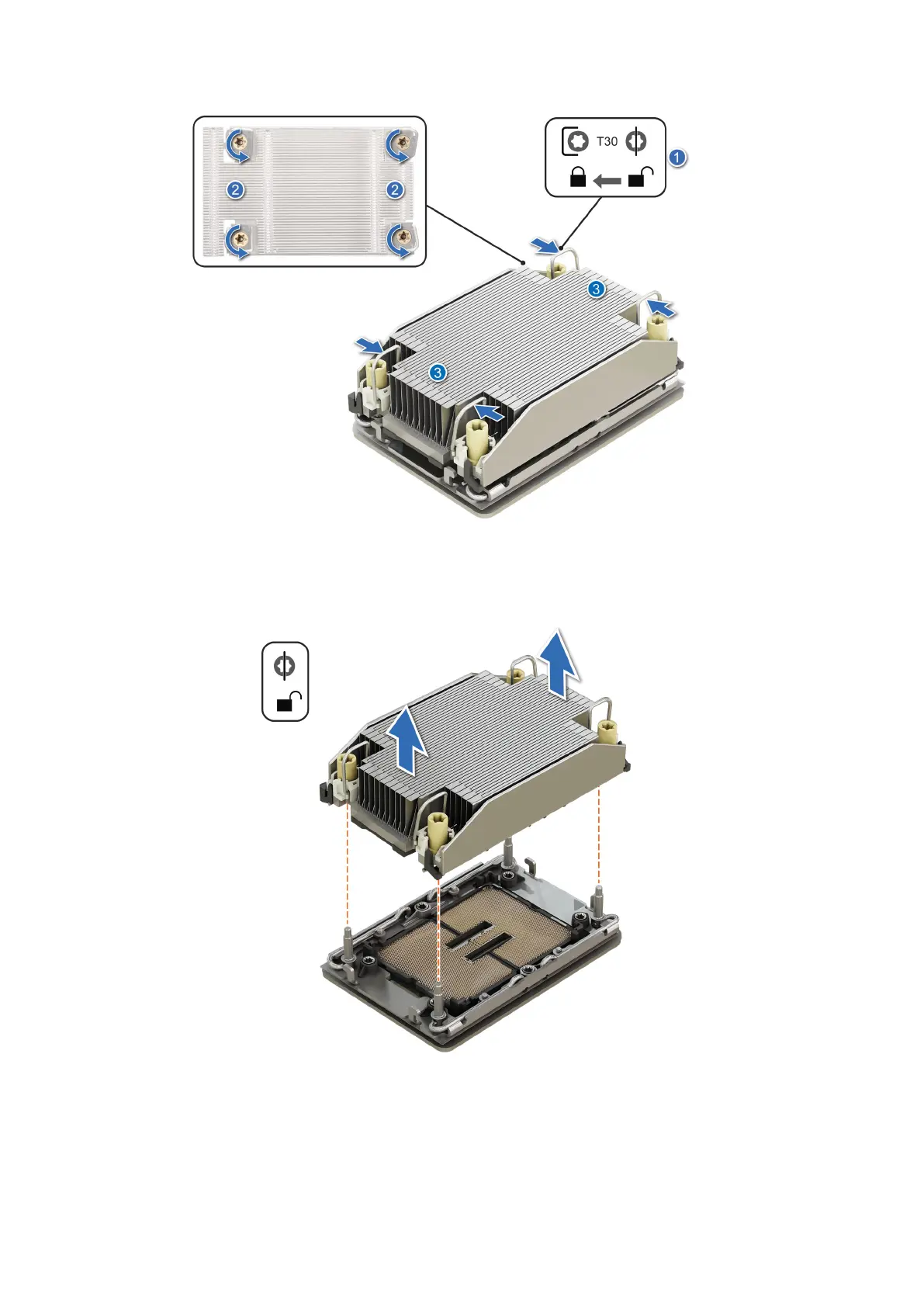

Figure 76. Removing the processor heat sink module
3. Lift the PHM from the system and set the PHM aside with the processor side facing up.
Figure 77. Removing a heat sink
Installing and removing system components
101
