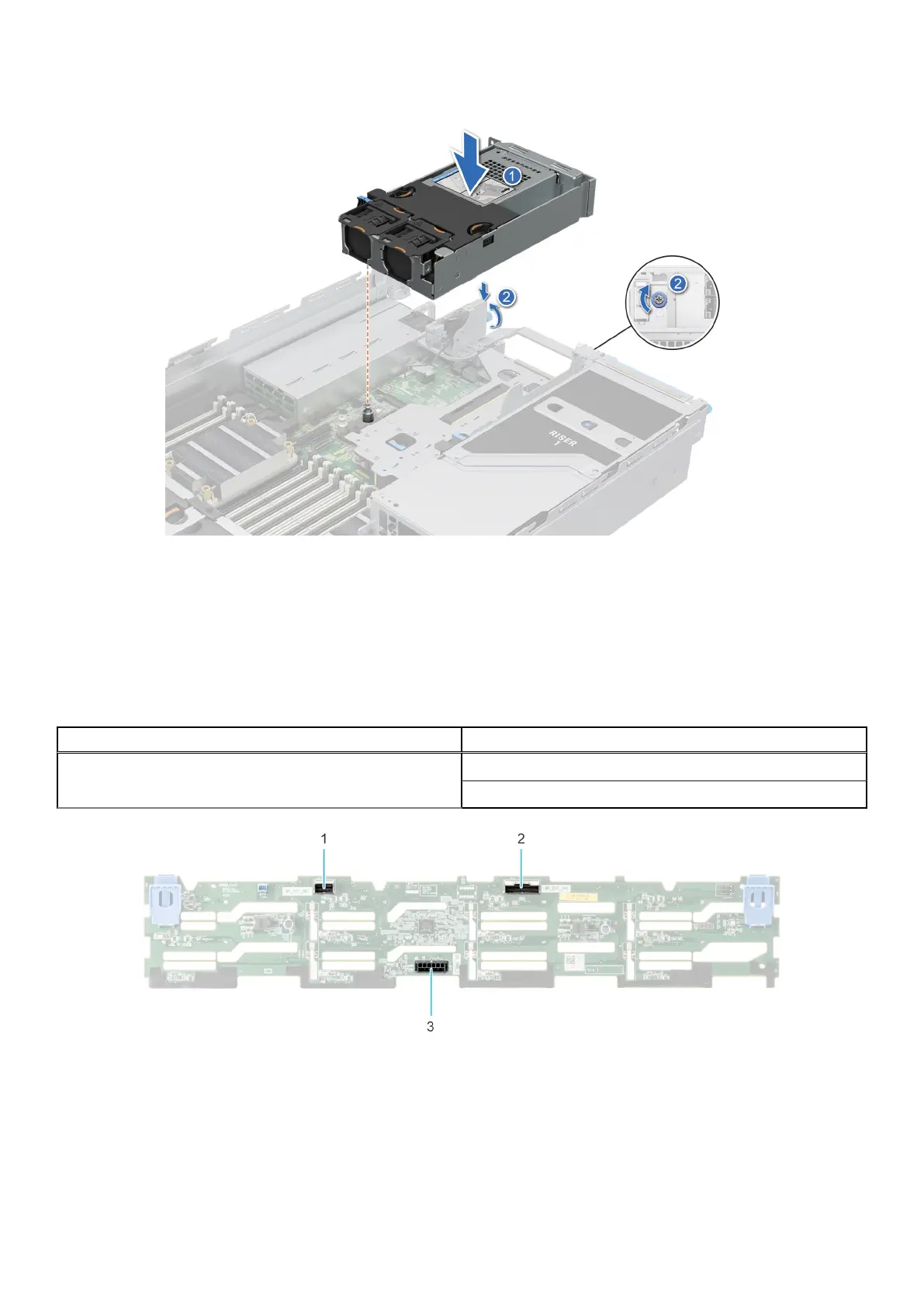

Figure 48. Installing the 2 x 2.5-inch rear drive module
Drive backplane
Depending on your system configuration, the drive backplanes that are supported are listed here:
Table 35. Supported backplane options
System Supported hard drives options
XC Core XC760
3.5-inch (x 12) SAS or SATA backplane
2.5-inch (x 24) SAS, SATA, or NVMe backplane
Figure 49. 12 x 3.5-inch drive backplane
1. BP_DST_SB1
2. BP_DST_SA1
3. BP_PWR_1 (backplane power and signal cable to system board)
76
Installing and removing system components
