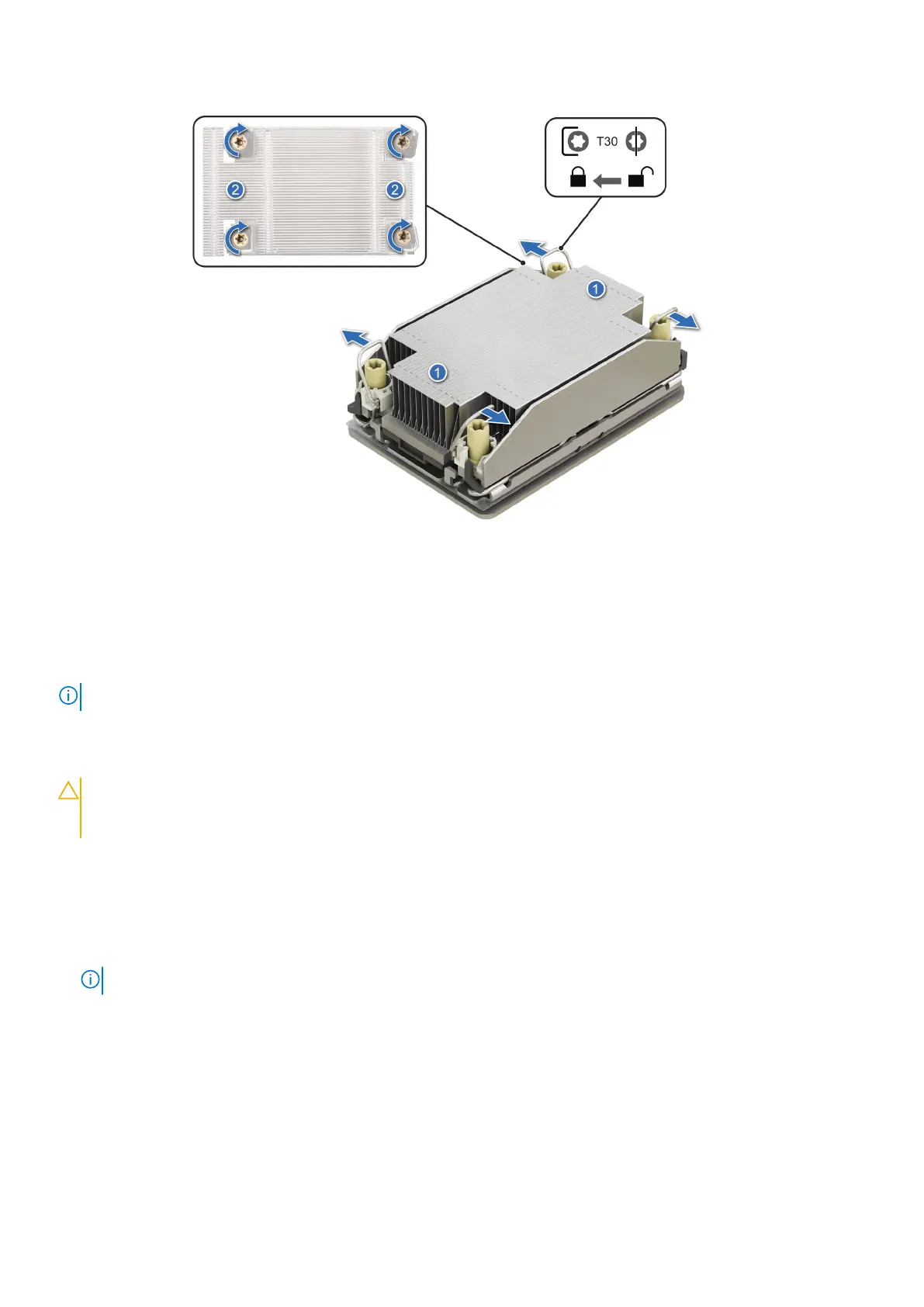

Figure 88. Set the anti-tilt wires to the locked position and tightening the nuts
Removing the processor
Prerequisites
NOTE: Removing the Xenon Max processor from DLC module is the same as processor and heat sink module (PHM).
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud or remove the GPU air shroud.
CAUTION:
You may find the CMOS battery loss or CMOS checksum error that is displayed during the first
instance of powering on the system after the processor or system board replacement which is expected. To fix
this, go to setup option to configure the system settings.
Steps
1. Place the DLC module with the processor side facing up.
2. Using your thumb, lift the thermal interface material (TIM) break lever to release the processor from the TIM and retaining
clip.
3. Holding the processor by the edges, lift the processor away from the retaining clip.
NOTE: Ensure to hold the retaining clip to the heat sink as you lift the TIM break lever.
Installing and removing system components 109
