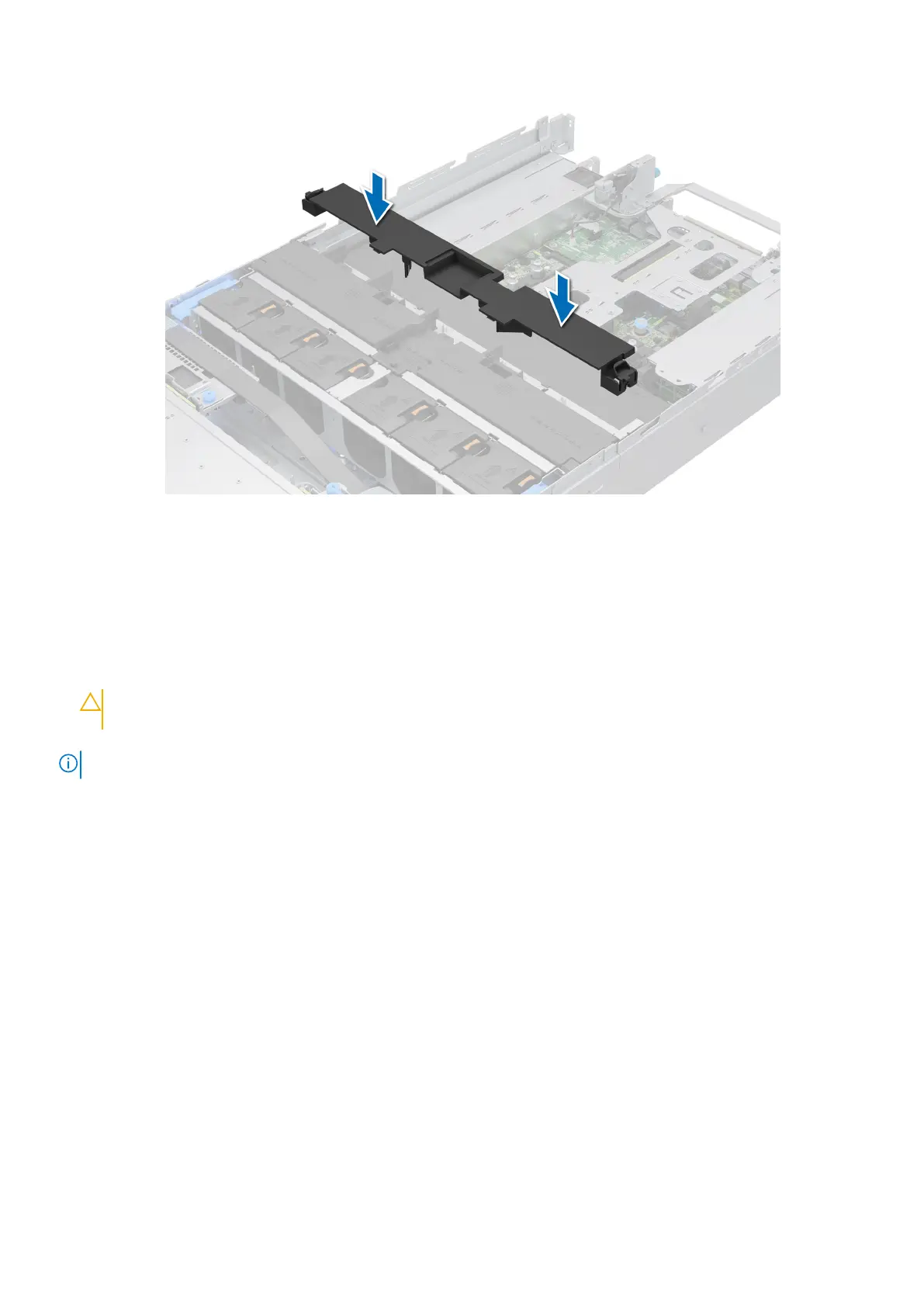

Figure 28. Installing the GPU air shroud top cover
Removing the GPU air shroud filler
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
CAUTION:
Never operate your system with the air shroud removed. The system may get overheated quickly,
resulting in shutdown of the system and loss of data.
3. Remove the GPU air shroud top cover.
NOTE: The GPU air shroud filler must be removed to avoid interference with full length double-width GPU card installation.
Steps
Hold and lift the filler from the GPU air shroud.
Installing and removing system components
57
