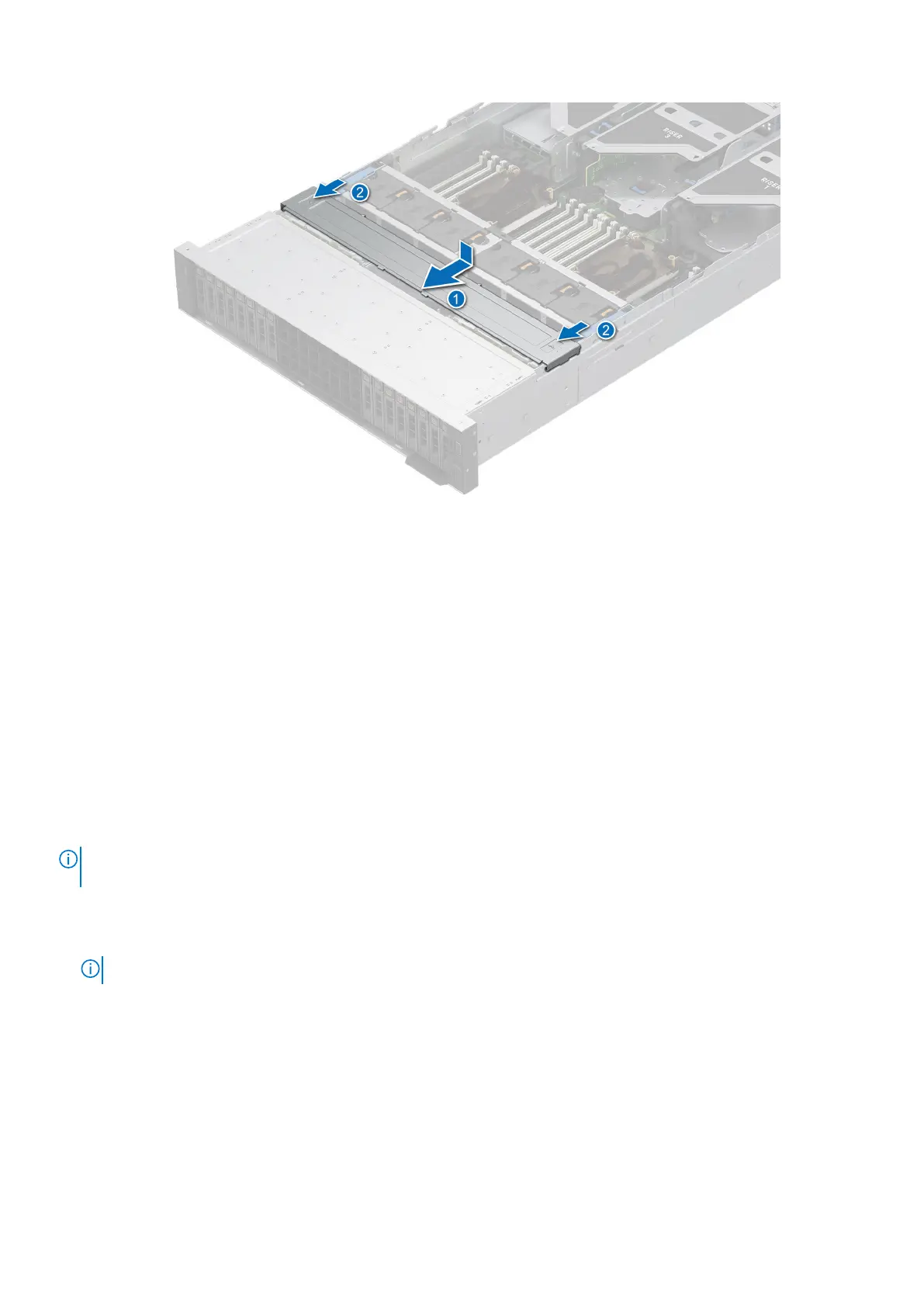

Figure 54. Installing the drive backplane cover
Side wall brackets
Removing the side wall bracket
There are two side wall brackets on either side of the system. The procedure to remove is similar.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If required, remove the drive backplane cover.
4. If installed, remove the air shroud or remove the GPU air shroud.
5. Remove the cooling fan cage assembly.
NOTE:
Ensure that you note the routing of the cables as you remove them from the system board. Route the cables
properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1. Press the blue side tabs to release the side wall cable holder.
NOTE: Move the cables out of the side wall cable holder.
2. Press the center tab to release the bracket from the chassis, and lift it away from the system.
Installing and removing system components
79
