Dell XC Core XC760

Dell XC Core XC760 overview
The XC760 is a 2U server that supports:
● Up to two fourth-generation Intel Xeon scalable processors, with up to 56 cores
● Thirty-two DIMM slots
● Two redundant AC or DC power supply units
● The following hard drive configurations:
○ Four 2.5-inch (rear) SAS, SATA
○ Twelve 3.5-inch SAS or SATA drives
○ Twenty-four 2.5-inch drives
Do not install GPUs, network cards, or other PCIe devices on your system that Dell Technologies has not tested or validated.
CAUTION: The use of unauthorized or unapproved hardware can damage your system and invalidate the system
warranty.
In this document, drives refers to all instances of SAS and SATA drives unless specified otherwise.
Topics:
• Front view of the system
• Rear view of the system
• Inside the system
• Locating the Express Service Code and Service Tag
• System information labels
• Rail sizing and rack compatibility matrix
Front view of the system
This section provides an overview of the front of the XC760 system.

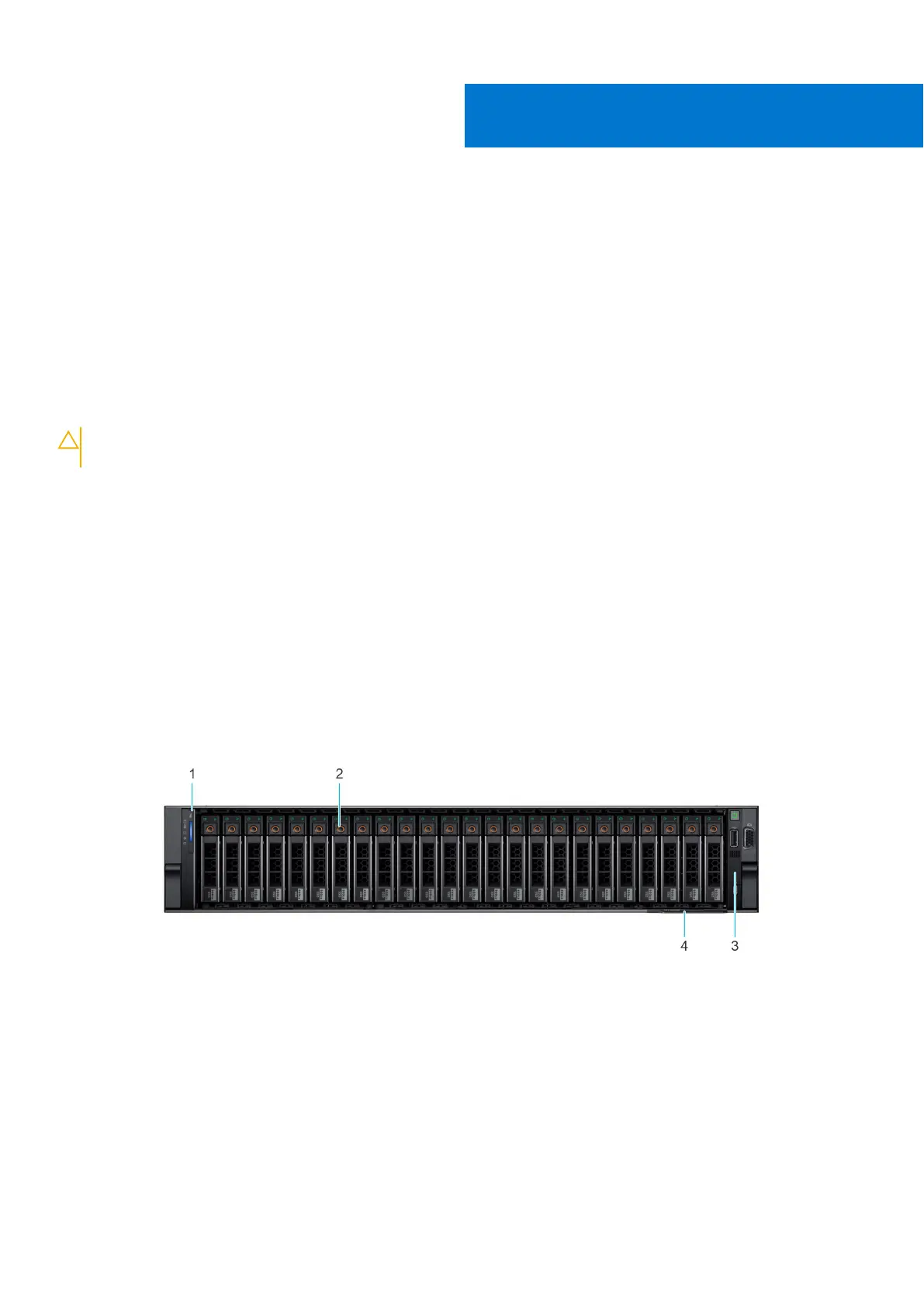

Figure 1. Front view of 24 x 2.5-inch drive system
2
8 Dell XC Core XC760 overview
