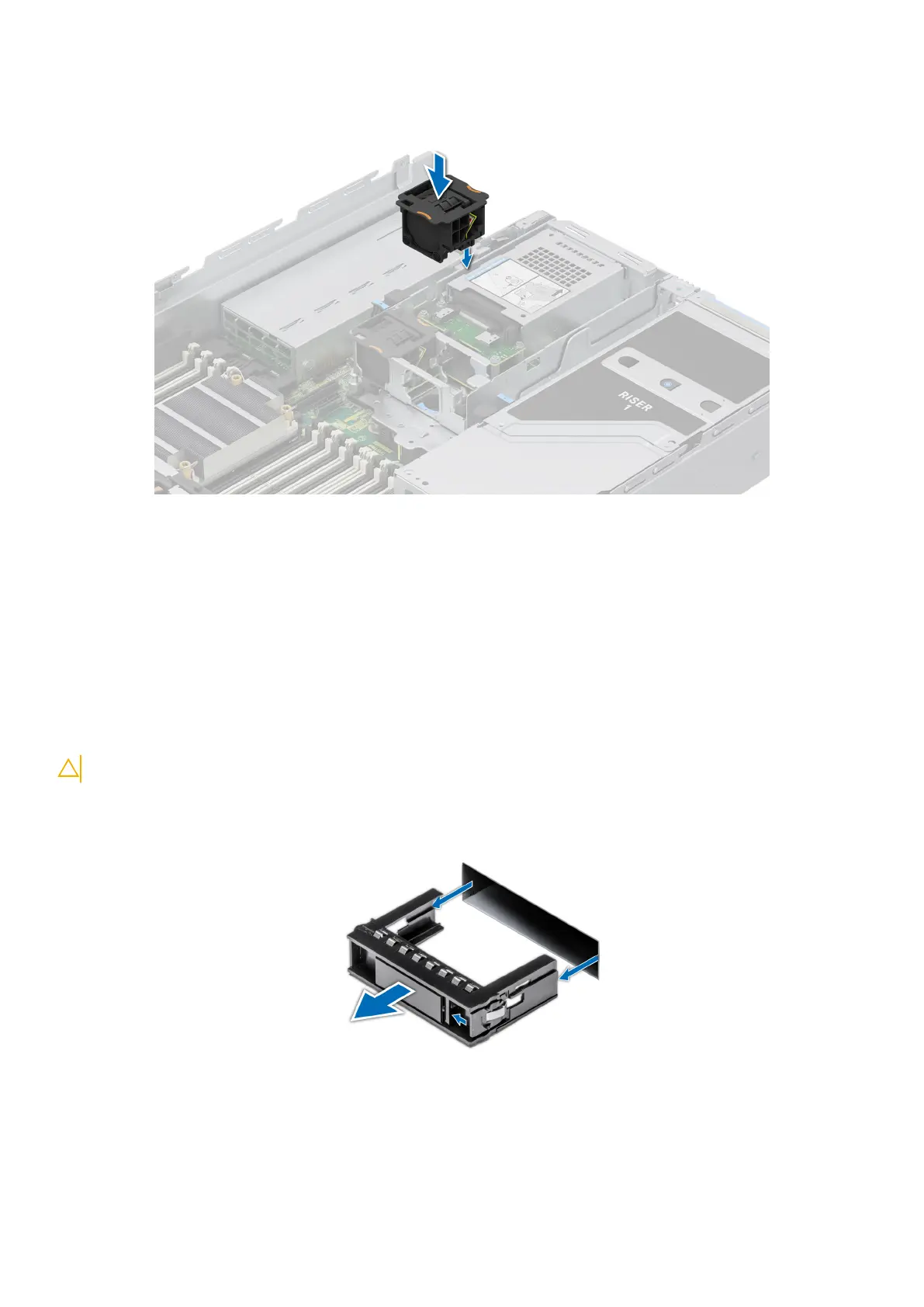

Figure 40. Installing a 2 x 2.5-inch rear drive module cooling fan
Drives
Removing a drive blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If installed, remove the front bezel.
CAUTION: To maintain proper system cooling, drive blanks must be installed in all empty drive slots.
Steps
Press the release button, and slide the drive blank out of the drive slot.
Figure 41. Removing a drive blank
Installing and removing system components
69
