NOTE: Full length risers are supported only in Riser 1 and Riser 4 slot. Install Riser 4 first and then Riser 1.
Steps
1. If installed, remove the riser blanks by loosening the captive screws.
NOTE: Store the Riser blanks for future use. Filler brackets must be installed in empty expansion card slots to maintain
Federal Communications Commission (FCC) certification of the system. The brackets also keep dust and dirt out of the
system and aid in proper cooling and airflow inside the system.

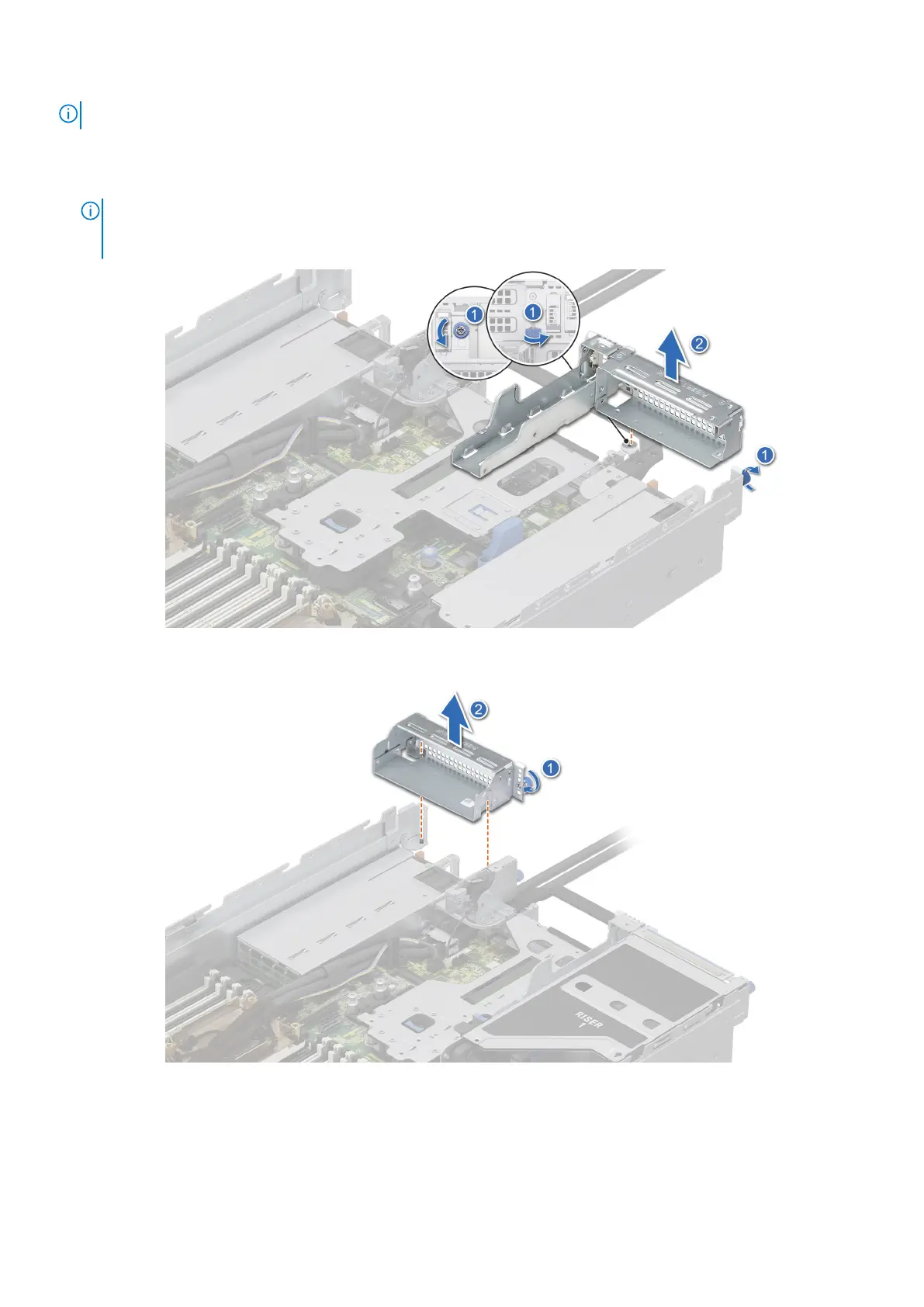

Figure 136. Removing the Riser 1 blank
Figure 137. Removing the Riser 4 blank
2. To install the full length expansion card risers:
a. For Riser 4 connect the GPU power cable to the connector PWR2_B and signal cable to the connector PSU2_SIG on the
system board.
148
Installing and removing system components
