Delta Elektronika PSC-232 module User Manual

4 Accessories supplied with the PSC
PSC SERIES DELTA ELEKTRONIKA BV
May 2008 MANUAL page 4
5 Dimensions
PSC-488 module and PSC-232 module:
89 x 85.5 x 118 mm, 0.8 kg
Enclosure: IP20
6 Specifications
6.1 Power
Range: 98-264 VAC 48-62 Hz
for DC-voltage contact factory
Power consumption: 10 W
Hold-up time: 300 ms, Vin = 230 VAC
80 ms, Vin = 110 VAC
6.2 EMC
Emission : EN 61000-6-3
EN 55022 B
Immunity : EN 61000-6-2
6.3 Isolation
Analog/logic in/outputs to case : 1000 V DC
GPIB or RS232 to case : 1000 V DC
Line input to case : 2500 V AC

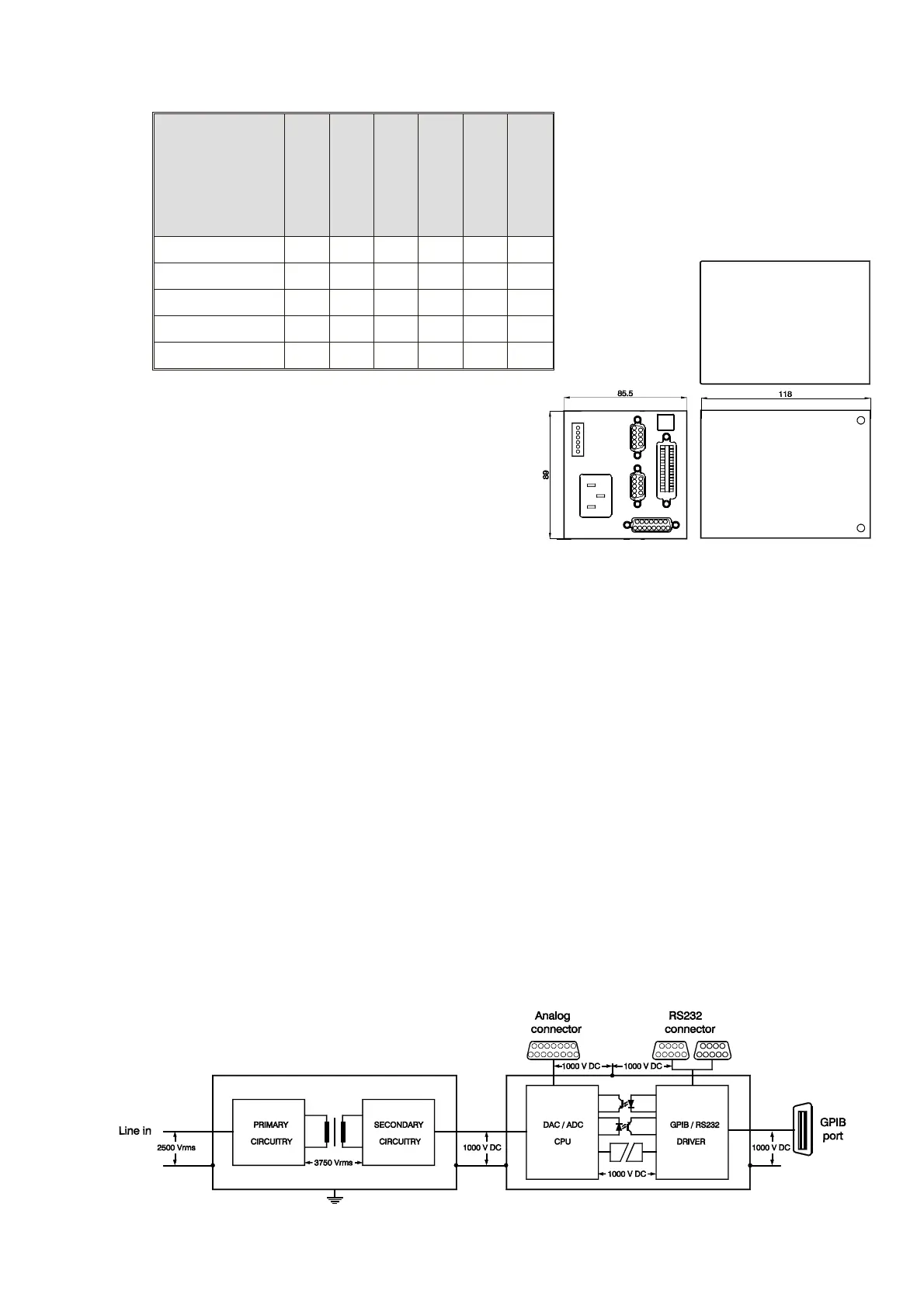

Dimensions PSC-232 and PSC-488 modules
Isolation schematic diagram
seirosseccA
232-CSPeludom
232-CSP 232-CSP641P
232-CSP841P
884-CSPeludom
884-CSP
RS232 cable
••••••*
Analog cable
••
Line cord
••
Rail Mounting clip
••
CD ROM
••••••
* = except in combination with SM3000 (Option P164)
6.4 Ambient temperature
Operating: 0 to 55 °C (Ext model)
Storage: -20 to +70 °C
6.5 Analog outputs
The analog outputs can be individually set on
0-5 V The settings can be reported.
Calibration is by software. Settings can be
saved in non-volatile memory. Analog in- and
outputs have a common zero
• 2 analog outputs with buffered 14 bit D AC
• Output range 0 to 5 V
• Full scale software adjustment > 200 mV
• Offset software adjustment > 200 mV
• Resolution 0.33 mV / 5 V output
• Linearity error 1 LSB
• TC typical 30 ppm / °C
