Chapter 9
E
ther
n
et
Specif
ication and Operation
9
-
59
9_

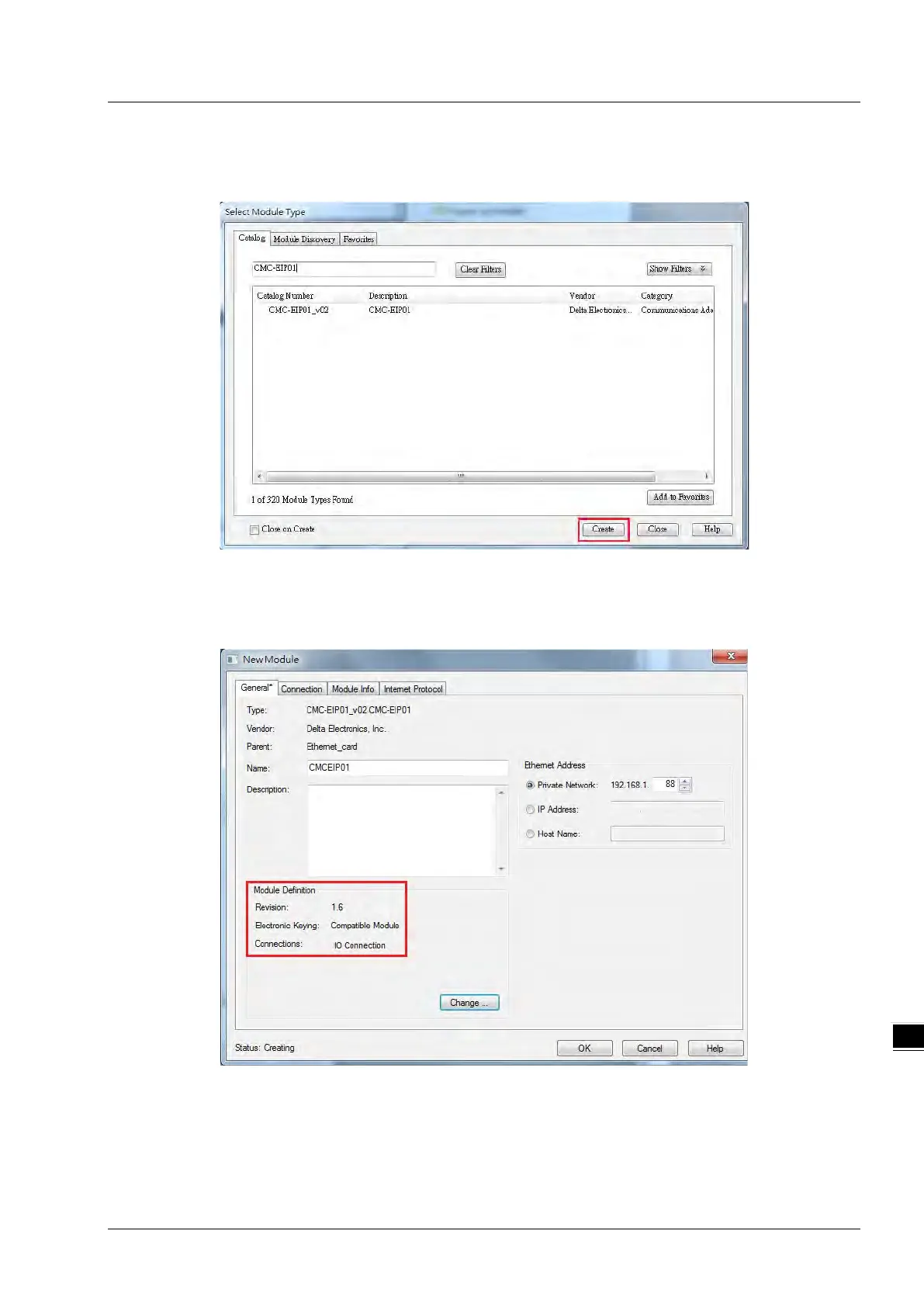

Type the module number of th
e imported Delt
a EDS file in th
e filter field,
click the Delt
a module, an
d then click
Create
.
Verify that the product name
and IP address are the sam
e as the informat
ion sho
wn in the
Module D
efinit
ion
section.
