AS Series Operation Manual
2-39
_2
Digital-to-Analog
Conversion
Current Output
Rated Output Range
0–20 mA
4–20 mA
Conversion Range
K0
~
K32000
K0
~
K32000
Hardware Output Range
-0.2 mA to 20.2 mA
3.8–20.2 mA
Error Range
(Room Temperature)
±0.2%
Error Range
(Full Temperature Range)
±0.5%
Linearity Error
(Room Temperature)
±0.03%
Linearity Error
(Full Temperature Range)
±0.10%
Hardware Resolution
12 bits
Permissible Load
Impedance
≦550 Ω

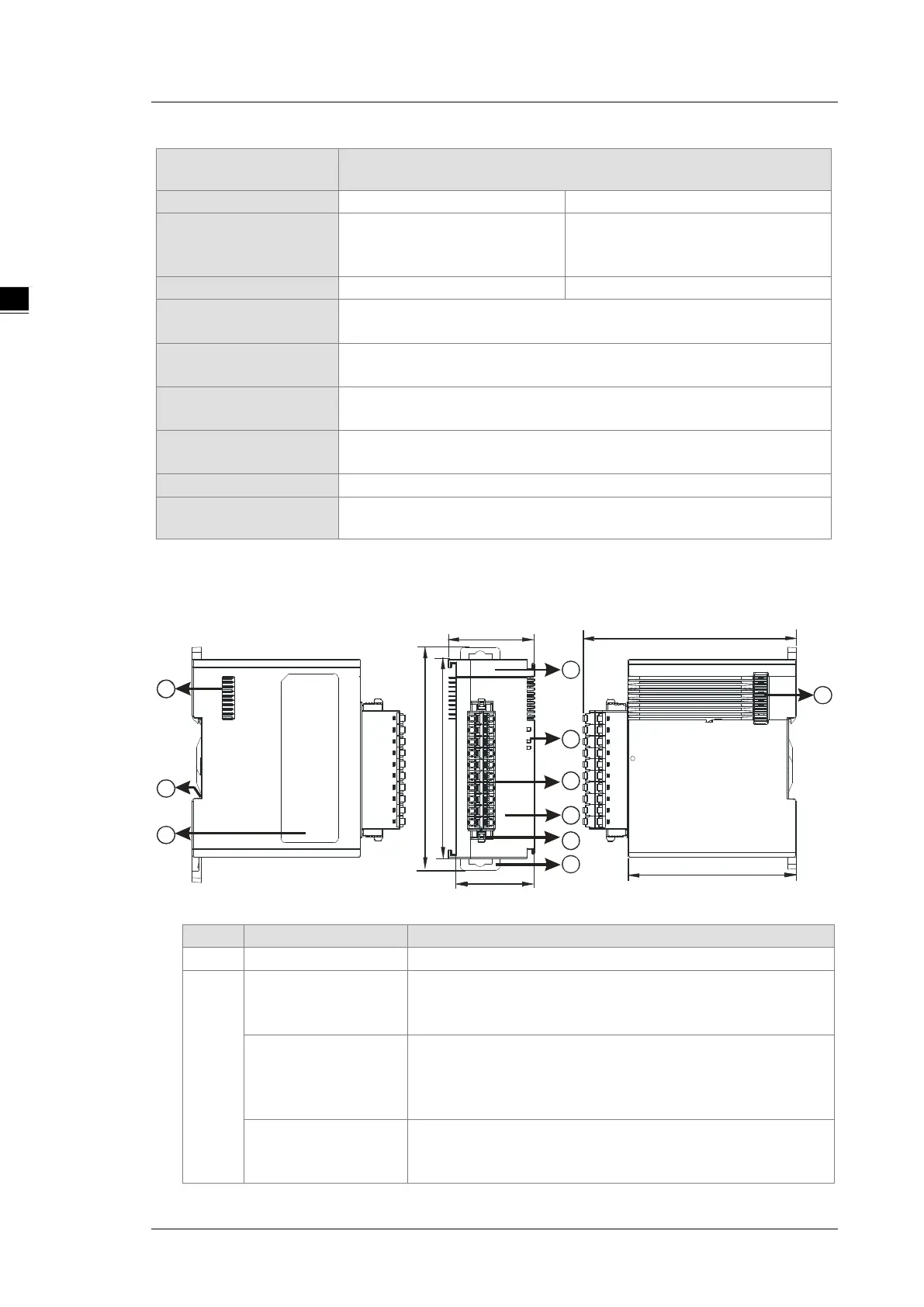

2.4.2 Analog Input/Output Module Profiles
 AS04AD-A/AS08AD-B/AS08AD-C/AS04DA-A/AS06XA-A
38.2 95
75
35
88
98.3
-
-
1
4
5
2
3
6
7
8
9
7
Unit: mm
Number
Name
Description
1 Model name Model name of the module
2
POWER LED indicator
Indicates the status of the power supply
ON: the power is on
OFF: no power
ERROR LED indicator
Error status of the module
ON: a serious error occurs in the module.
OFF: the module is normal.
Blinking: a minor error occurs in the module.
Analog-to-digital / digital-
to-analog conversion
indicator
Indicates the conversion status
Blinking: conversion is taking place
OFF: stop conversion
