9.10.6 Configurations
9.10.6.1

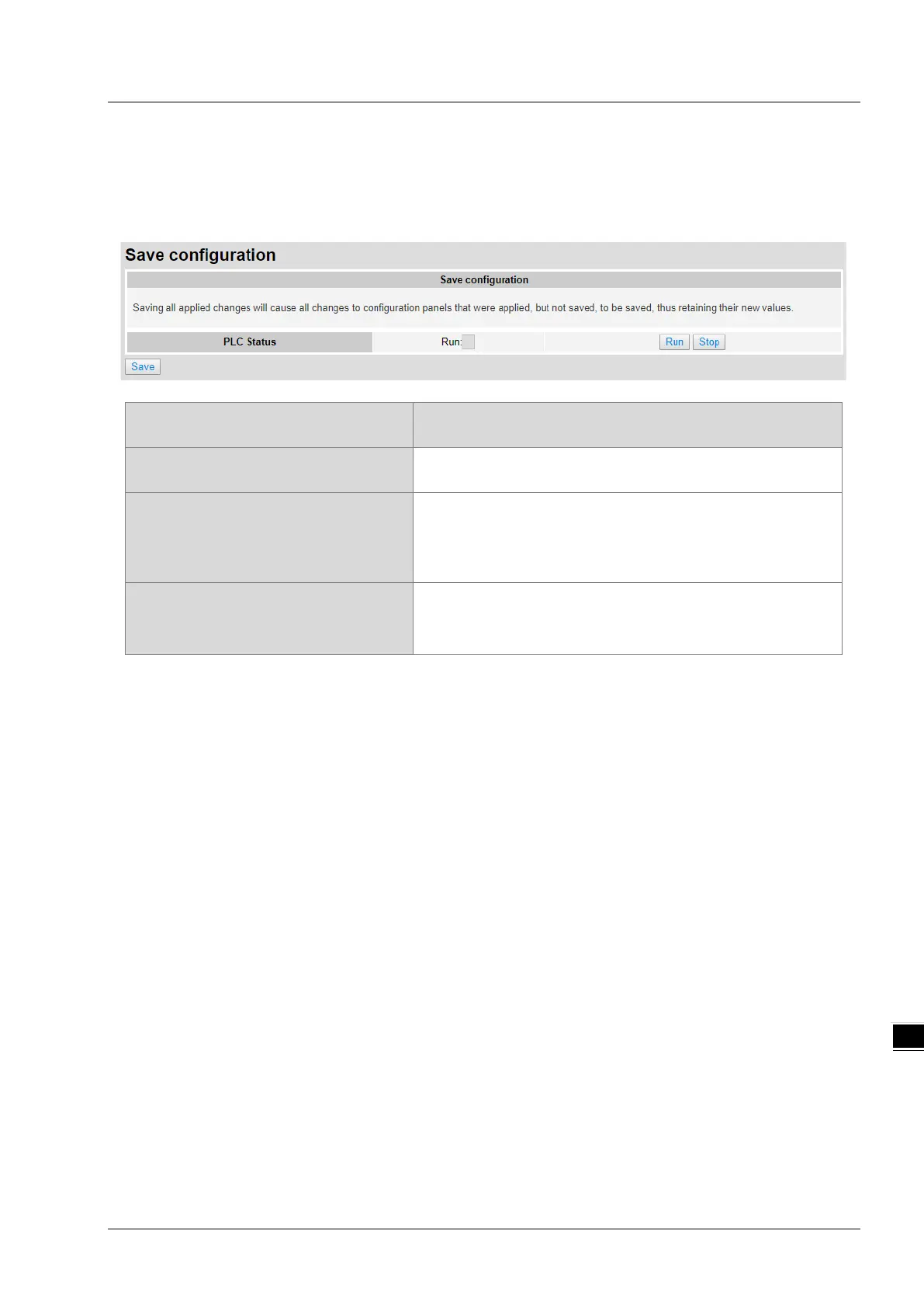

Save Configuration Page
You can save the configurations and download the parameters to your device here.
Item Description
“Save”
Download the saved parameters to the device.
PLC Status
LED of PLC running status; read only
Green light: RUN
LED Not Lit: STOP
“Run” / “Stop”
Click “RUN” to set the running status to RUN
Click “Stop” to set the running status to STOP
Note: The data monitor table must be downloaded to the device. If not, once you log out, close the page or restart the
PLC, all the temporary saved parameters will be cleared.
9.11 Delta EIP Product Application (with OMRON Products)
9.11.1 Architecture
Delta EtherNet/IP Scanner connects to OMRON EtherNet/IP Adapter through Ethernet communication. PC connects to
Delta EtherNet/IP Scanner through Ethernet communication or USB connection.
Software versions for AS300 and OMRON NJ501-1300:
AS300 CPU
ISPSoft: V3.02.25
COMMGR: V1.06.05
HWCONFIG: V3.02.20
EIP Builder: V1.03.01
OMRON NJ501-1300:
Sysmac Studio : V1.15
Network Configurator : V3.59c
