Chapter 9 Ethernet Specification and Operation
9-109
Item Description
32bit Signed decimal: K+ Number
32bit Unsigned decimal: K+ Number
32bit Hexadecimal: H + hex Number
32bit Octal: O + octal Number
32bit Binary: B + binary Number
32bit Float: float Number
64bit Double: float Number
“On” / ”Off”
“ON”: the status of Bit is ON.
“OFF”: the status of Bit is OFF.
If the authority level for the logged in user is READ, this
column is read only.
Set Value
Change the value for the device to be monitored
Type the value in and click “SET” and the changed value
appears in the VALUE column as the image shown above.
If the authority level for the logged in user is READ, this
column is read only.
“Set”
Click “Set” to confirm the changed value.
If the authority level for the logged in user is READ, this
column is read only.
9.10.5 Diagnostic
You can set diagnostic related configurations here.
9.10.5.1

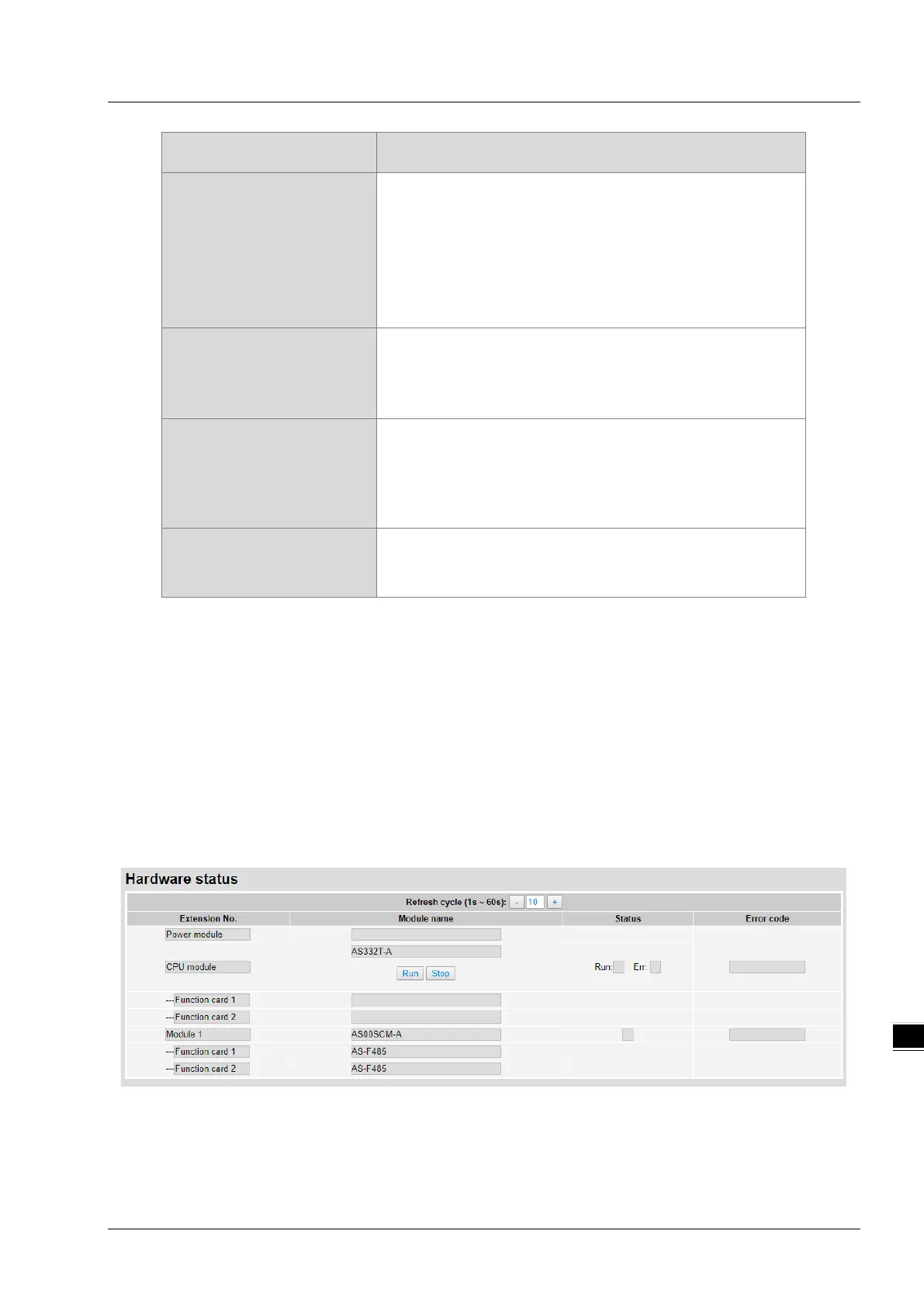

Hardware Status Page
This page displays information on hardware status, CPU module, power module, and function cards. You can set CPU to
run or stop. Here also shows the CPU running status and error codes.
For AS300, the hardware status page looks like below.
