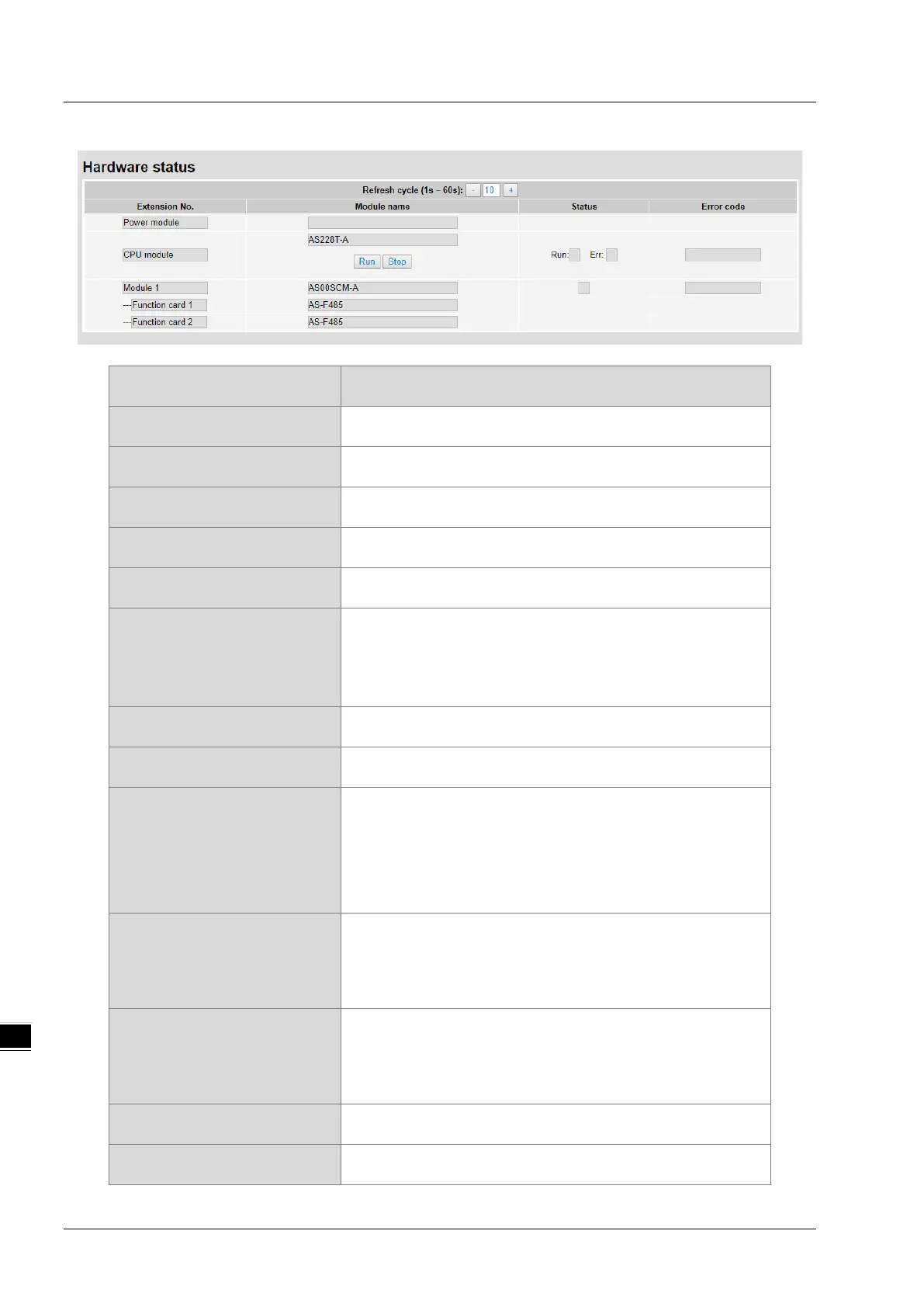

For AS200, the hardware status page looks like below.
Item Description
Refresh cycle
Refresh cycle time; default: 10; unit: second
“-“
Minus; click once to decrease 1; the minimum value is 1
“+“
Plus; click once to increase 1; the maximum value is 60
Power module name
Name of the power module; read only
CPU module name
Name of the CPU module; read only
CPU Run LED
LED of CPU running status; read only
Green light: RUN
LED Not Lit: STOP
CPU Error LED
LED of CPU Error; read only
CPU Error code
Error codes of CPU module; read only
“Run” / “Stop”
Click “RUN” to set the running status to RUN
Click “Stop” to set the running status to STOP
If the authority level for the logged in user is WRITE/READ
or READ, this column is read only.
Function card name
Name of the function card; read only
For communication module, two extra rows for the names
of the communication function cards are shown here
Module name
Name of the module; read only
When the actual placement is not the same as the arrangement
in HWCONFIG, the background of this column will be in red.
Module Error LED
LED of module error; read only
Module Error code
Error codes of module; read only
To Next Page
