Chapter 16 PLC Function ApplicationsC2000 Plus
16-19

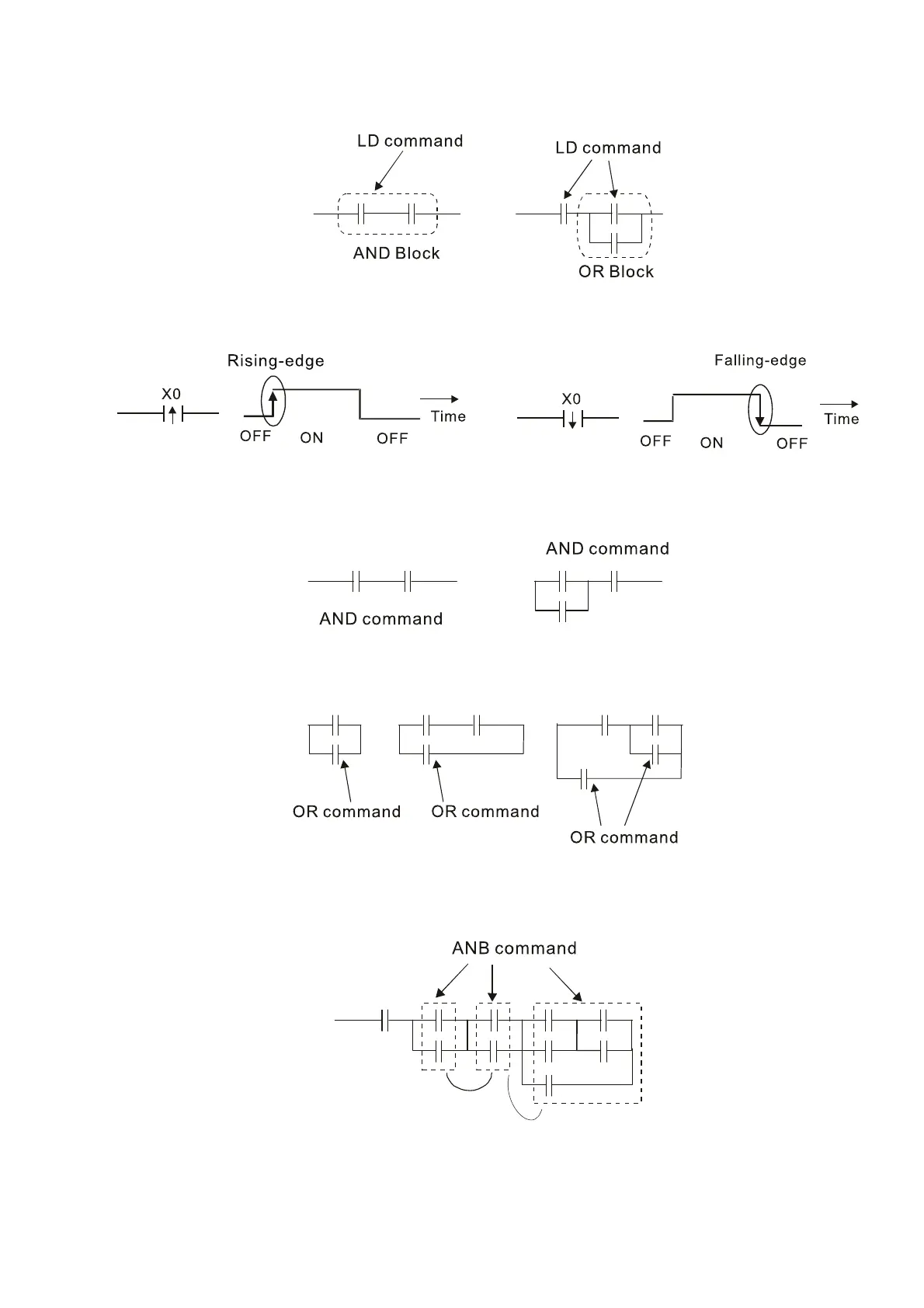

Explanation of basic structure of ladder diagrams
1. LD (LDI) command: An LD or LDI command is given at the start of a block.
LDP and LDF have this command structure, but there are differences in their action state. LDP, LDF
only act at the rising or falling edge of a conducting contact. (see figure below):
2. AND (ANI) command: A series configuration in which a single device is connected with one
device or a block.
ANDP, ANDF also have structures like this, but their action occurs at the rising and falling edge.
3. OR (ORI) command: A single device is connected with one device or a block.
ORP, ORF also have identical structures, but their action occurs at the rising and falling edge.
4. ANB command: A configuration in which one block is in series with one device or block.
