Chapter 8 Option CardsC2000 Plus
8-31

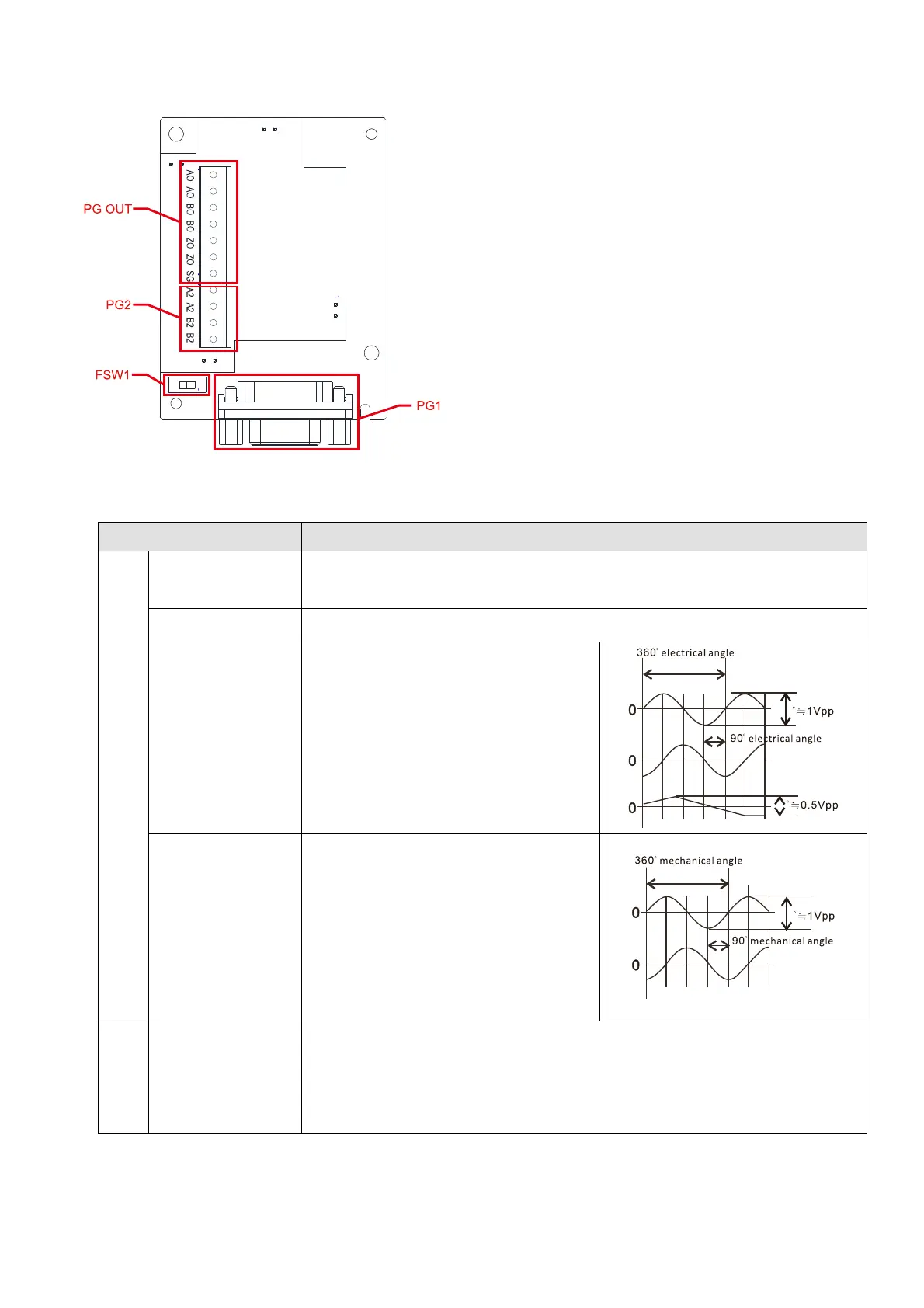

8-11 EMC-PG01H – PG card (Resolver)
1. The PG1 at input side is SinCos signal of 1 Vpp,
and the bandwidth is 600 kHz.
2. The principle of operation for a SinCos encoder
is similar to a square-wave encoder, but use
SinCos signal instead.
3. The pulse unit of SinCos encoder is ppr, 1024
ppr means 1024 SinCos signals per revolution
with single phase.
8-11-1 Terminal Descriptions
Set by Pr.10-00–10-03 and Pr.10-16–10-18.
Terminals Descriptions
PG1
VP
Power output voltage: +5V / +8V 5% (+5V / +8V decided by FSW1)
Max. output current: 200 mA
DCM
Digital control / Frequency signal common
A+, A-,
B+, B-,
R+, R-
Encoder wave difference signal input
(Incremental signal)
Max. output frequency: 600 kHz
C+, C-,
D+, D-
Encoder wave difference signal input
(Absolute signal)
PG2
A2, /A2,
B2, /B2
Pulse Input signal (Line Driver or Open Collector)
Open Collector Input Voltage: +5 – +24V (NOTE 1)
It can be single-phase or two-phase input.
Max. output frequency: 300 kHz
To Next Page
