8-15 CMC-EIP01 -- Communication card, EtherNet/IP
8-15-1 Features
1. Supports Modbus TCP and Ethernet/IP protocol
2. User-defined corresponding parameters (use with EIP V.1.06)
3. IP filter simple firewall function
4. MDI/MDI-X auto-detect
5. Baud rate: 10/100Mbps auto-detect

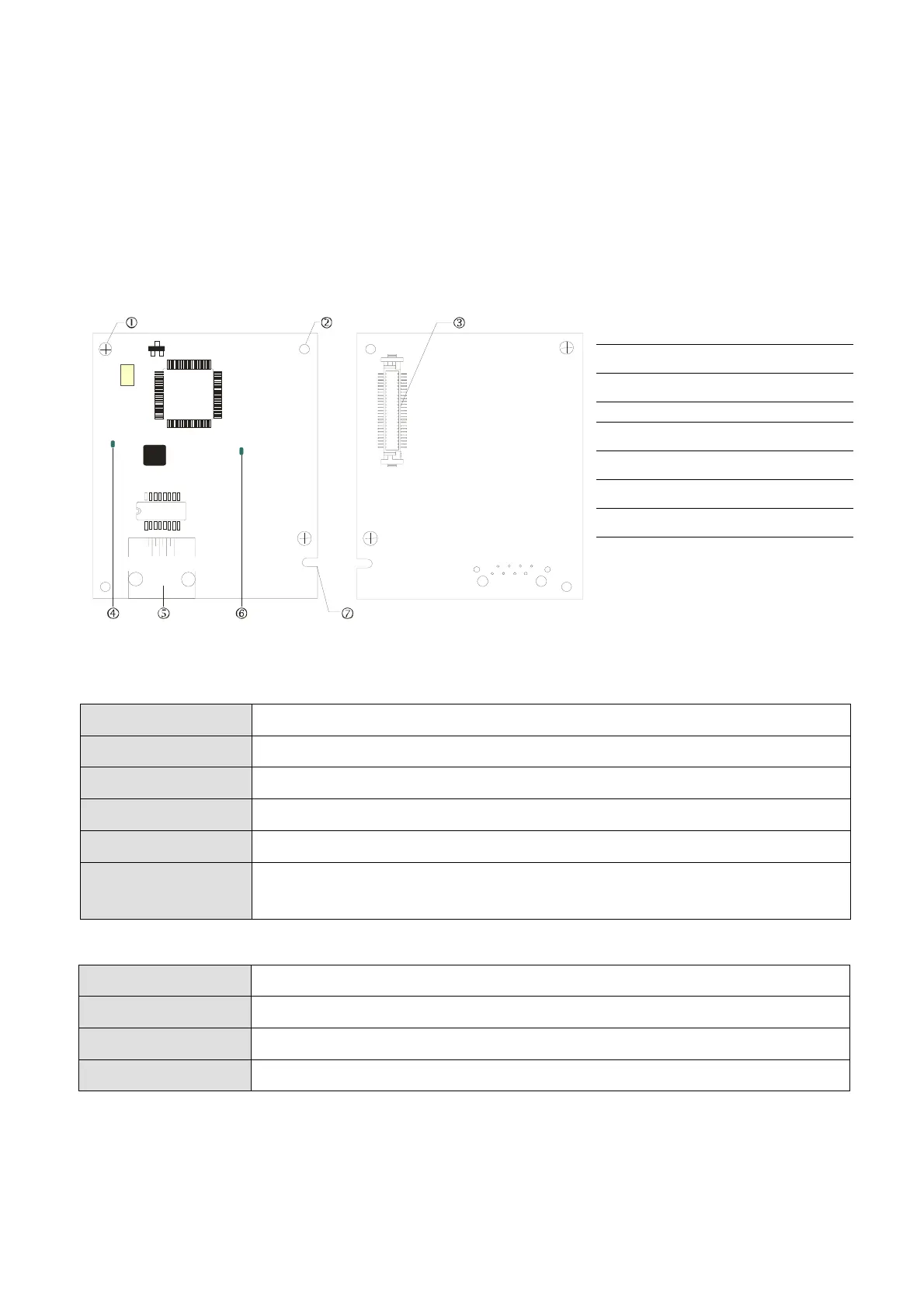

8-15-2 Product Profile
1. Screw fixing hole
2. Positioning hole
3. AC motor drive connection port
4. LINK indicator
5. RJ45 connection port
6. POWER indicator
7. Alignment groove
8-15-3 Specifications
Network Interface
Interface
RJ45 with Auto MDI/MDIX
Number of ports 1 Port
Transmission method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e shielding 100M
Transmission speed 10/100 Mbps Auto-Detect
Network protocol
ICMP, IP, TCP, UDP, DHCP, HTTP, SMTP, Modbus over TCP/IP, EtherNet/IP, Delta
Configuration
Electrical Specification
Weight 25g
Insulation voltage
500V
DC
Power consumption 0.8W
Power supply voltage 5V
DC
(provided by VFD-C2000 Plus)
