Delta C2000 Plus Series User Manual

Chapter 8 Option CardsC2000 Plus
8-45
Environment
Noise immunity
ESD (IEC 61800-5-1, IEC 61000-4-2)
EFT (IEC 61800-5-1, IEC 61000-4-4)
Surge Test (IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 61000-4-6)
Operation / storage
Operation: -10°C–50°C (temperature), 90% (humidity)
Storage: -25°C
–70°C (temperature), 95% (humidity)
Vibration / shock
immunity
International standards: IEC 61800-5-1, IEC 60068-2-6/IEC 61800-5-1, IEC 60068-
2-27
8-15-4 Installation

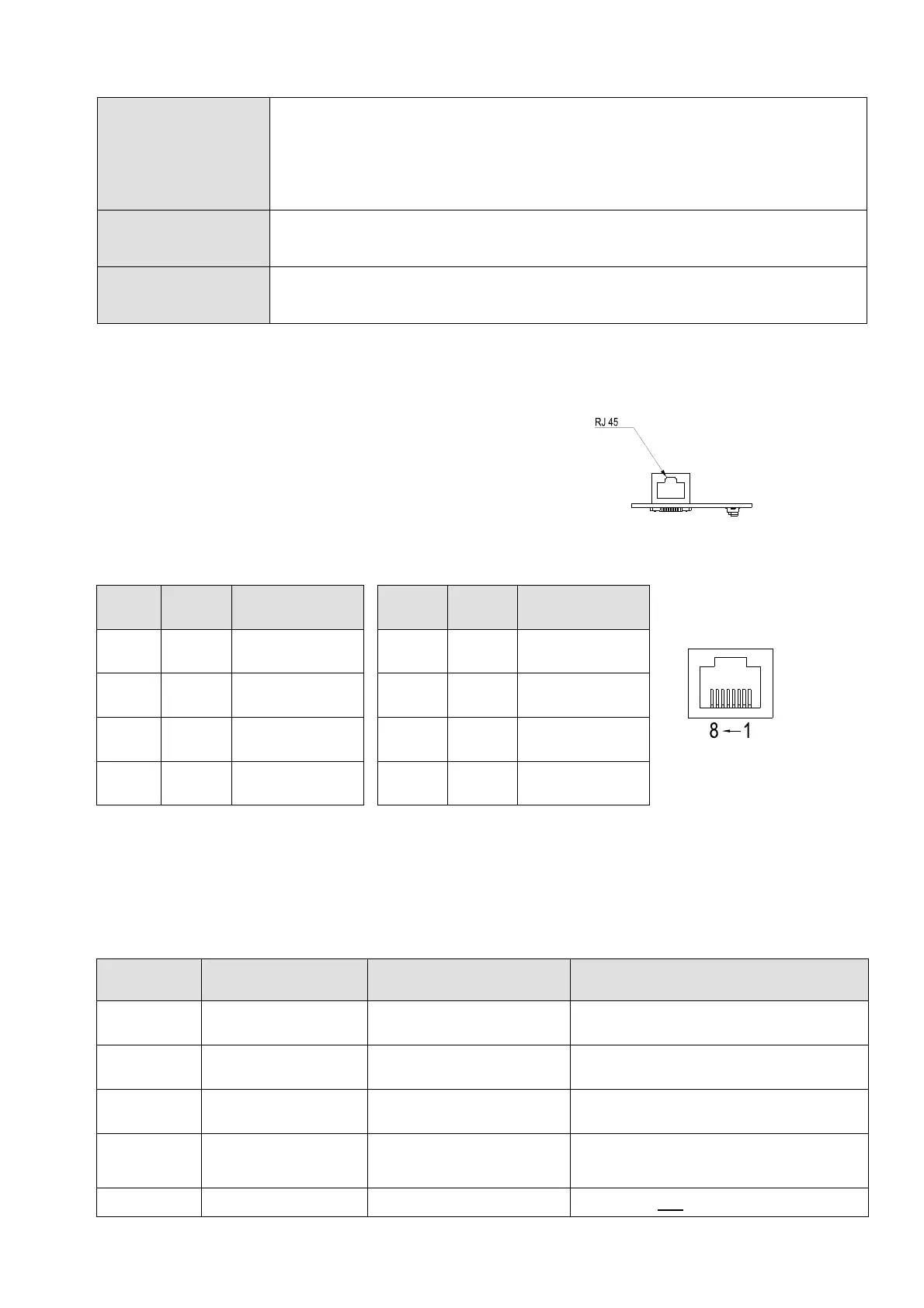

Connecting CMC-EIP01 to Network
1. Turn OFF the power of the drive.
2. Open the cover of the AC motor drive.
3. Connect a CAT-5e network cable to the RJ45 port on the
CMC-EIP01 (See the figure on the right-hand side).
RJ45 PIN Definition
PIN Signal Definition PIN Signal Definition
1 Tx+
Positive pole for
data transmission
5 -- N/C
2 Tx-
Negative pole for
data transmission
6 Rx-
Negative pole for
data reception
3 Rx+
Positive pole for
data reception
7 -- N/C
4 -- N/C 8 -- N/C
8-15-5 C2000 Plus Communication Parameter Settings for Connecting to Ethernet
When the C2000 Plus is connected to an Ethernet network, please set up the communication
parameters for it according to the table below. The Ethernet master is only able to reads and writes the
frequency words and control word of C2000 Plus after the communication parameters are set.
Parameters Functions Current Setting Value Descriptions
00-20
Master frequency
command setting
8
The frequency command is controlled by
communication card.
00-21
Source of operation
command setting
5
The operation command is controlled by
communication card.
09-30
Communication
decoding method
0
The decoding method for Delta AC
motor drive
09-75 IP configuration 0
0: Static IP
1: Dynamic IP (DHCP)
09-76 IP address -1 192 IP address 192.168.1.5
