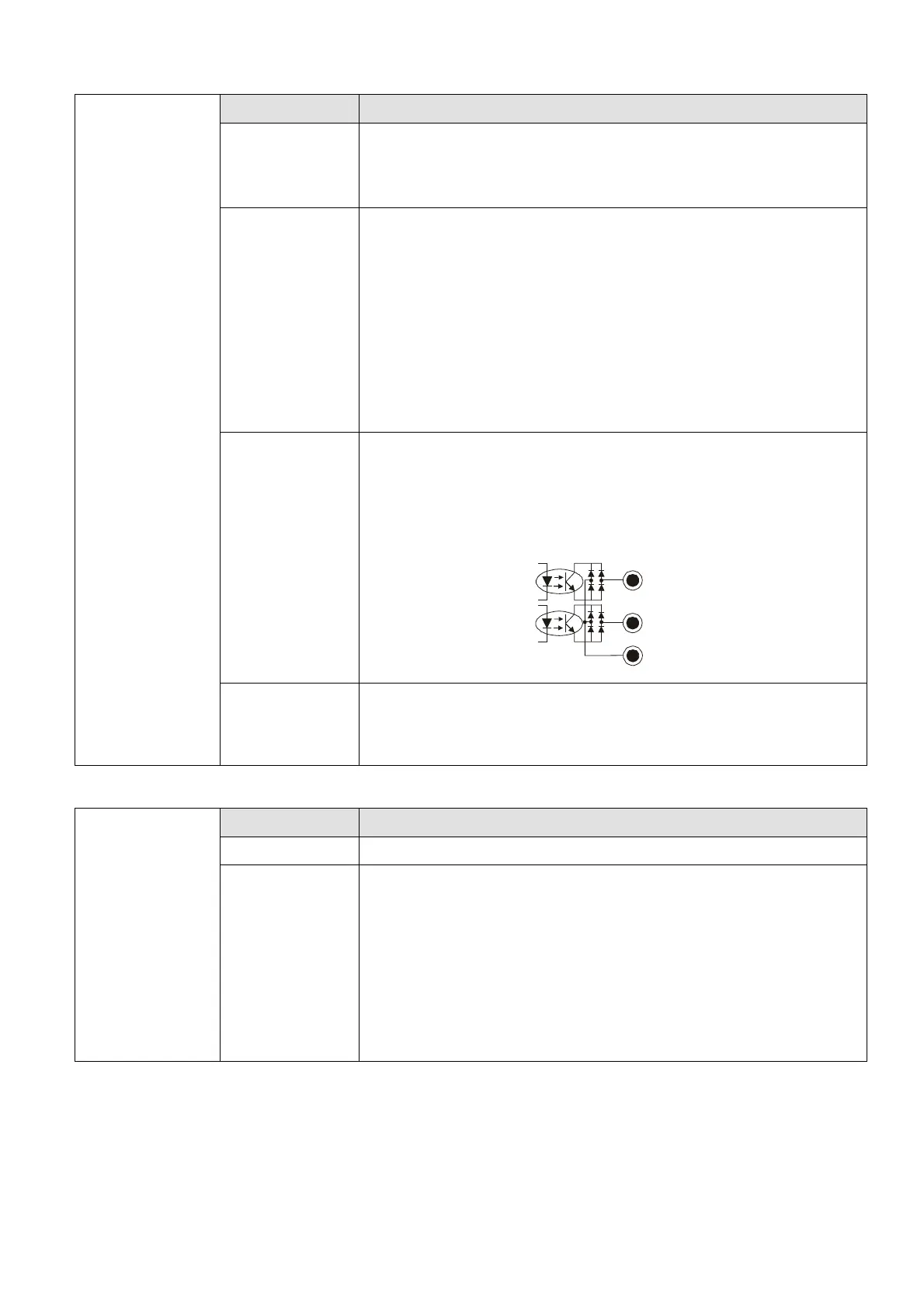

Chapter 8 Option CardsC2000 Plus
8-15
8-2 EMC-D42A -- Extension card for 4-point digital input/ 2-point digital input
I/O Extension
Card
Terminals Descriptions
COM
Common for Multi-function input terminals
Select SINK (NPN) / SOURCE (PNP) in J1 jumper / external
power supply
MI10–MI13
Refer to Pr.02-26–02-29 to program the multi-function inputs
MI10–MI13.
Internal power is applied from terminal E24: +24 V
DC
± 5% 200
mA, 5W
External power +24 V
DC
: max. voltage 30 V
DC
, min. voltage 19
V
DC
, 30W
ON: the activation current is 6.5 mA
OFF: leakage current tolerance is 10 μA
MO10–MO11
Multi-function output terminals (photocoupler)
The AC motor drive releases various monitor signals, such as
drive in operation, frequency attained and overload indication, via
transistor (open collector).
MXM
Common for multi-function output terminals MO10, MO11
(photocoupler)
Max 48 V
DC
50 mA
8-3 EMC-D611A -- Extension card for 6-point digital input (110V
AC
input voltage)
I/O Extension
Card
Terminals Descriptions
AC AC power Common for multi-function input terminal (Neutral)
MI10–MI15
Refer to Pr.02-26–Pr. 02-31 for multi-function input selection
Input voltage: 100–130 V
AC
Input frequency: 47–63 Hz
Input impedance: 27 KΩ
Terminal response time:
ON: 10 ms
OFF: 20 ms
MO10
MO11
MXM
