Delta C2000 Plus Series User Manual

Chapter 16 PLC Function ApplicationsC2000 Plus
16-164

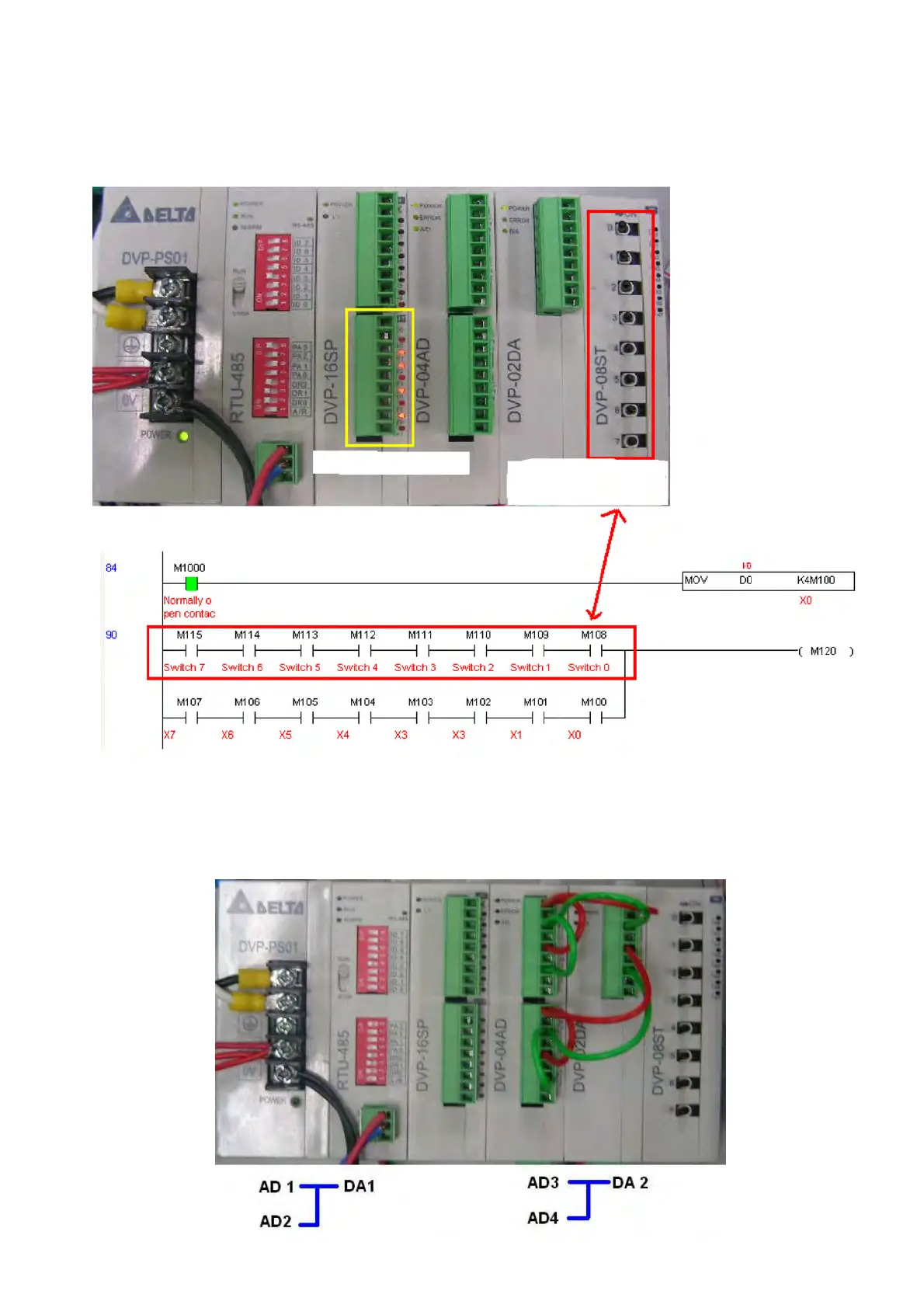

Step 5: Actual testing situation:
I/O testing: When the switch is activated, it can be discovered that the display corresponds to M115–
M108. Furthermore, it can be seen that one output point light is added every 1 sec. (the
display uses a binary format)
AD DA testing: It can be discovered that D200 and D201 are roughly twice the D300, and continue to
increase progressively. For their part, the D202 and D203 are roughly twice the D301,
and continue to decrease progressively.
This light signal increase
by 1number per second.
WPL will be modified
when pressing this Switch

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
