Delta C2000 Plus Series User Manual

Chapter 7 Optional AccessoriesC2000 Plus
7-33

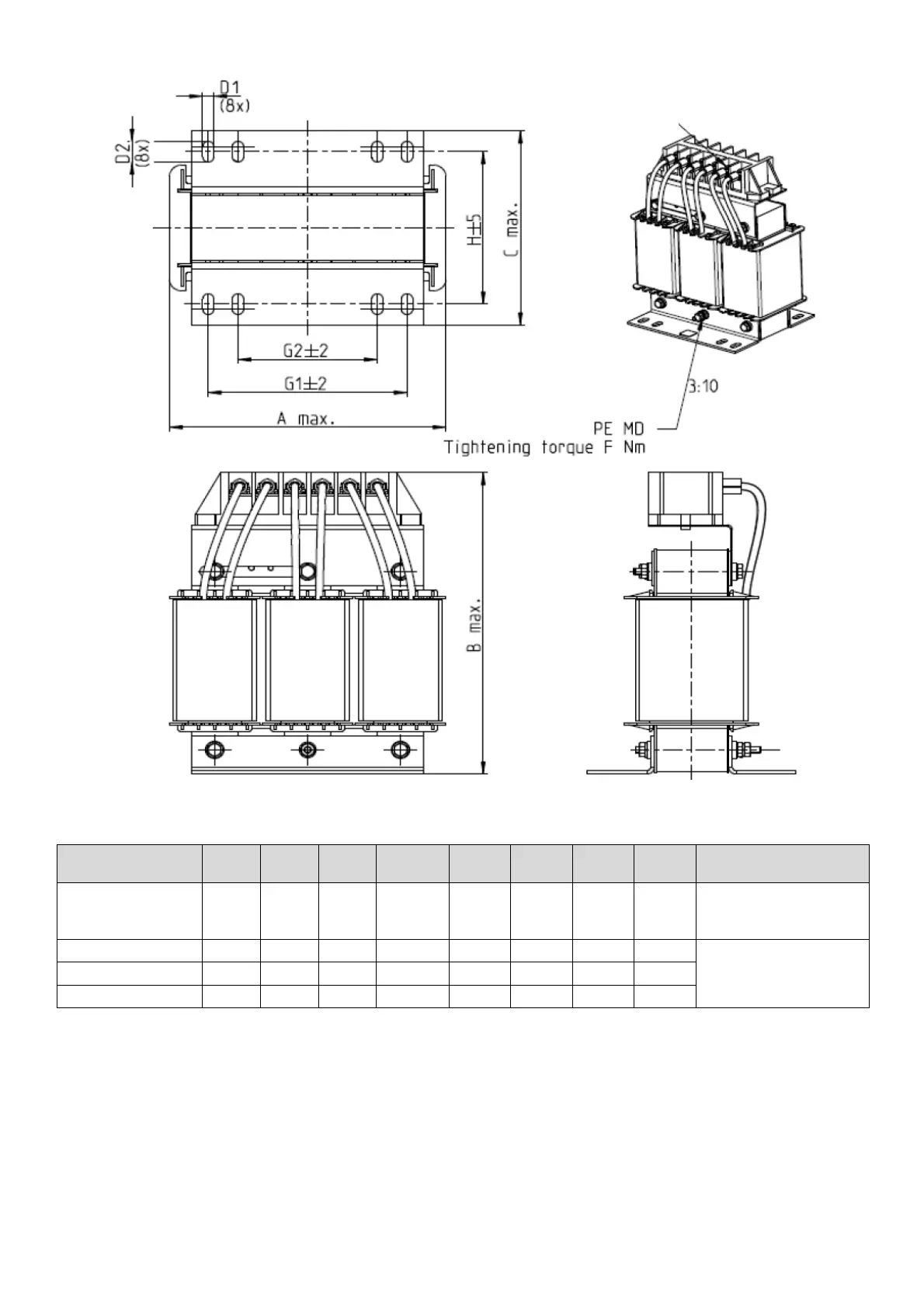

Figure 7-18
Unit: mm
AC Input Reactors
Delta part #
A B C D1*D2 H G1 G2 PE D
F
DR024AP881 160 175 115 6*12 90 107 75 M4
11.2–13.3 kg-cm /
(9.7–11.5 lb-in.) /
(1.1–1.3 Nm)
DR032AP660 195 200 145 6*12 115 122 85 M6
29.1–32.1 kg-cm /
(25.3–27.9 lb-in.) /
(2.85–3.15 Nm)
DR038AP639 190 200 145 6*12 115 122 85 M6
DR045AP541 190 200 145 6*12 115 122 85 M6
Table 7-36
Installing Screw M5
Screw length
must not
interfere with
the mounting
holes

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
