Chapter 7 Optional AccessoriesC2000 Plus
7-80

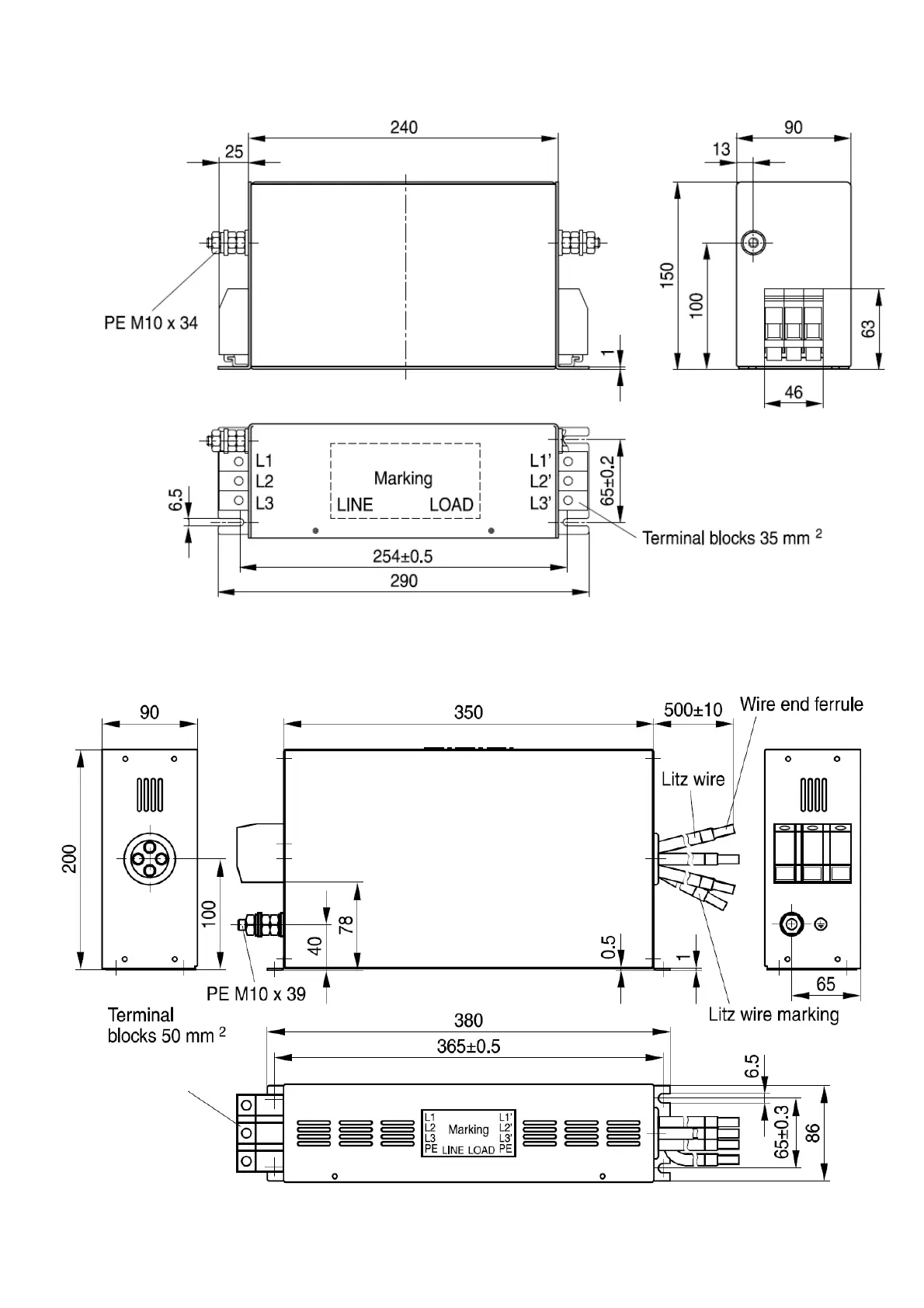

Model name: B84143A0120R105
Figure 7-58
Model name: B84143B0120R110
Figure 7-59
Torque: 32.7~37.8 kg-cm /
(28.4~32.8 lb-in.) /
(3.2~3.7 Nm)
Torque: 61.2~81.6 kg-cm /
(53.1~70.8 lb-in.) /
(6.0~8.0 Nm)
Unit: mm
Unit: mm
