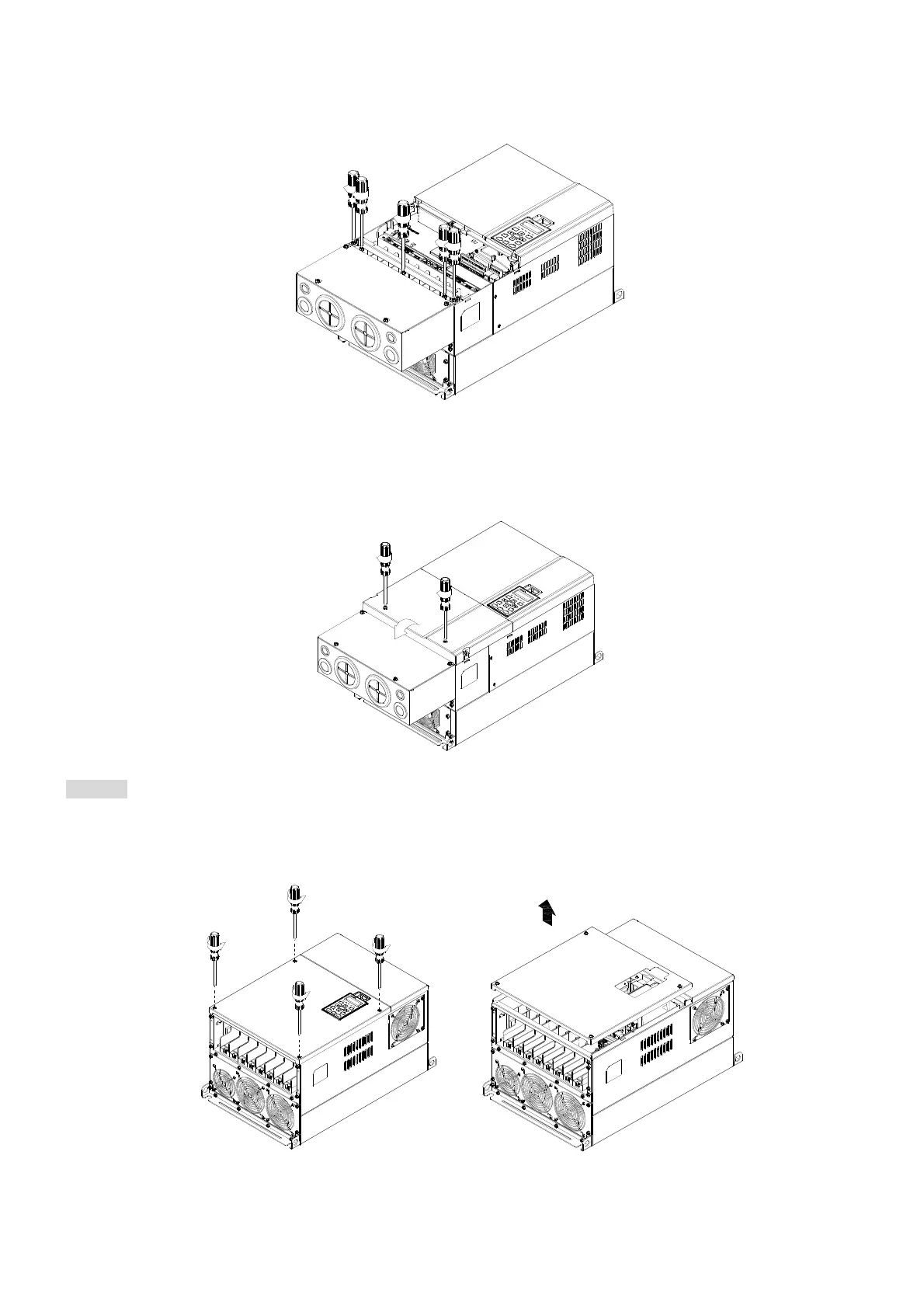

3. Install the conduit box by tightening the 5 screws shown in the following figure.
Screw torque:
24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
Figure 7-99
4. Tighten the 2 screws shown in the following figure. Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5
Nm)
Figure 7-100
Frame E
1. Loosen the 4 cover screws and lift the cover;
Screw torque: 12–15 kg-cm / (10.4–13 Ib-in.) / (1.2–1.5 Nm)
Figure 7-101
