Delta C2000 Plus Series

Chapter 7 Optional AccessoriesC2000 Plus
7-107

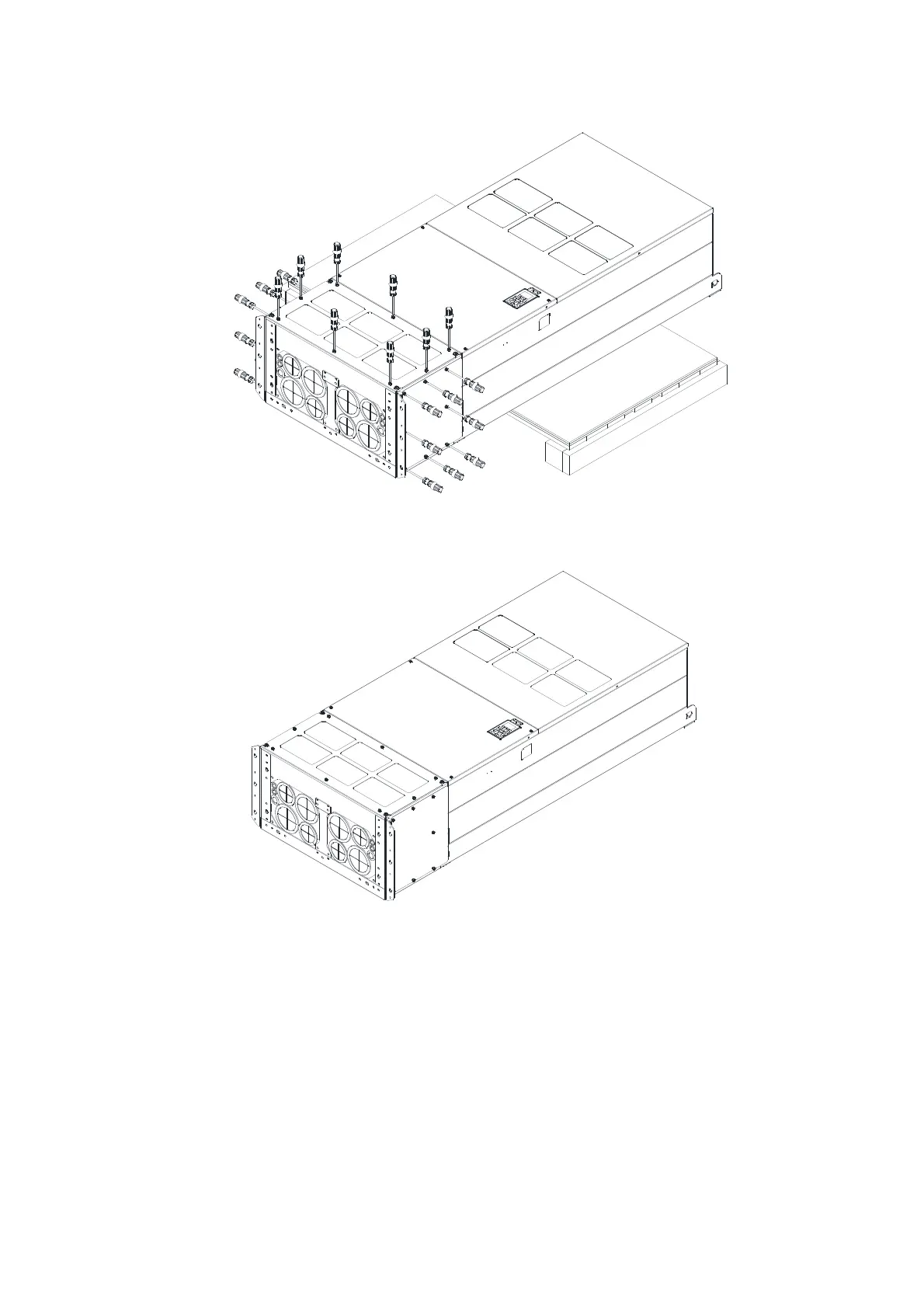

5. Tighten the 3 covers and screws, which were loosen from step 1, to the original location.
Screw Torque: 35–45 kg-cm / (30.3–39 Ib-in.) / (3.4–4.4 Nm)
Figure 7-116
6. Installation complete.
Figure 7-117
