MKC-CFM
Applicable models
VFD150C23A-21; VFD185C23A-21; VFD185C43A-21; VFD185C4EA-21; VFD185C63B-21;
VFD220C23A-21; VFD220C43A-21; VFD220C4EA-21; VFD220C63B-21; VFD300C43A-21;
VFD300C4EA-21; VFD300C63B-21; VFD370C63B-21
Accessory 1*2 Accessory 2*2
Screw 1*4
M8*P 1.25
Screw 2*8
M6*P 1.0

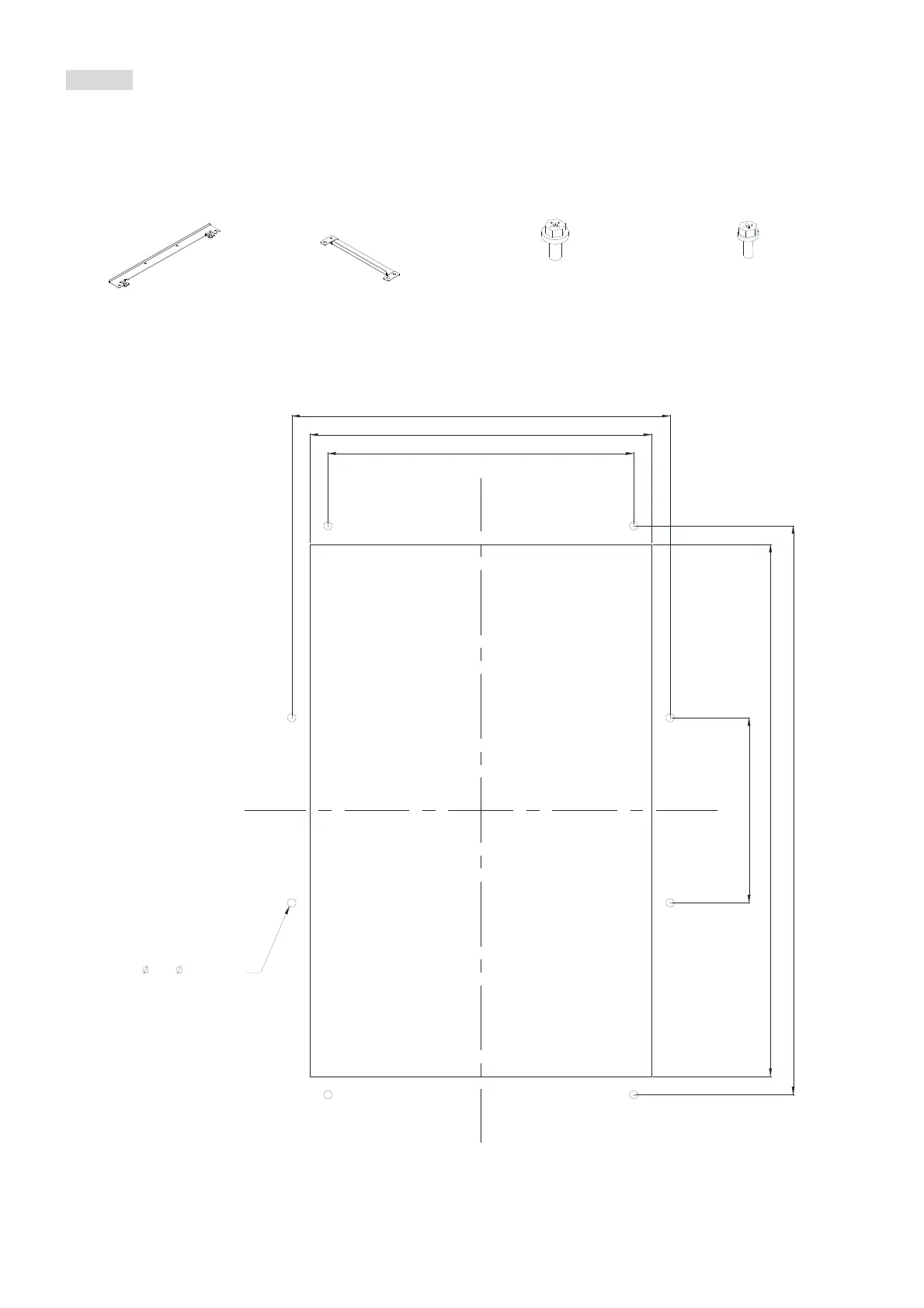

Hole sites and dimension Unit: mm (inch)
140.0 [5.51]
402.0 [15.83]
231.0 [9.09]
430.0 [16.93]
258.0 [10.16]
286.0 [11.26]
M6*1.0 (8X) or
6.5 [ 0.26] (8X)
Figure 7-208
