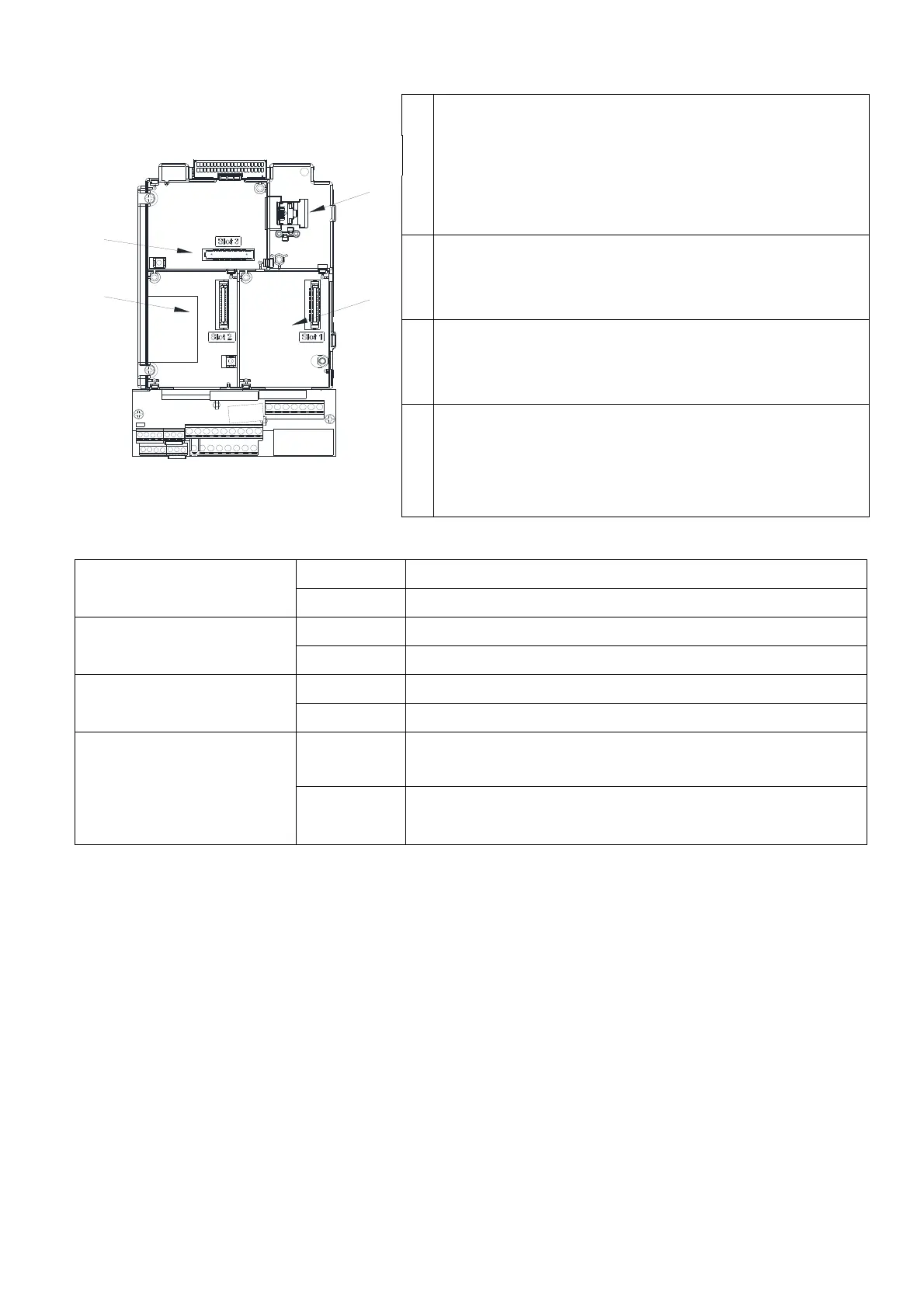

8-1-2 Option Card Installation Position
1
RJ45 (Socket) for digital keypad KPC-CC01
 Refer to CH10 Digital Keypad for more details on KPC-
CC01.
 Refer to CH10 Digital Keypad for more details on optional
accessory RJ45 extension cable.
2
Communication extension card (Slot 1)
CMC-PD01; CMC-DN01; CMC-EIP01; EMC-COP01; CMC-
EC01; CMC-PN01
3
I/O & Relay extension card (Slot 3)
EMC-D42A; EMC-D611A; EMC-R6AA;
EMC-BPS01; EMC-A22A
4
PG Card (Slot 2)
EMC-PG01L; EMC-PG02L; EMC-PG01O; EMC-PG02O;
EMC-PG01U; EMC-PG02U; EMC-PG01R; EMC-PG01H;
EMC-MC01
Screw specification for option card terminals:
EMC-D42A; EMC-D611A;
EMC-BPS01
Wire gauge 0.2–0.5 mm
2
(26–20 AWG)
Torque 5 kg-cm / (4.4 Ib-in) / (0.5 Nm)
EMC-R6AA
Wire gauge 0.2–0.5 mm
2
(26–20 AWG)
Torque 8 kg-cm / (7 Ib-in) / (0.8 Nm)
EMC-A22A
Wire gauge 0.2–4 mm
2
(24–12 AWG)
Torque 5 kg-cm / (4.4 Ib-in) / (0.5 Nm)
EMC-PG01L; EMC-PG02L;
EMC-PG01O; EMC-PG02O;
EMC-PG01U; EMC-PG02U;
EMC-PG01R; EMC-PG01H
Wire gauge 0.2–0.5 mm
2
(26–20 AWG)
Torque 2 kg-cm / (1.73 Ib-in) / (0.2 Nm)
Slot 1
Slot 3
Slot 2
○
1
○
2
○
3
○
4
