Delta C2000 Plus Series

Chapter 1 IntroductionC2000 Plus
1-19
Frame F
F2: VFD900C23A-21; VFD1320C43A-21; VFD1600C43A-21; VFD1600C63B-21; VFD2000C63B-21
H1
H2
S1
S1
D2
W
W1
D
D1
H3
H
S2
S3
3
2
1
2
2
2
3 1
See Detail A
See Detail B
Detail A (Mounting Hole)
Detail B (Mounting Hole)

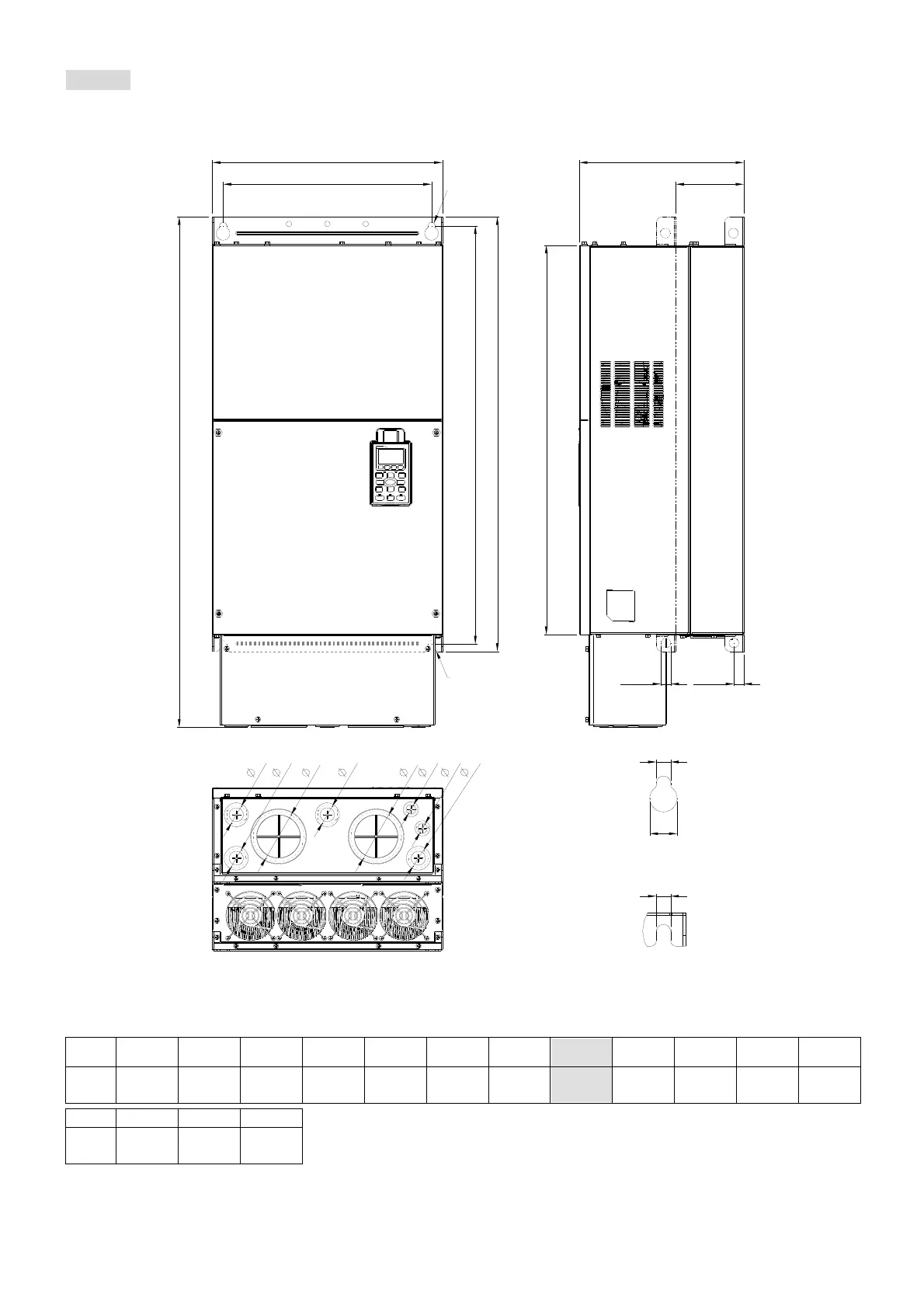

Figure 1-25
Unit: mm [inch]
Frame W H D W1 H1 H2 H3 D1* D2 S1 S2 S3
F2
420.0
[16.54]
940.0
[37.00]
300.0
[11.81]
380.0
[14.96]
800.0
[31.50]
770.0
[30.32]
717.0
[28.23]
124.0
[4.88]
18.0
[0.71]
13.0
[0.51]
25.0
[0.98]
18.0
[0.71]
Frame Ф1 Ф2 Ф3
F2
92.0
[3.62]
35.0
[1.38]
22.0
[0.87]
D1*: Flange mounting
See Detail A
See Detail B
Detail B (Mounting Hole)
Detail A (Mounting Hole)
