Chapter 8 Option CardsC2000 Plus
8-20

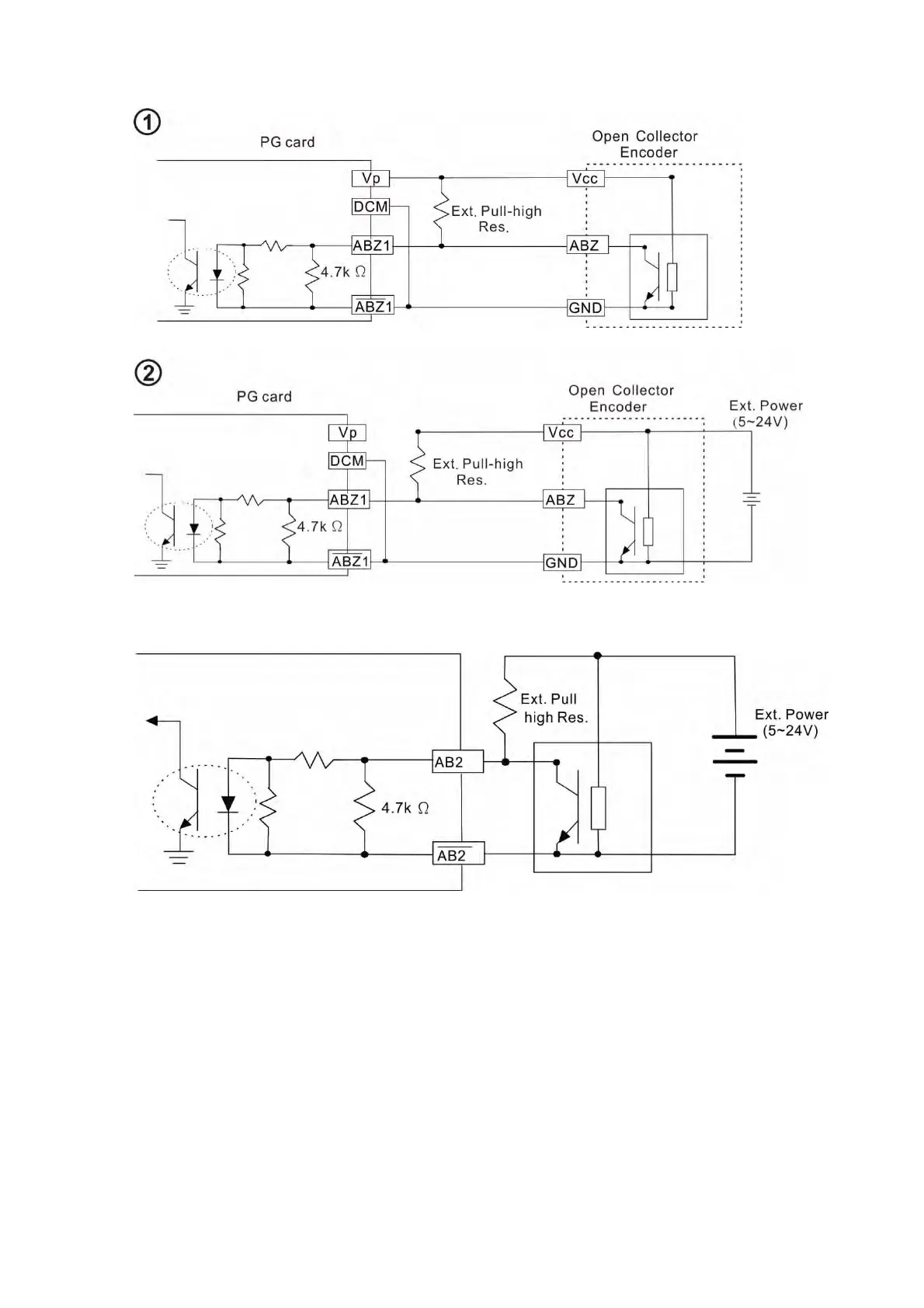

PG1 card wiring diagram (two images below are wiring diagrams of open collector encoder)
PG2 wiring diagram
