Chapter 8 Option CardsC2000 Plus
8-23

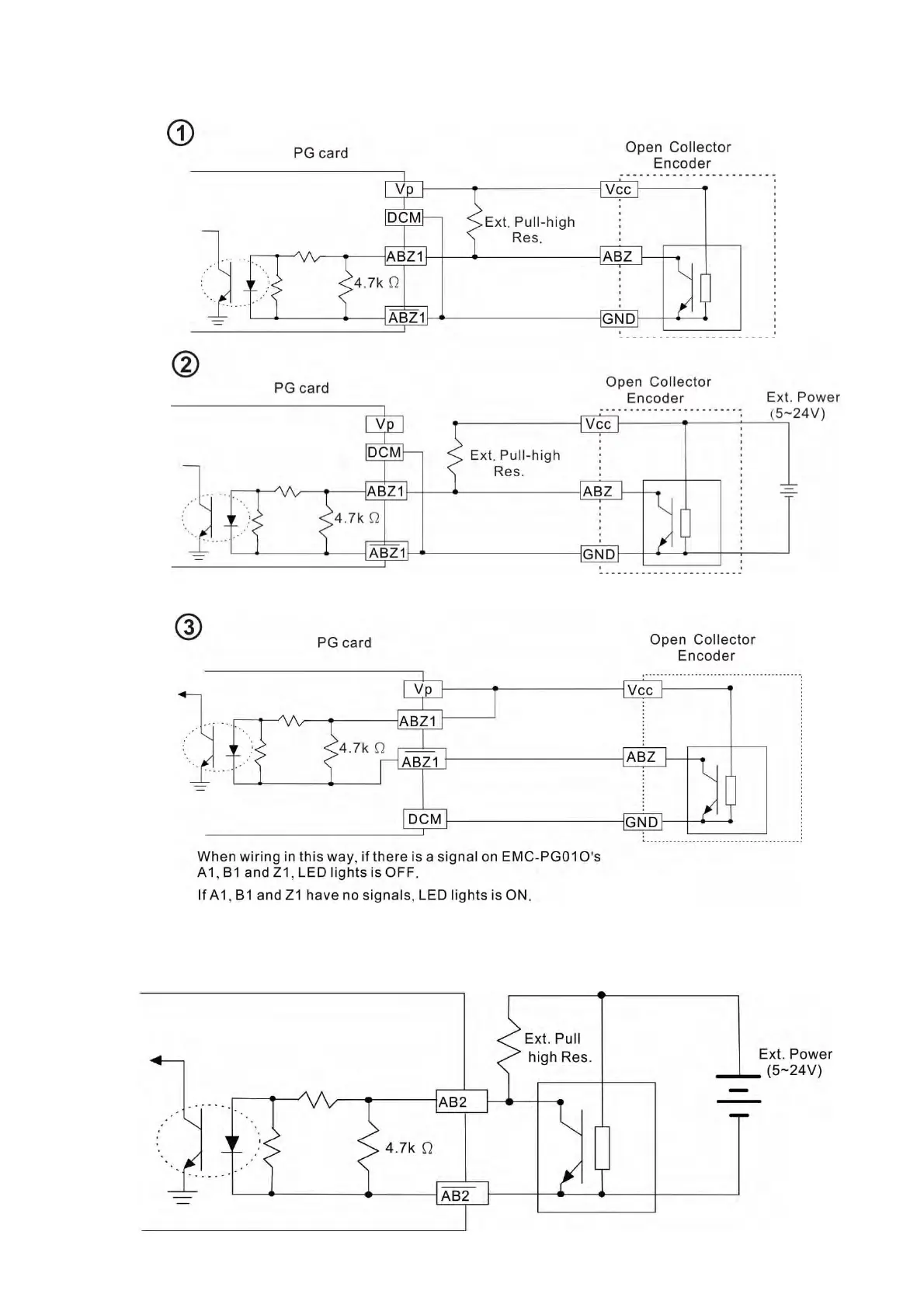

PG1 card wiring diagram (three images below are wiring diagrams of open collector encoder)
PG2 Wiring Diagram
