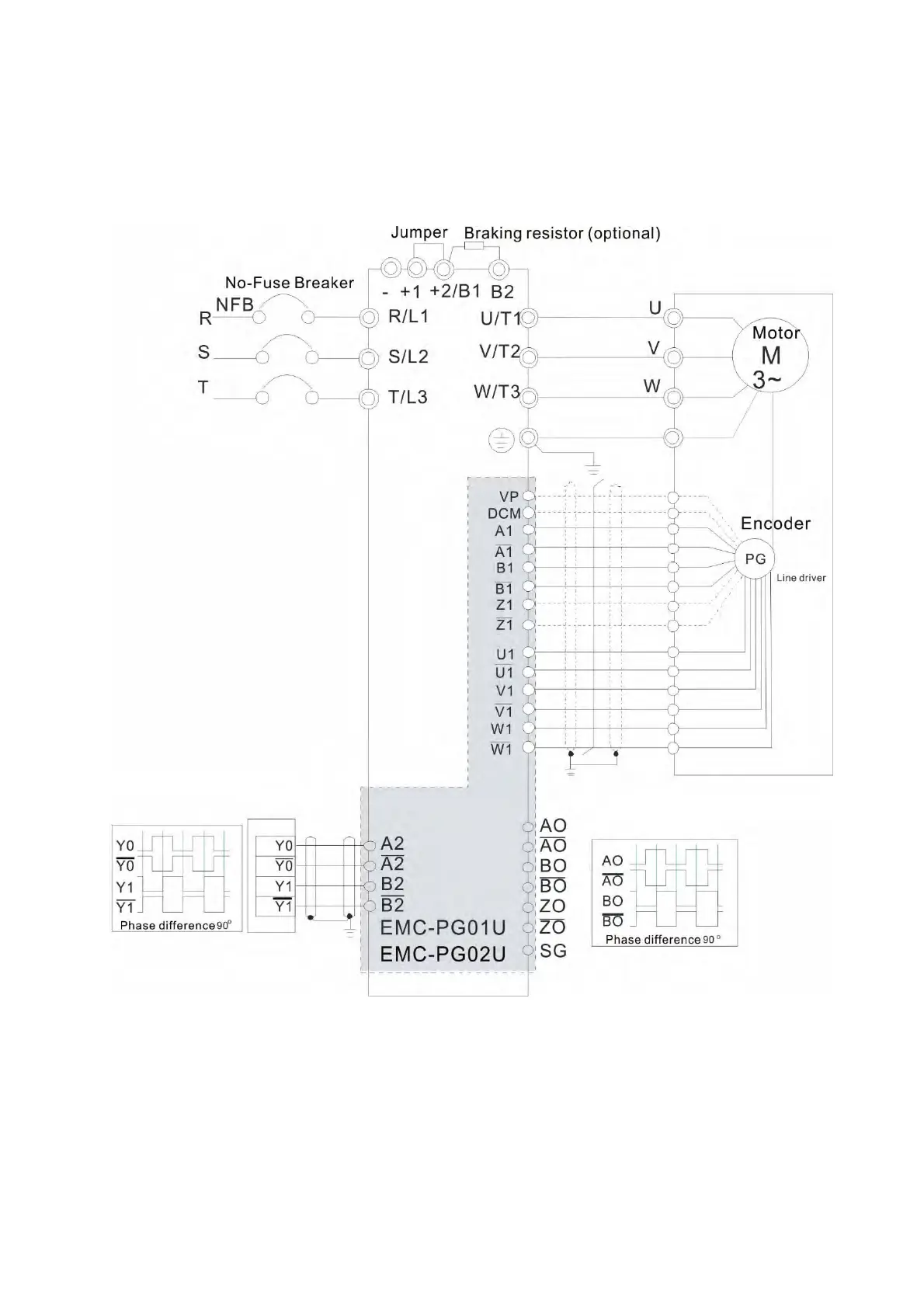

8-9-2 EMC-PG01U Wiring Diagram
Use a shielded cable to prevent interference. Do not run control wires parallel to any high voltage
AC power line (200 V and above).
Recommended wire size 0.2–0.75 mm
2
(24–18 AWG).
Cable length: Single-phase input, less than 30 m / two-phase input, less than 100 m.
