Delta C2000 Plus Series User Manual

Chapter 1 IntroductionC2000 Plus
1-22
Frame H
H1: VFD2800C43A-00; VFD3150C43A-00; VFD3550C43A-00; VFD4000C43A-00; VFD4000C63B-00;
VFD4500C43A-00; VFD4500C63B-00; VFD5000C43A-00; VFD5600C43A-00; VFD5600C63B-00;
VFD6300C63B-00

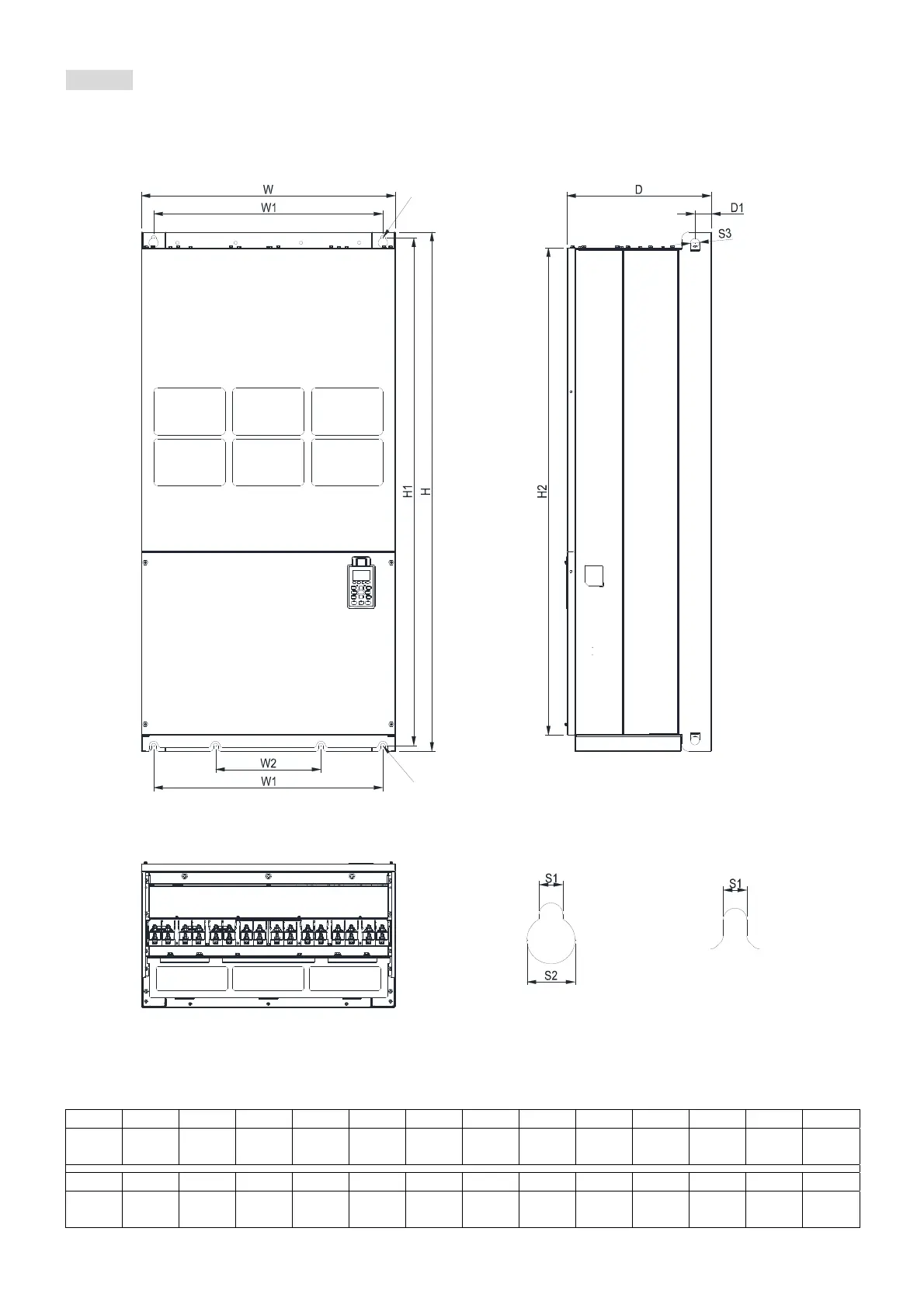

Figure 1-28
Unit: mm [inch]
Frame W H D W1 W2 W3 W4 W5 W6 H1 H2 H3 H4
H1
700.0
[27.56]
1435.0
[56.5]
398.0
[15.67]
630.0
[24.8]
290.0
[11.42]
- - - -
1403.0
[55.24]
1346.6
[53.02]
- -
Frame H5 D1 D2 D3 D4 D5 D6 S1 S2 S3 Ф1 Ф2 Ф3
H1 -
45.0
[1.77]
- - - - -
13.0
[0.51]
26.5
[1.04]
25.0
[0.98]
- - -
See Detail A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
