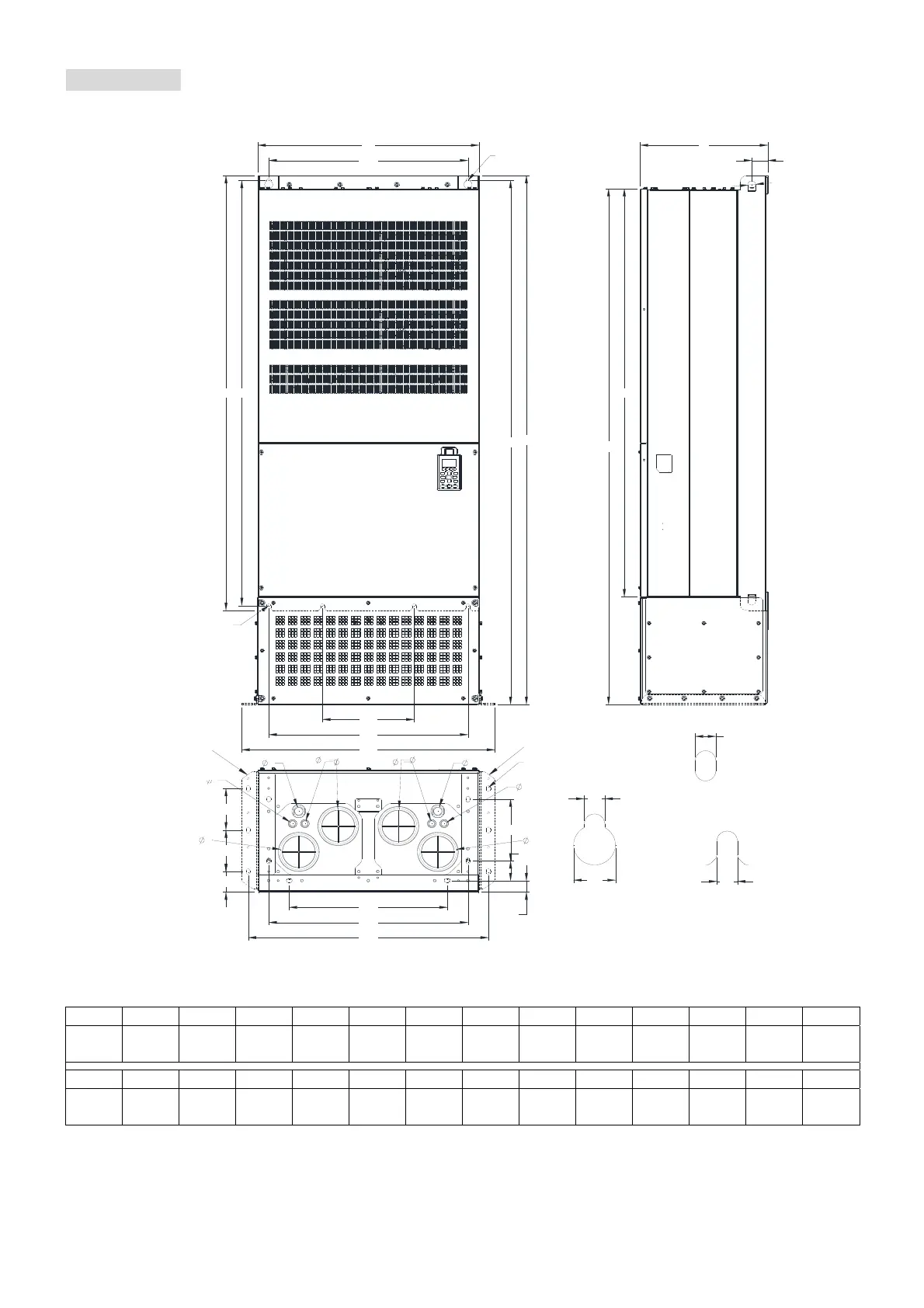

Chapter 1 IntroductionC2000 Plus
1-24
690V Frame H
H2: VFD4000C63B-21; VFD4500C63B-21; VFD5600C63B-21; VFD6300C63B-21
W
H
H1
W2
H4
D
W4
D2
D3
D4
W5
W6
D5
D6
D6
W1
D1
S3
3
2
1
3
2
1
1
1
3
3
See Detail A
See Detail C
S1
S2
S1
Detail A (Mounting
Hole)
Detail C (Mounting
Hole)
H3
H2
H5
W3
W2
See Detail B
S1
Detail B (Mounting
Hole)
側邊固定件
側邊固定件
Figure 1-30
Unit: mm [inch]
Frame W H D W1 W2 W3 W4 W5 W6 H1 H2 H3 H4
H2
700.0
[27.56]
1745.0
[68.70]
404.0
[15.91]
630.0
[24.8]
500.0
[19.69]
630.0
[24.8]
760.0
[29.92]
800.0
[31.5]
-
1729.0
[68.07]
1701.6
[66.99]
- -
Frame H5 D1 D2 D3 D4 D5 D6 S1 S2 S3 Φ1 Φ2 Φ3
H2 -
51.0
[2.01]
38.0
[1.50]
65.0
[2.56]
204.0
[8.03]
68.0
[2.68]
137.0
[5.39]
13.0
[0.51]
26.5
[1.04]
25.0
[0.98]
22.0
[0.87]
34.0
[1.34]
117.5
[4.63]
Side fixing
baffle plate
Side fixing baffle plate
See Detail C
See Detail B
Detail C
(
Mountin
g
hole
)
Detail A
(
Mountin
g
hole
)
Detail B
(
Mountin
g
hole
)
See Detail A
