Delta C2000 Plus Series

Chapter 9 Specification C2000 Plus
9-18
 230V／460V models, Advanced Control
Pr.00-11 = 2 (PM SVC, Pr.05-33 = 1, 2)
= 4 (PMFOCPG)
= 5 (IMFOC Sensorless)
= 6 (PM Sensorless)
= 7 (IPM Sensorless)
40
50
60
70
80
90
100
110
2 3 4 5 6 7 8 9 10 11 12 13 14 15
Drives's Rated Output Cuurent
(%)
Fc (kHz)
230V
VFD007~110C23A-xx VFD150~370C23A-xx VFD450~900C23A-xx

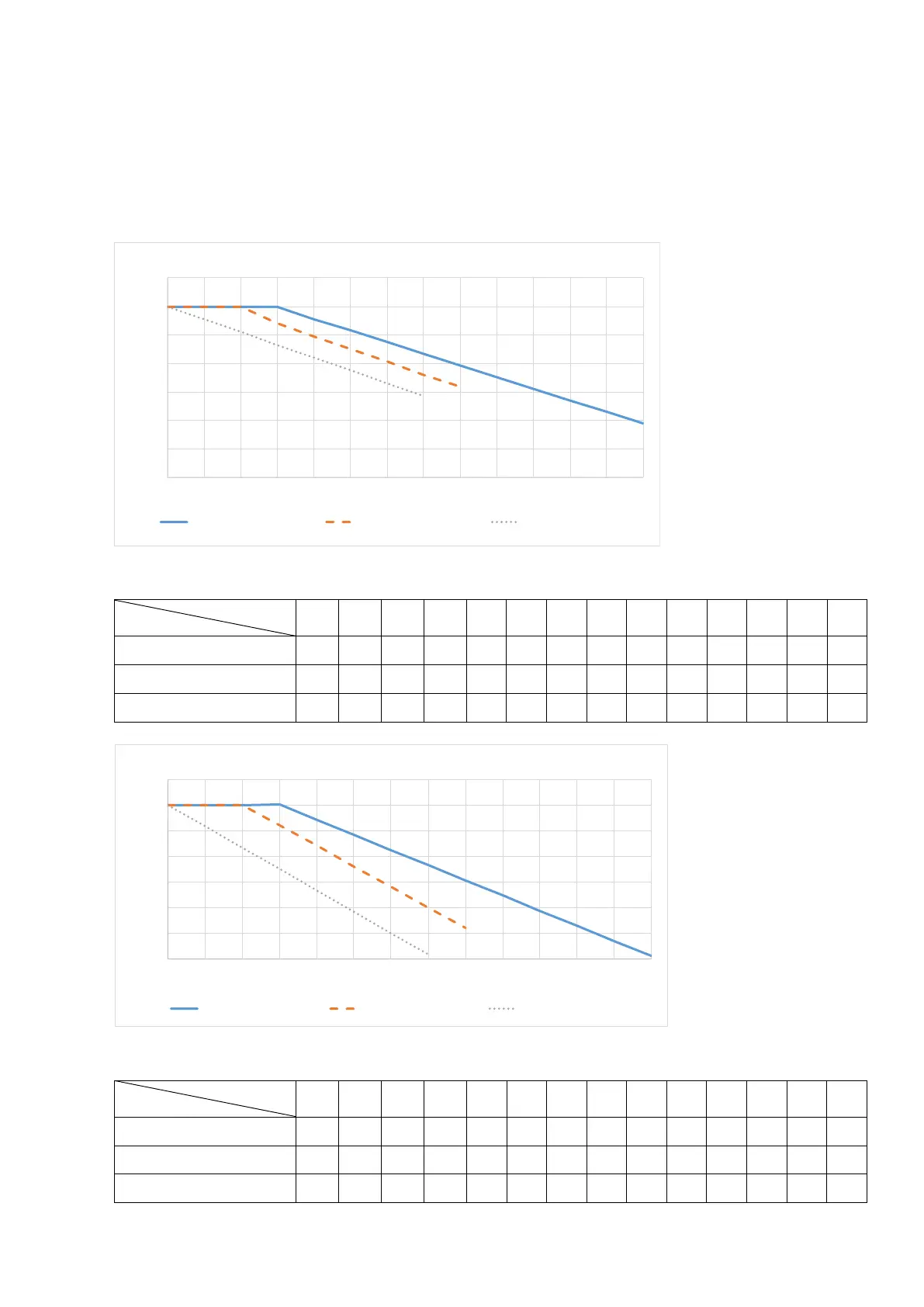

Figure 9-7
The rated output current derating (%) of 230V models in advanced control mode for different carrier
frequencies:
Fc (kHz)
Model No.
2 3 4 5 6 7 8 9 10 11 12 13 14 15
VFD007~110C23A-xx 100 100 100 100 96 92 88 83 79 75 71 67 63 59
VFD150~370C23A-xx 100 100 100 94 90 85 81 76 72 - - - - -
VFD450~900C23A-xx 100 96 91 87 82 78 73 69 - - - - - -
Table 9-20
40
50
60
70
80
90
100
110
2 3 4 5 6 7 8 9 10 11 12 13 14 15
Drives's Rated Output Cuurent
(%)
Fc (kHz)
460V
VFD007~150C4xx-xx VFD185~550C4xx-xx VFD750~5600C4xx-xx
Figure 9-8
The rated output current derating (%) of 460V models in advanced control mode for different carrier
frequencies:
Fc (kHz)
Model No.
2 3 4 5 6 7 8 9 10 11 12 13 14 15
VFD007~150C4xx-xx 100 100 100 100 94 88 82 76 71 65 59 53 47 41
VFD185~550C4xx-xx 100 100 100 92 84 76 68 60 52 - - - - -
VFD750~5600C4xx-xx 100 92 83 75 67 58 50 42 - - - - - -
Table 9-21
