Delta C2000 Plus Series User Manual

Chapter 10 Digital KeypadC2000 Plus
10-3

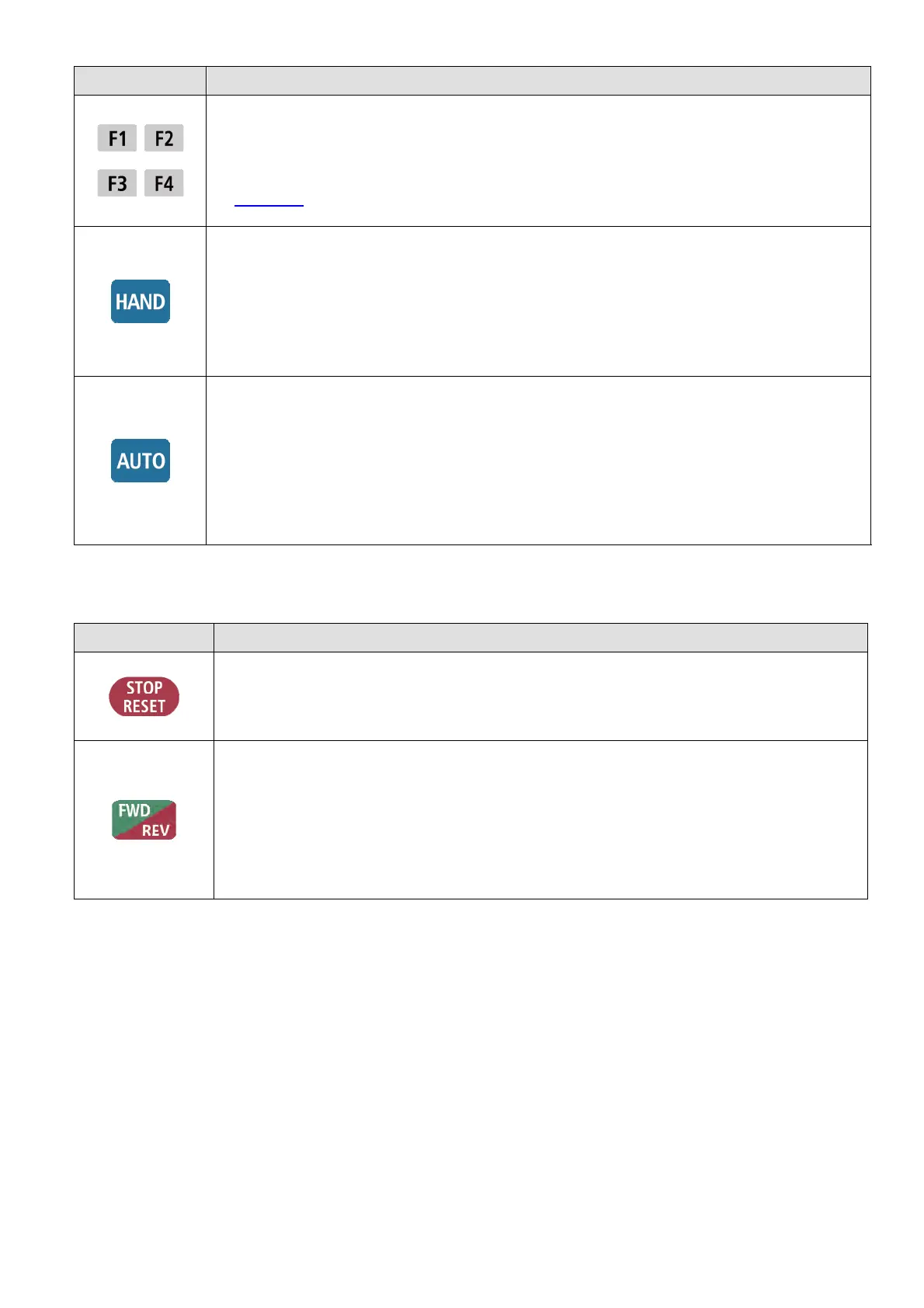

Key
Descriptions
Function Key
1. The functions keys have defaults and can also be use-defined. The defaults for F1 and F4
work with the function list below. For example, F1 is the JOG function, and F4 is a speed
setting key for adding / deleting user-defined parameters.
2. Other functions must be defined using TPEditor.
(Download TPEditor software at Delta website. Select TPEditor version 1.60 or later.
Refer to the installation instruction for TPEditor in Section 10-3.)
HAND Key
1. Use this key to select HAND mode. In this mode, the drive’s parameter settings for frequenc
y
command source is Pr.00-30, and that for operation command source is Pr.00-31.
2. Press the HAND key at STOP, then the setting switches to the HAND frequency source and
HAND operation source.
3. Press HAND key at RUN, and it stops the AC motor drive first (displays
A
HSP warning), and
switches to HAND frequency source and HAND operation source.
4. Successful mode switching for the KPC-CC01 displays HAND mode on the screen.
AUTO Key
1. The default of the drive is AUTO mode.
2. Use this key to select AUTO mode. In this mode, the drive’s parameter settings for frequency
command source is Pr.00-20, and that for operation command is Pr.00-21.
3. Press the AUTO key at STOP, then the setting switches to the AUTO frequency source and
AUTO operation source.
4. Press AUTO key at RUN, and it stops the AC motor drive first (displays
A
HSP warning), and
switches to AUTO frequency source and AUTO operation source.
5. Successful mode switching for the KPC-CC01 displays AUTO mode on the screen
NOTE: The defaults for the frequency command and operation command source of HAND / AUTO mode are both
from the keypad.
LED Functions Descriptions
LED Descriptions
Steady ON: STOP indicator for the AC motor drive.
Blinking: the drive is in standby.
Steady OFF: the drive does not execute the “STOP” command.
Operation Direction LED
1. Green light: the drive is running forward.
2. Red light: the drive is running backward.
3. Flashing light: the drive is changing direction.
Operation Direction LED under Torque Mode
1. Green light: when the torque command ≥ 0, and the motor is running forward.
2. Red light: when the torque command < 0, and the motor is running backward.
3. Flashing light: when the torque command < 0, and the motor is running forward.
