Delta C2000 Plus Series User Manual

Chapter 10 Digital KeypadC2000 Plus
10-29

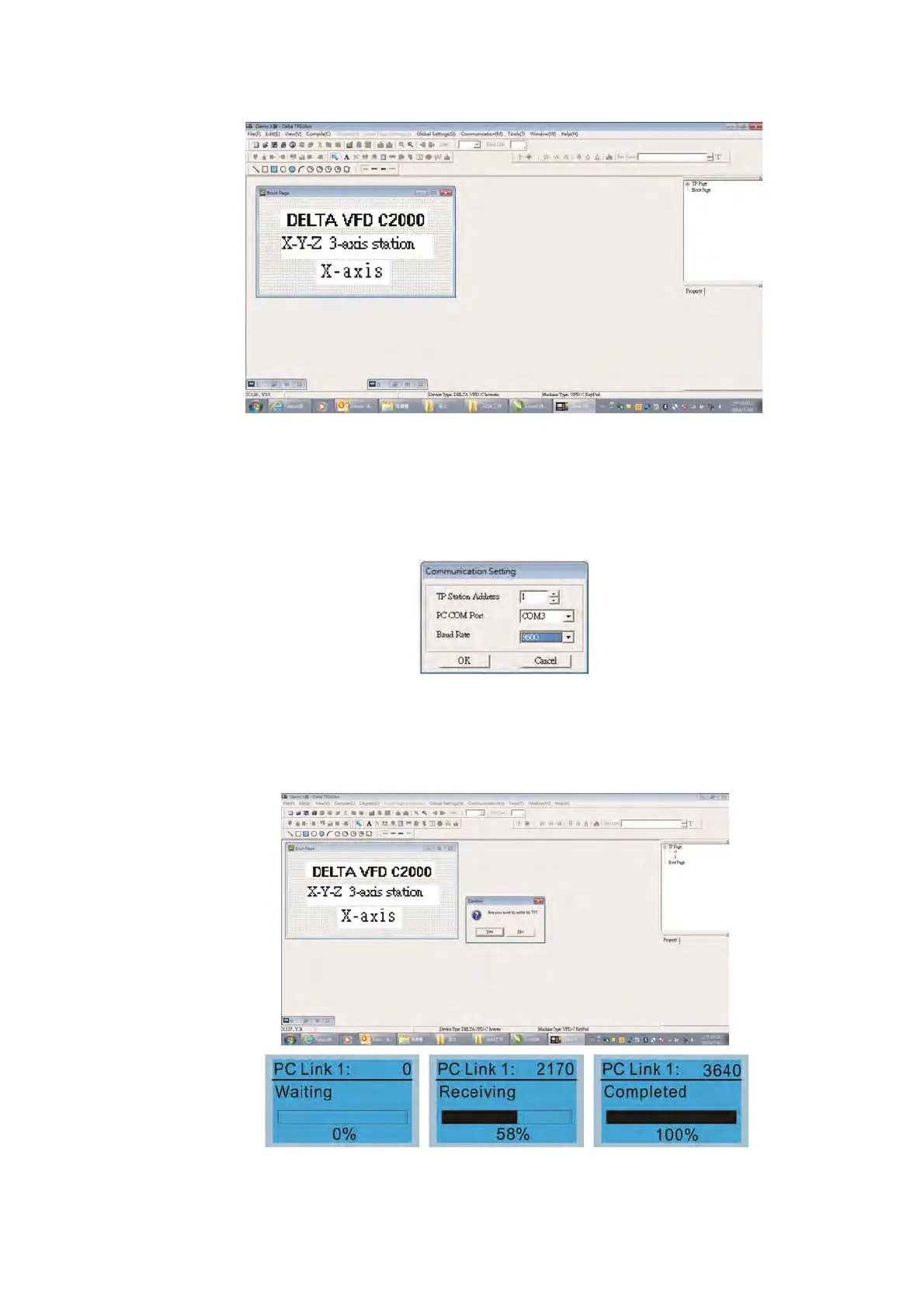

8. When you finish editing the start-up screen, on the Communication menu, click Input User Defined
Keypad Starting Screen.
9. Download the new setting: On the Tool menu, click Communication. Set up the communication port and
speed for the IFD6530. There are three speeds available: 9600 bps, 19200 bps, and 38400 bps.
10. On the Communication menu, click Input User Defined Keypad Starting Screen.
11. The Editor displays a message asking you to confirm the new setting. Before you click OK, on the keypad,
go to MENU, select PC LINK, press ENTER and then wait for few seconds. Then click YES in the
confirmation dialog box to start downloading.
