Chapter 3 UnpackingC2000 Plus
3-9

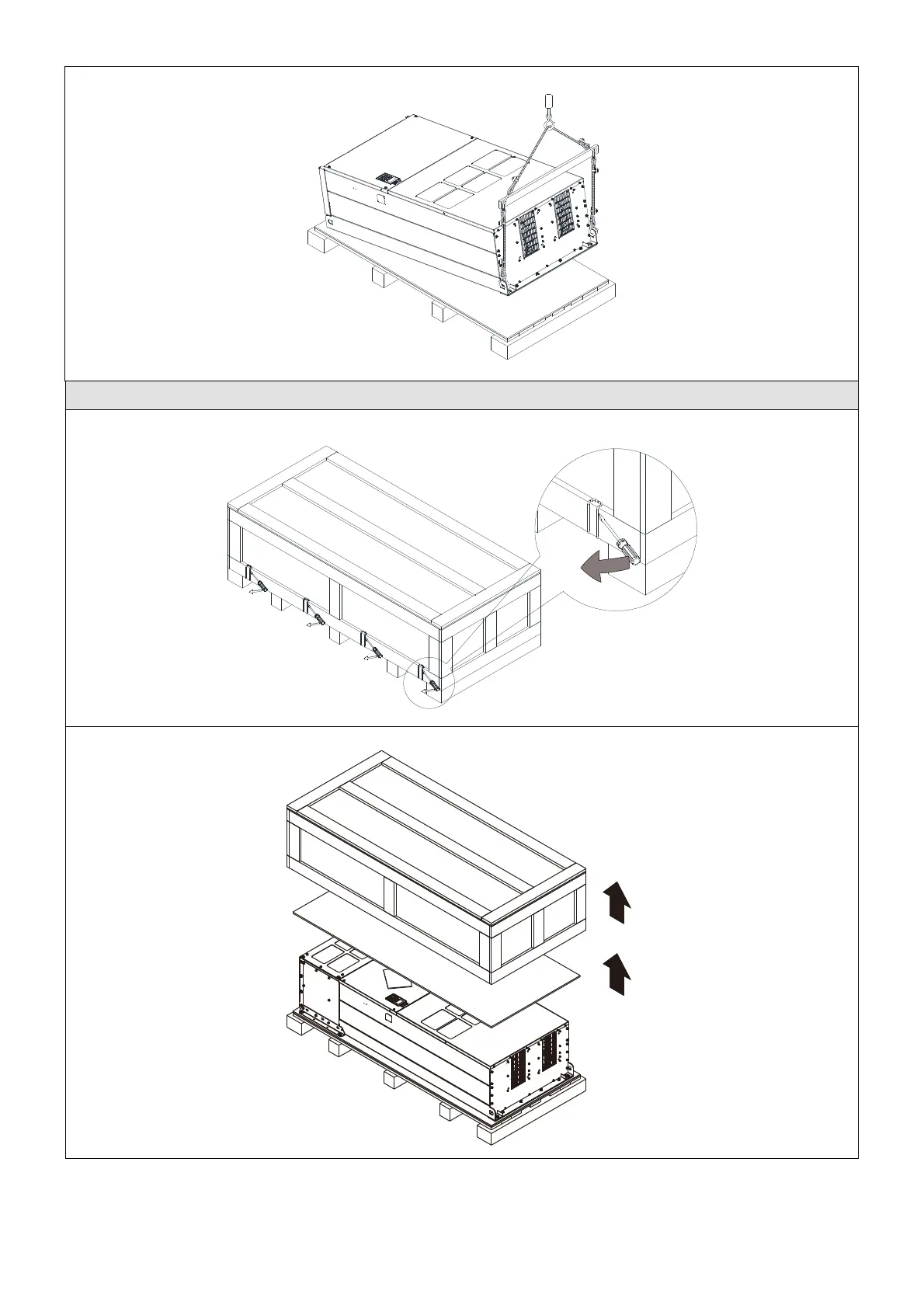

Lift the drive by hooking the lifting hole. It is now ready for installation.
Unpacking 2 (VFDXXXC43C-21)
Remove the eight buckles fixed on the crate with a flat-head screwdriver, see the figure below.
Remove the cover, take out the EPEs and the manual.
Figure 3-28
Figure 3-29
Figure 3-30
