Delta C2000 Plus Series User Manual

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-02-33

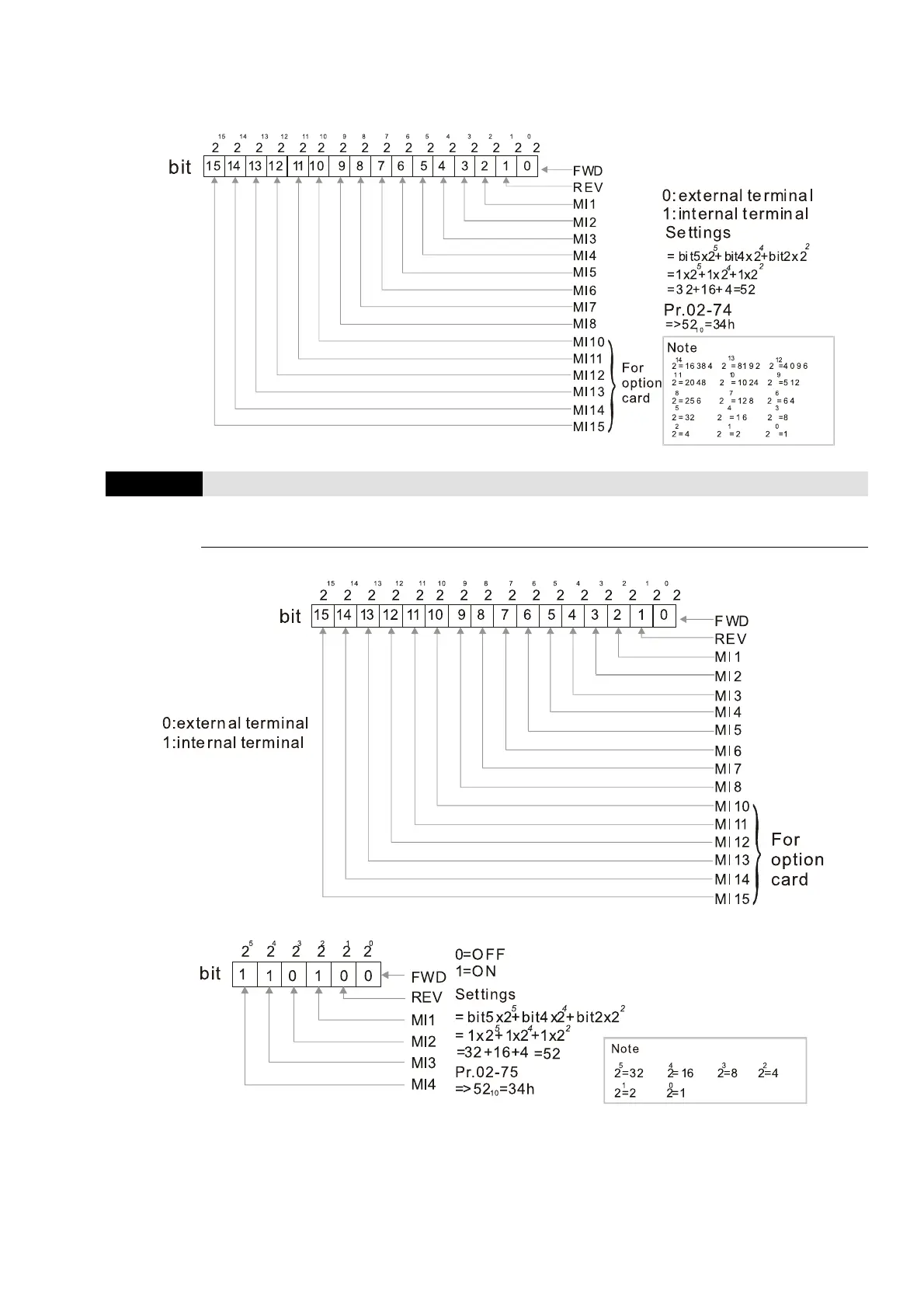

 Setting method: convert the binary 12bit number to hexadecimal number for input.
Example: if the MI1, MI3, MI4 are virtual terminals, Pr.02-74=34h.

02-75
Internal Multi-Function Output Terminal Selection
Default: 0000h
Settings 0000–FFFFh
 Sets the internal terminal action (ON / OFF) through digital keypad, communication or PLC.
 Example: Set Pr.02-75=34h to activate MI1, MI3 and MI4.
 The Local / Remote options on the digital keypad have the lowest priority.
 When the PLC uses the entity DI, the corresponded function of original DI can still be triggered
through virtual terminals.
 Pr.02-74 and Pr.02-75 can both be changed during RUN.
