Delta C2000 Plus Series User Manual

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-06-22
 Status 3: The drive is in STOP; Pr.06-48 ≠ 0; Pr.07-02 ≠ 0
When the drive starts, it executes Pr.06-48 first, and then executes Pr.07-02 (DC brake). The DC
brake current level in this state includes two parts: one is 20 times the Pr.06-47 setting value in
Pr.06-48 setting time; the other is the Pr.07-02 setting value in Pr.07-01 setting time. The total DC
brake time T = Pr.06-48 + Pr.07-02.

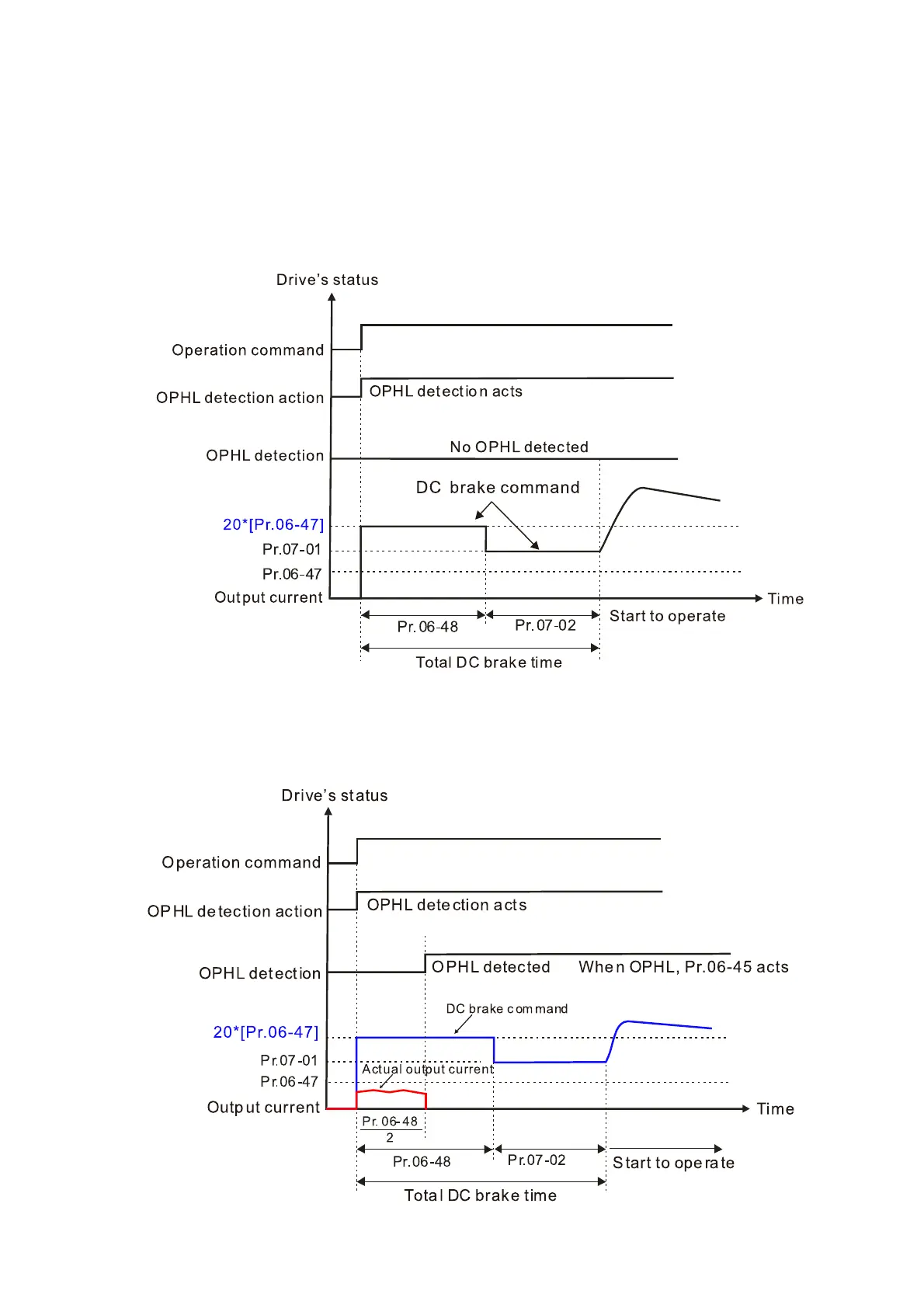

Status 3-1: Pr.06-48 ≠ 0, Pr.07-02 ≠ 0 (No OPHL detected before operation)
Status 3-2: Pr.06-48≠0, Pr.07-20≠0 (OPHL detected before operation)
In this period, if an OPHL occurs within the time for Pr.06-48, the drive executes the Pr.06-45
setting after the drive starts counting for half the time of Pr.06-48.

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
