Delta C2000 Plus Series User Manual

Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-06-30

06-71
Low Current Setting Level
Default: 0.0
Settings 0.0–100.0%

06-72
Low Current Detection Time
Default: 0.00
Settings 0.00–360.00 sec.

06-73
Low Current Action
Default: 0
Settings 0: No function
1: Fault and coast to stop
2: Fault and ramp to stop by the second deceleration time
3: Warn and continue operation
 The drive operates according to the setting for Pr.06-73 when the output current is lower than the
setting for Pr.06-71 and when the time of the low current exceeds the detection time for Pr.06-72.
Use this parameter with the multi-function output terminal = 44 (low current output).
 The low current detection function does not execute when the drive is in sleep or standby status.
 Sets Pr.06-71 low current level according to the drive’s rated current, the equation is Pr.00-01
(drive’s rated current) x Pr.06-71 (low current setting level)% = low current detection level (A). The
drive changes the setting for Pr.00-01 (rated current) according to the setting for Pr.00-16 (load
selection).

06-86
PTC Type (Applied to 230V / 460V Models)
Default: 0
Settings 0: PTC
1: KTY84-130
 When using KTY84-130, a divider resistance (2 kΩ, power > 1/4W, ±0.1%) is needed.

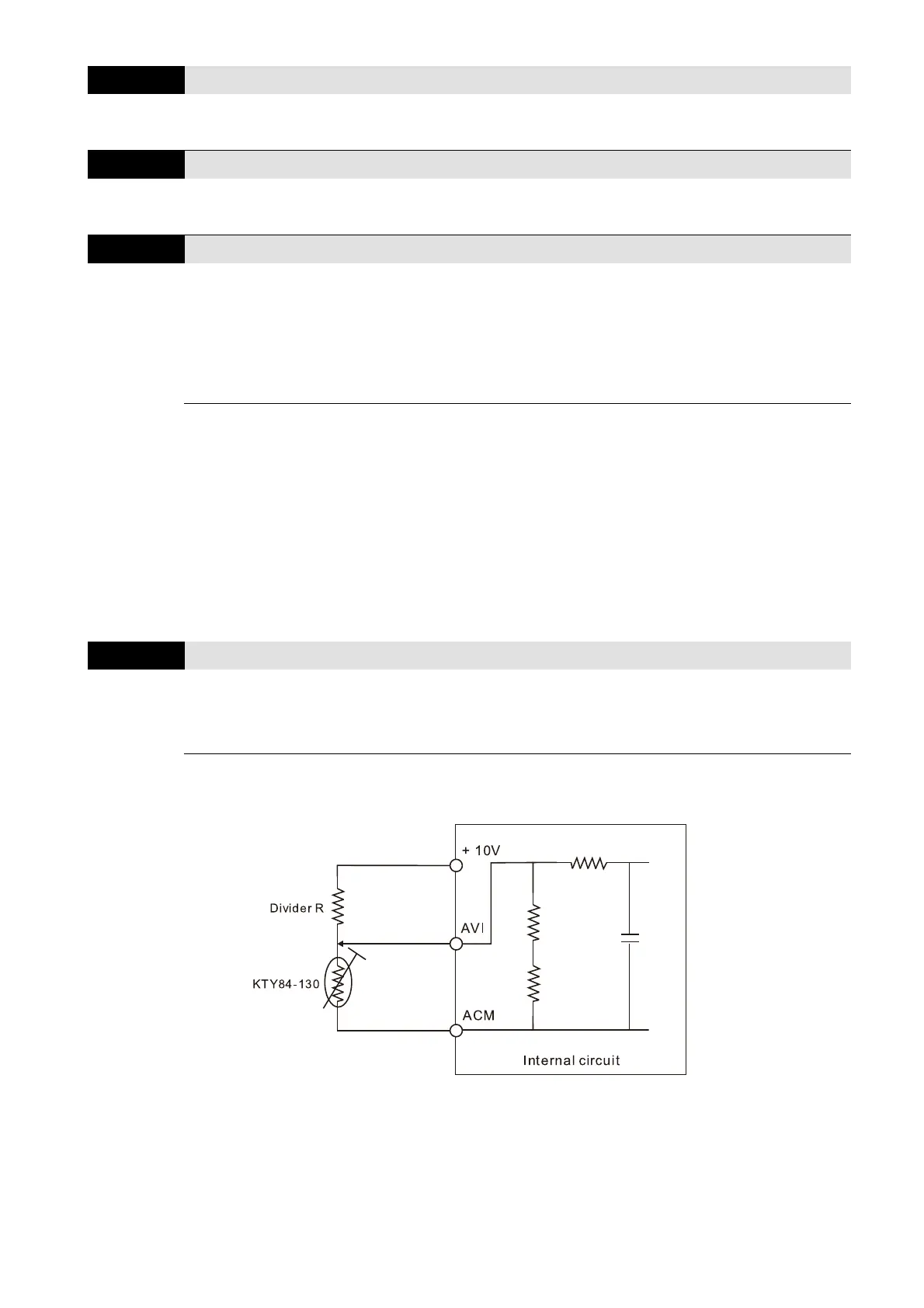

 Wiring diagram is as below:

Delta C2000 Plus Series Specifications

General

Altitude	Up to 1000m without derating
Communication	CANopen
Output Current	2.5A
Protection Features	Overcurrent, Overvoltage, Overtemperature
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	95% RH (non-condensing)
