Delta C2000 Plus Series

Chapter 12 Description of Parameter SettingsC2000 Plus
12.2-8
12-2-2 Permanent-Magnet Synchronuous Motor, Field-Oriented Control and with Encoder
Adjustment Procedure (PM FOCPG, Pr,00-11 = 4)
(Applicable for C2000 Plus firmware V3.05 and later)
 Control diagram

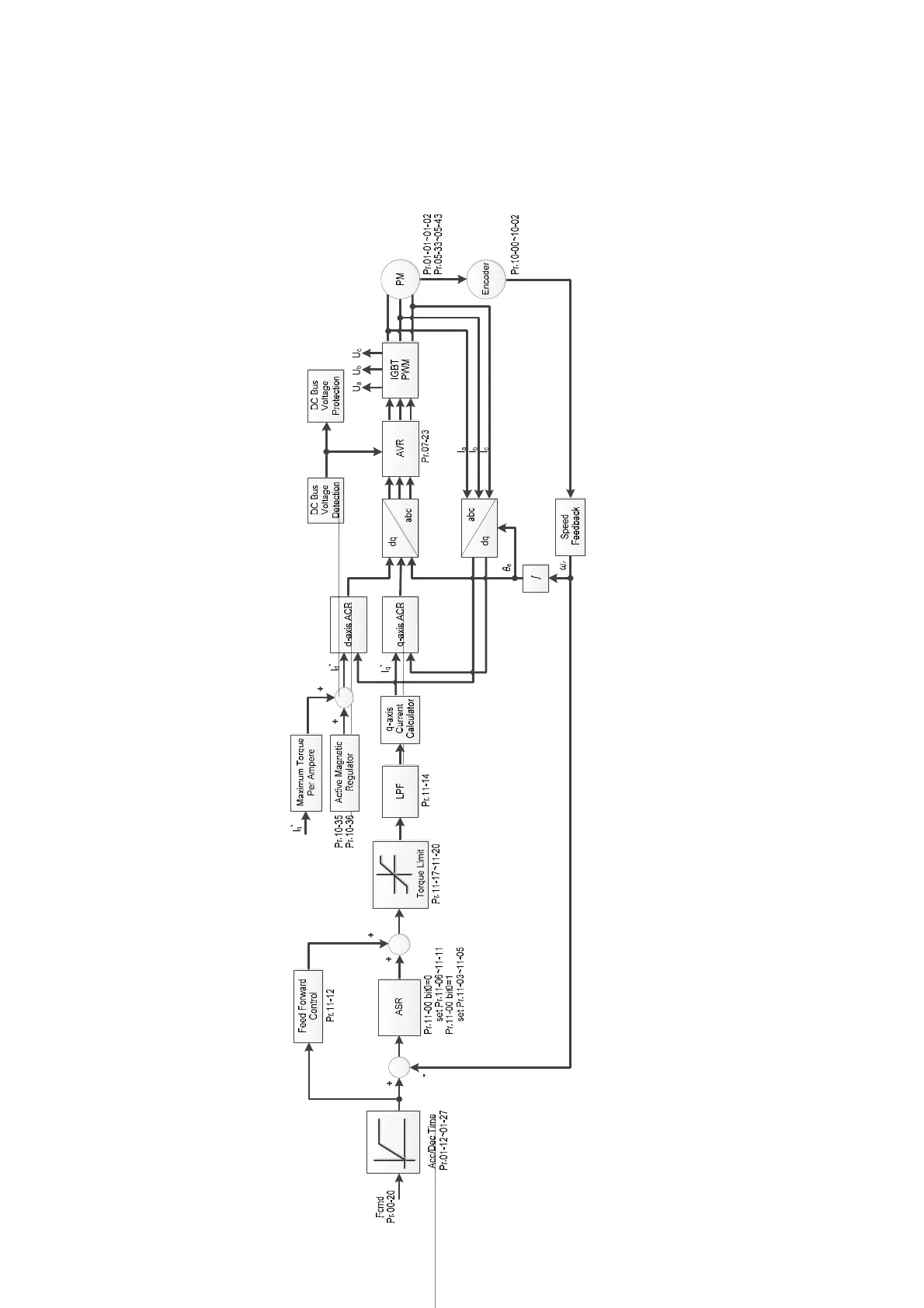

(A) PM FOCPG control diagram
