Delta C2000 Plus Series User Manual

Chapter 14 Fault Codes and DescriptionsC2000 Plus
14-27

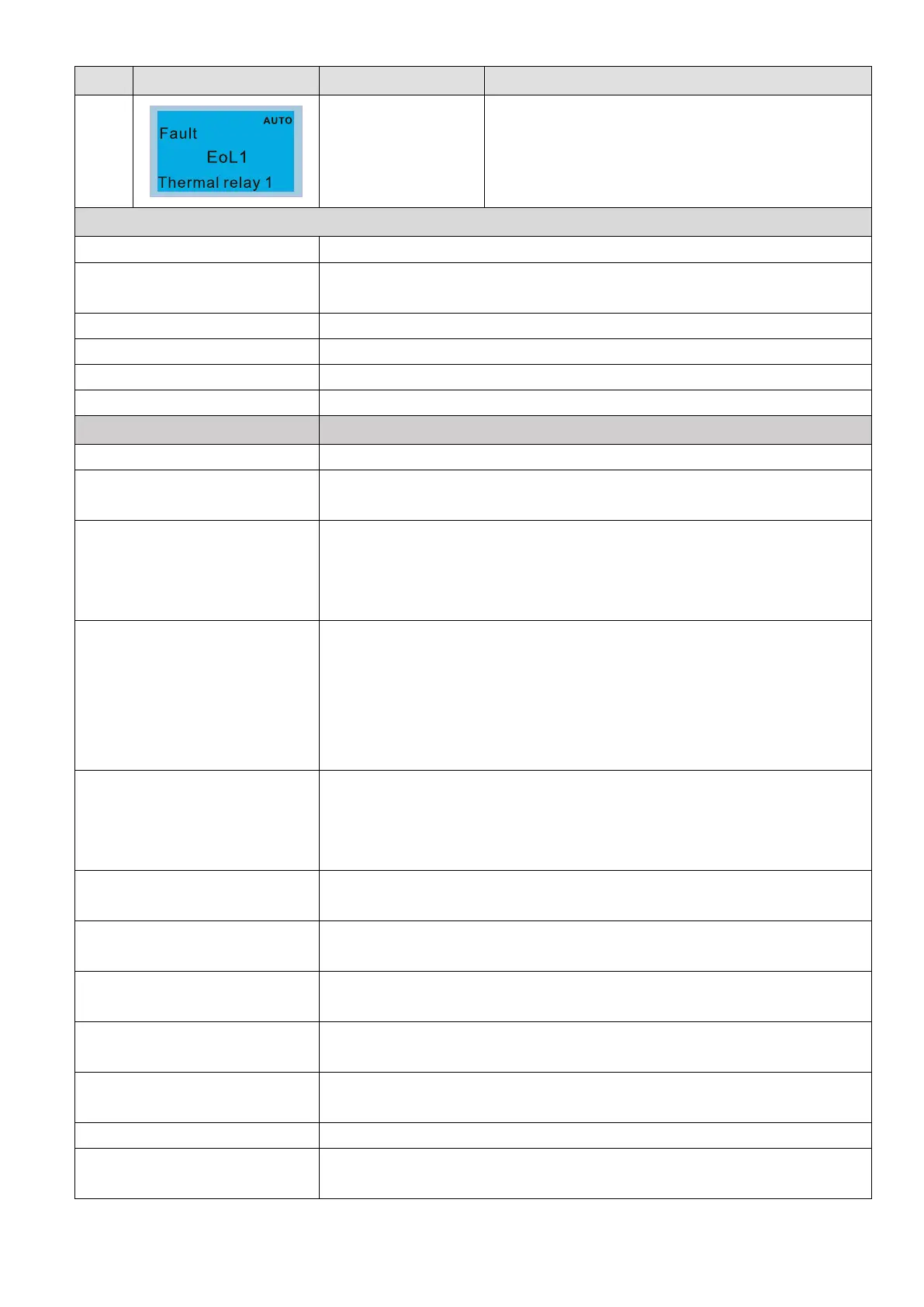

ID* Display on LCD Keypad Fault Name Fault Descriptions
22
Electronics thermal
relay 1 protection
(EoL1)
Electronics thermal relay 1 protection. The drive coasts
to stop once this fault occurs.
Action and Reset
Action condition Start counting when output current > 105% of motor 1 rated current
Action time
Pr.06-
14 (if the output current is larger than 105% of motor 1 rated current again
within 60 sec., the counting time reduces and is less than Pr.06-14)
Fault treatment parameter
N/A
Reset method
Manual reset
Reset condition
Reset in 5 sec. after the fault is cleared
Record
Yes
Cause Corrective Actions
The load is too large
Reduce the load.
Accel./Decel. time or the working
cycle is too short
Increase the setting values for Pr.01-12–01-19 (Accel./Decel time)
V/F voltage is too high
Adjust the settings for Pr.01-01–01-08 (V/F curve), especially
the setting value
for the mid-point voltage (if the mid-point voltage is set too low, the
load capacity
decreases at low speed).
Refer to the V/F curve selection of Pr.01-43.
Overload during low-speed
operation.
When using a general motor, even
it operates below rated current, an
overload may still occur during
low-speed operation.
Decrease low-speed operation time.
Replace the drive with a dedicated to VFD model.
Increase the motor capacity.
When using motor drive dedicated
motors, Pr. 06-13=0 (electronic
thermal relay selection motor 1 =
inverter motor)
Pr.06-13 = 1 e
lectronic thermal relay selection motor 1 = standard motor (motor
with fan on the shaft).
Incorrect value of electronic
thermal relay
Reset to the correct motor rated current.
The maximum motor frequency is
set too low
Reset to the correct motor rated frequency.
One drive to multiple motors
Set Pr.06-13 = 2 electronic thermal relay selection motor 1= disable
, and install
thermal relay on each motor.
Check if the setting for stall
prevention is correct.
Set the stall prevention to the proper value.
Torque compensation is too large
Adjust the torque compensation (refer to Pr.07-
26 torque compensation gain)
until the current reduces and the motor does no stall.
Motor fan fault
Check the status of the fan, or replace the fan.
Unbalanced three-phase
impedance of the motor
Replace the motor.
