Delta C2000 Plus Series User Manual

Chapter 6 Control TerminalsC2000 Plus
6-2

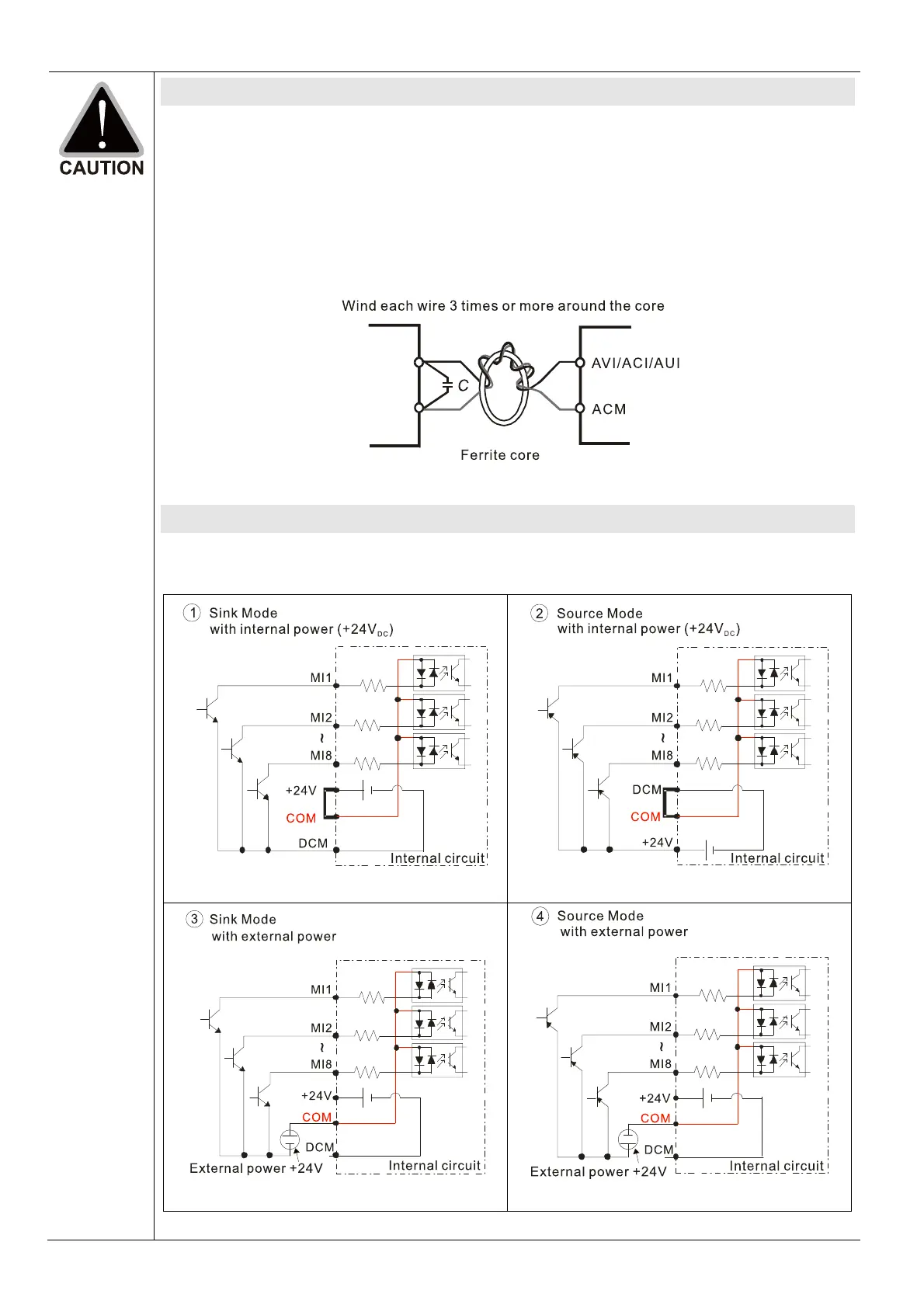

Analog input terminals (AVI, ACI, AUI, ACM)
 Analog input signals are easily affected by external noise. Use shielded wiring and
keep it as short as possible (< 20 m) with proper grounding. If the noise is inductive,
connecting the shield to the ACM terminal can reduce interference.
 Use twisted-pair wire for weak analog signals.
 If the analog input signals are affected by noise from the AC motor drive, connect a
capacitor and a ferrite core as shown in Figure 6-1.
Figure 6-1
Contact input terminals (FWD, REV, MI1–MI8, COM)
 The “COM” terminal is the common side of the photo-coupler. Any of wiring method,
the “common point” of all photo-coupler must be the “COM”.
Figure 6-2 Figure 6-3
Figure 6-4 Figure 6-5
