Chapter 7 Optional AccessoriesCP2000
7-46
Output AC reactor Delta
part #
A B C D1*D2 H G1 G2 PE D
DR038LP639 180 205 170 6*12 115 85 122 M4
DR045LP541 235 245 155 7*13 85 / 176 M6
Screw length must
not interfere with the
mounting holes
Unit: mm

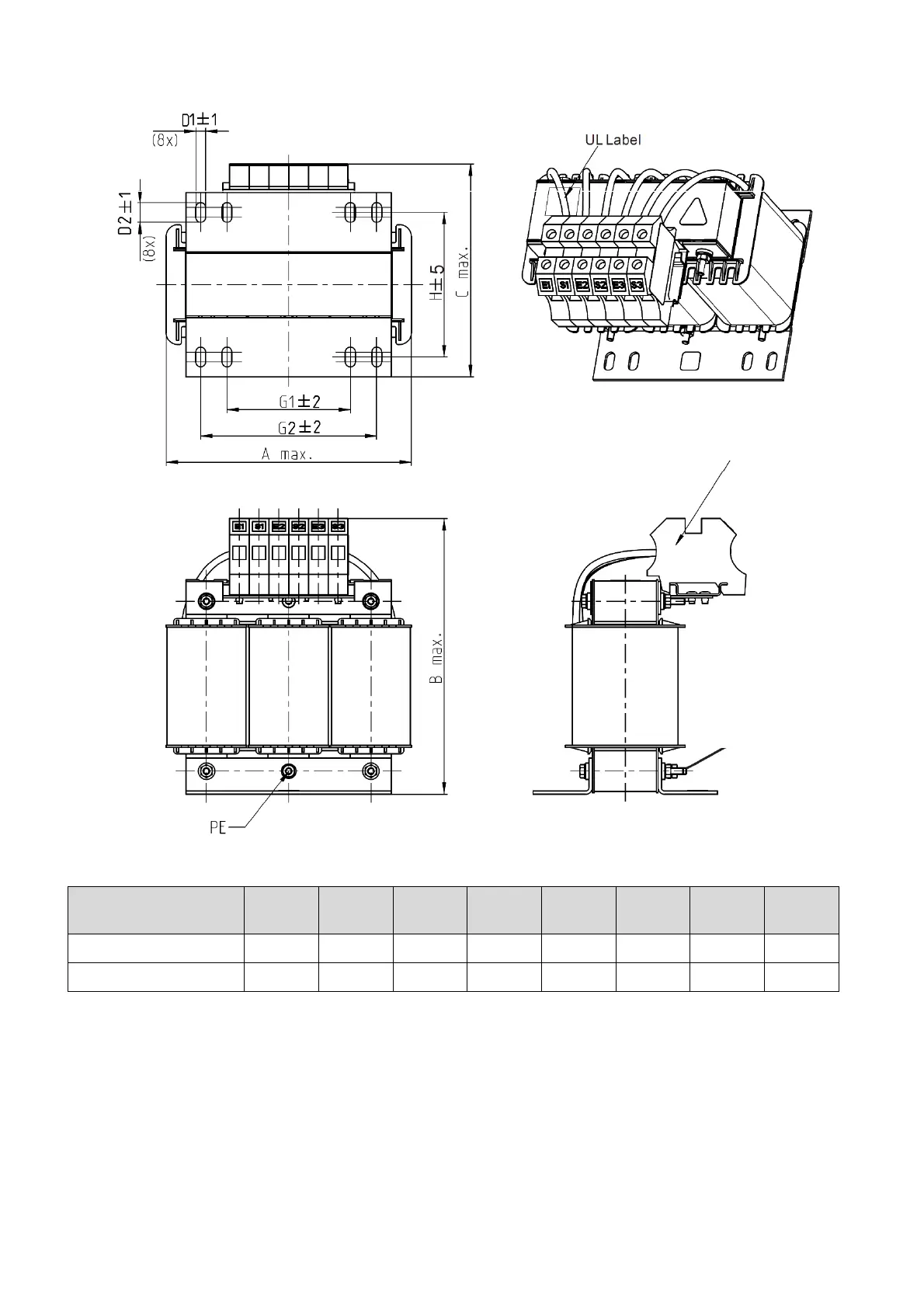

Figure 7-32
Table 7-55
Terminals: 16mm
2
Tightening torque: 1.2–1.4Nm
