Delta CP2000 Series

Chapter 7 Optional AccessoriesCP2000
7-47
Output AC reactor Delta
part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T
DR060LP405 240 228 215 44 170 163 110 7*13 152 176 97 20*3
DR073LP334 250 235 235 44 186 174 115 11*18 160 190 124 20*3
DR091LP267 250 240 235 44 186 174 115 11*18 160 190 124 20*3
DR110LP221 270 260 245 50 192 175 115 10*18 176 200 106 20*3
Unit: mm

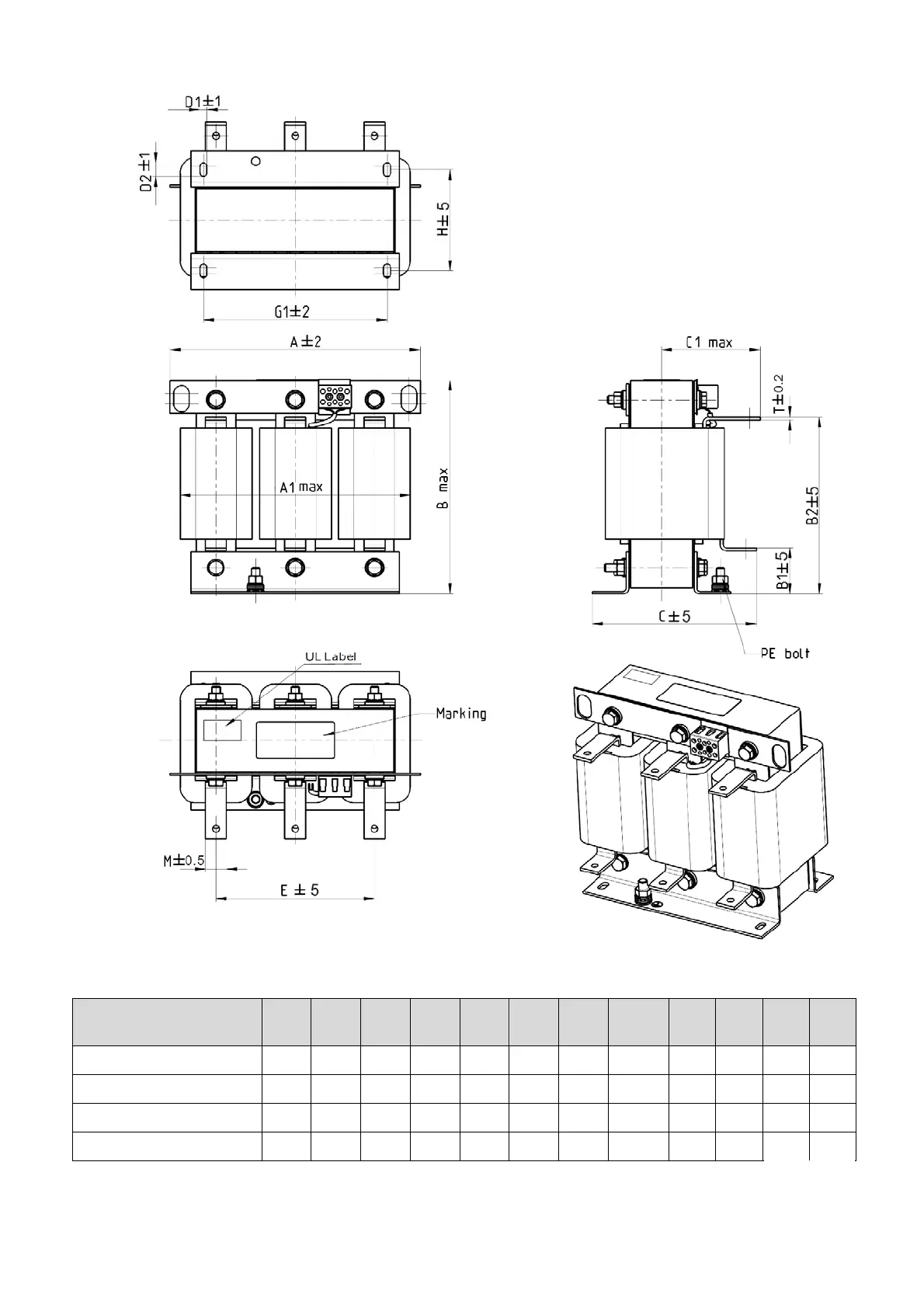

Figure 7-33
Table 7-56
