Delta CP2000 Series User Manual

Chapter 7 Optional AccessoriesCP2000
7-52

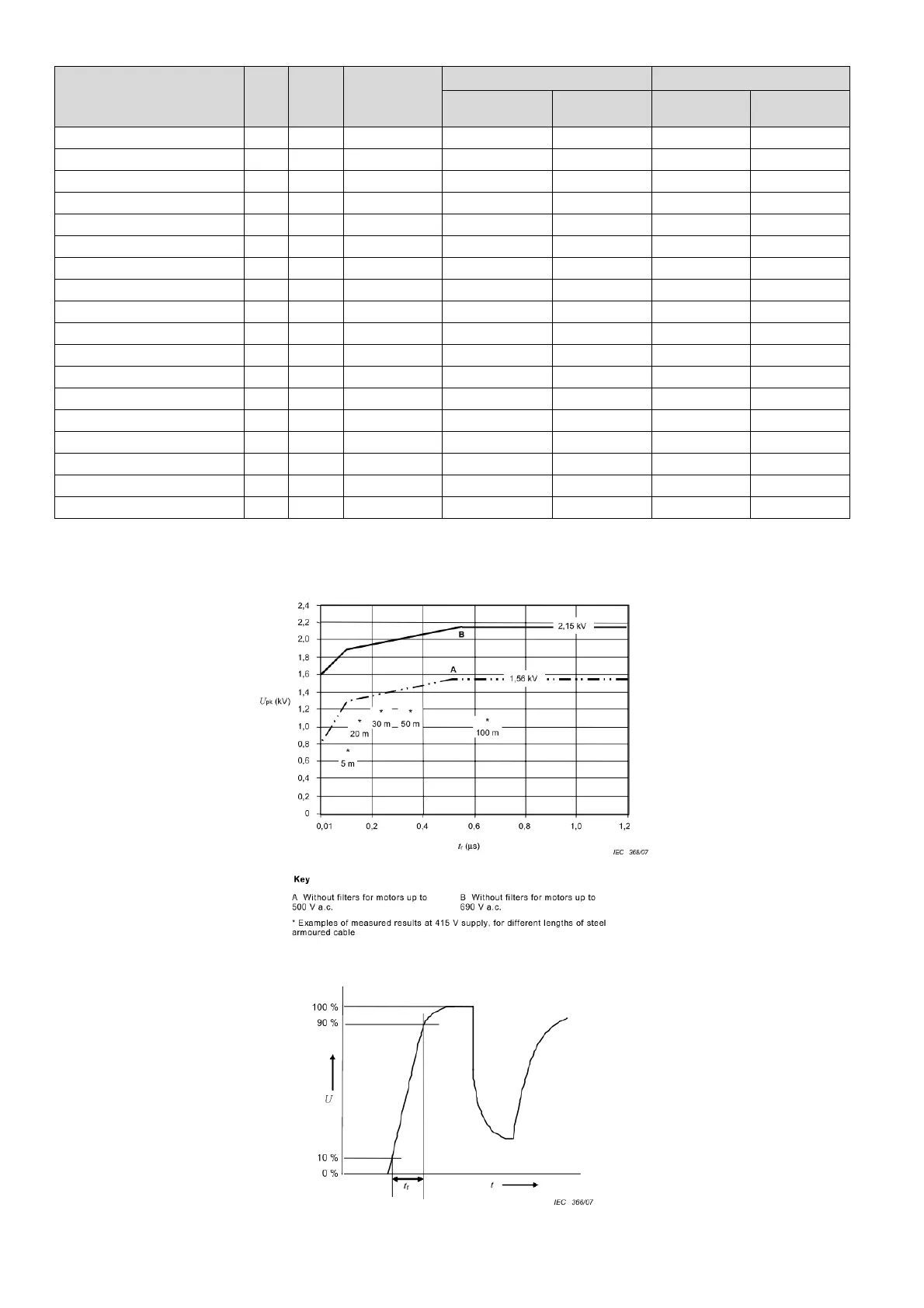

690V Model kW HP
Rated current
(Arms)
Normal Duty
Without AC output reactor With AC output reactor
Shielded Cable
[meter]
Non-shielded
cable [meter]
Shielded
Cable [meter]
Non-shielded
cable [meter]
VFD185CP63A-21 18.5 25 20 20 35 30 45
VFD220CP63A-21 22 30 24 20 35 30 45
VFD300CP63A-21 30 40 30 20 35 45 60
VFD370CP63A-21 37 50 36 20 45 60 75
VFD450CP63A-00/21 45 60 45 20 45 60 75
VFD550CP63A-00/21 55 75 54 20 45 60 100
VFD750CP63A-00/21 75 100 67 20 45 60 100
VFD900CP63A-00/21 90 125 86 20 45 75 100
VFD1100CP63A-00/21 110 150 104 20 45 75 100
VFD1320CP63A-00/21 132 175 125 20 45 75 100
VFD1600CP63A-00/21 160 215 150 20 45 90 100
VFD2000CP63A-00/21 200 270 180 20 45 90 100
VFD2500CP63A-00/21 250 335 220 20 45 90 100
VFD3150CP63A-00/21 315 425 290 20 45 90 100
VFD4000CP63A-00/21 400 530 350 20 45 90 100
VFD4500CP63A-00/21 450 600 385 20 45 90 100
VFD5600CP63A-00/21 560 745 465 20 45 75 90
VFD6300CP63A-00/21 630 850 675 20 45 75 90
※ 690V output motor cable length needs to comply with IEC 60034-25.
Requirements on insulation level of Curve B motor
The t
r
is defined as:
Table 7-62
Figure 7-36
Figure 7-37
